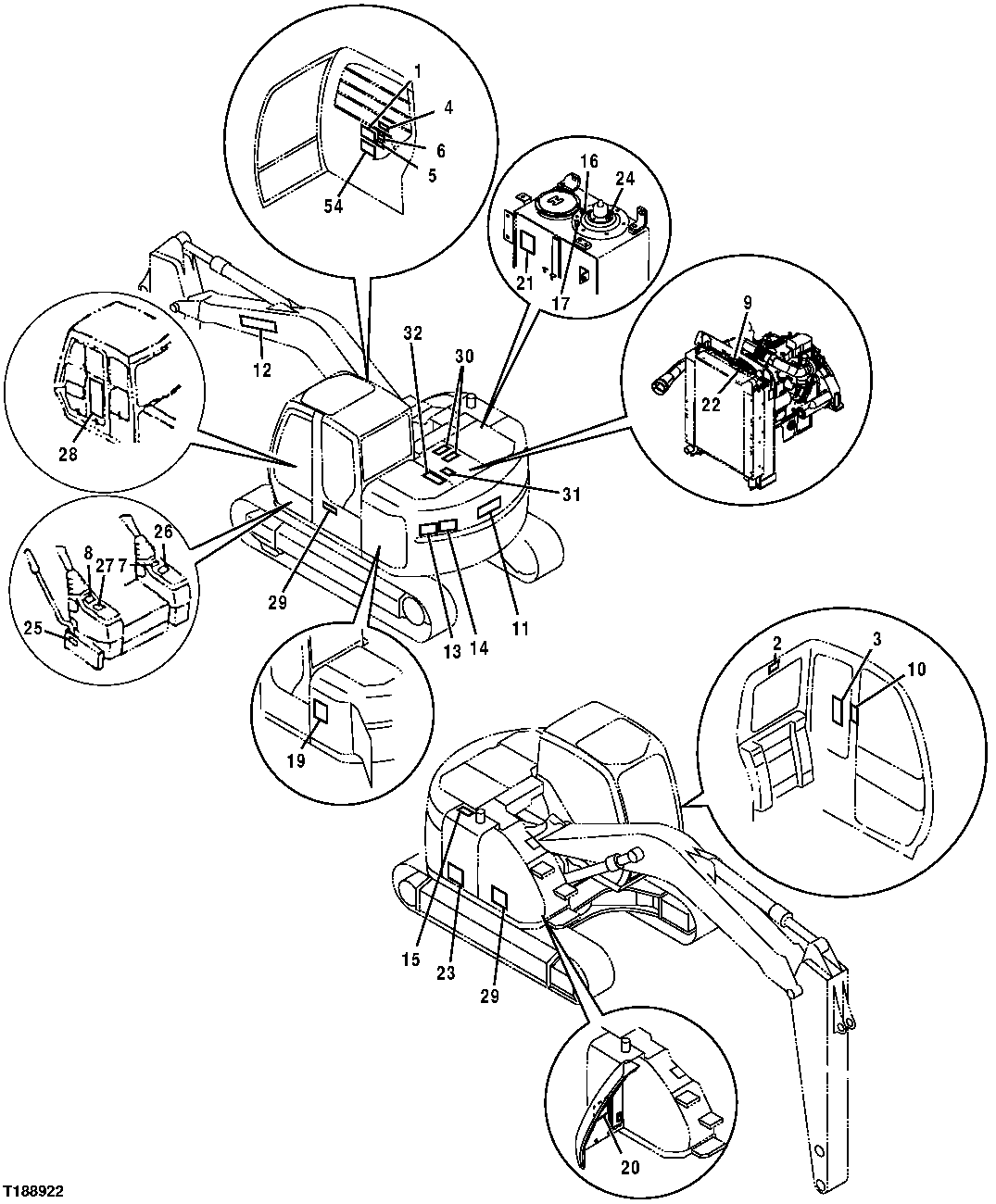

Запчасти John Deere 35D 57 - LABELS AND DECALS 1320 VEHICLE FINISH AND TRIM

1

T200476

Label

ENGINE OPERATION

1шт.

2

T187535

Label

CAUTION (WINDOW LOCK) (FRONT)

1шт.

3

T200342

Label

LIFT CAPACITY

1шт.

4

T146668

Safety Sign

WARNING (CRUSHING ARTICULATION)

1шт.

5

T159887

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

6

T146667

Safety Sign

DANGER (ELECTROCUTION)

1шт.

7

Label

(SUB T201519 ) (SUB FOR T159842, T HIS APPLICATION)(RIGHT CONTROL LEVE R - SAE PATTERN) (WHITE BACKGROUND)

1шт.

8

Label

(SUB T201519 ) (SUB FOR T159841, T HIS APPLICATION)(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

9

T146671

Safety Sign

CAUTION (PRESSURIZED) (RADIATOR CAP)

1шт.

10

T190393

Label

IMPORTANT (BREAK WINDOW FOR SECONDARY EXIT)

1шт.

11

T184759

Label

(DEERE - ON COUNTERWEIGHT)

1шт.

12

T184023

Label

(DEERE - ON BOOM)

2шт.

13

T145893

Safety Sign

WARNING (STAY CLEAR)

2шт.

14

JD5909

Reflector

RED (COUNTERWEIGHT)

2шт.

15

T79632

Label

(DIESEL ONLY)

1шт.

16

T101942

Label

HYDRAULIC OIL ONLY

1шт.

17

P63448

Label

PUMP BLEED INFORMATION

1шт.

19

R56902

Label

AIR CLEANER

1шт.

20

T208026

Label

(SUB FOR T200676)PERIODIC MAINTENANCE

1шт.

21

T149983

Label

IMPORTANT (OIL LEVEL)

1шт.

22

3088018

Label

COOLING SYSTEM

1шт.

23

T200344

Label

(MODEL DESIGNATION) (225CLC RTS)

2шт.

24

T187710

Label

CAUTION (HYDRAULIC RESERVOIR OIL CAP)

1шт.

25

4299059

Label

(SUB FOR T138886)HYDRAULIC LOCKOUT

1шт.

26

4288417

Label

IGNITION SWITCH

1шт.

27

4288971

Label

(SUB FOR AT155729)ETHER AID / MOTION CANCEL

1шт.

28

2050226

Label

VANDAL COVER INSTALLATION INSTRUCTIONS

1шт.

29

JD5765

Label

LEAPING DEER (UP)

2шт.

30

T25838

Mat

ANTI - SKID

1шт.

31

H21259

Mat

ANTI - SKID

5шт.

32

H21259

Mat

(SUB FOR T161541)ANTI - SKID

3шт.

54

T201519

Label

(SUB FOR T159842 AND T 159841)OPERATOR PATTERN

1шт.
