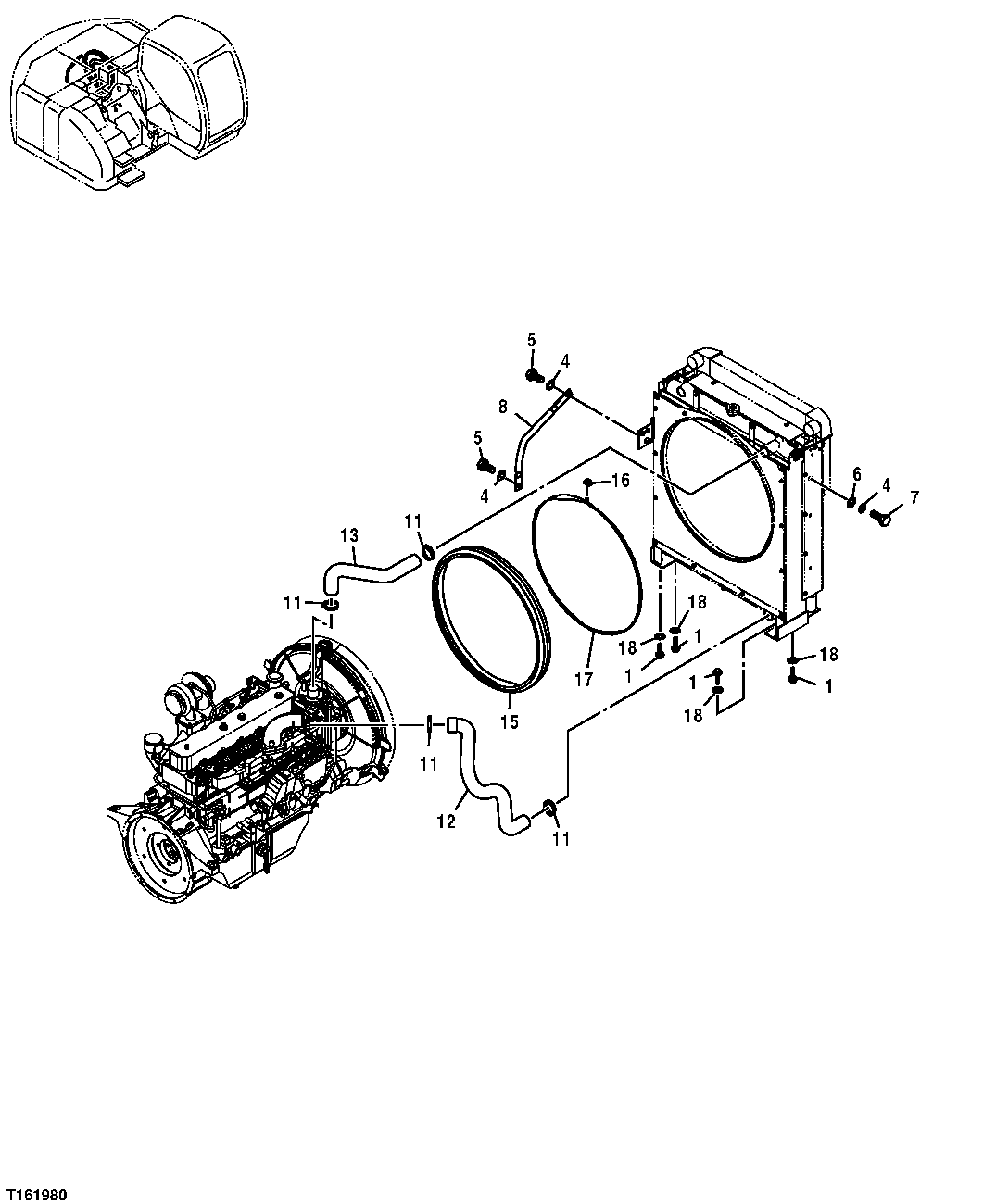

Запчасти John Deere 35D 65 - RADIATOR HOSES 0511 RADIATOR & FAN SHROUD

1

19M7493

Cap Screw

M12 X 40 (SUB FOR J011240)

4шт.

4

12H294

Lock Washer

5/8" (SUB FOR A590916)

3шт.

5

19M8035

Cap Screw

M16 X 35 (SUB FOR J921635)

2шт.

6

24M7053

Washer

17 X 30 X 3 mm (SUB FOR A590116)

1шт.

7

19M7489

Cap Screw

M16 X 45 (SUB FOR J921645)

1шт.

8

3091330

Latch

1шт.

11

TY22485

Hose Clamp

(SUB FOR 4357297)

4шт.

12

3088201

Radiator Hose

1шт.

13

3102063

Hose

(SUB FOR 3090923)

1шт.

15

4425747

Isolator

1шт.

16

4426044

Lock

1шт.

17

4426045

Band

1шт.

18

24M7345

Washer

13.500 X 24 X 2.500 mm (SUB FOR J222012)

4шт.
