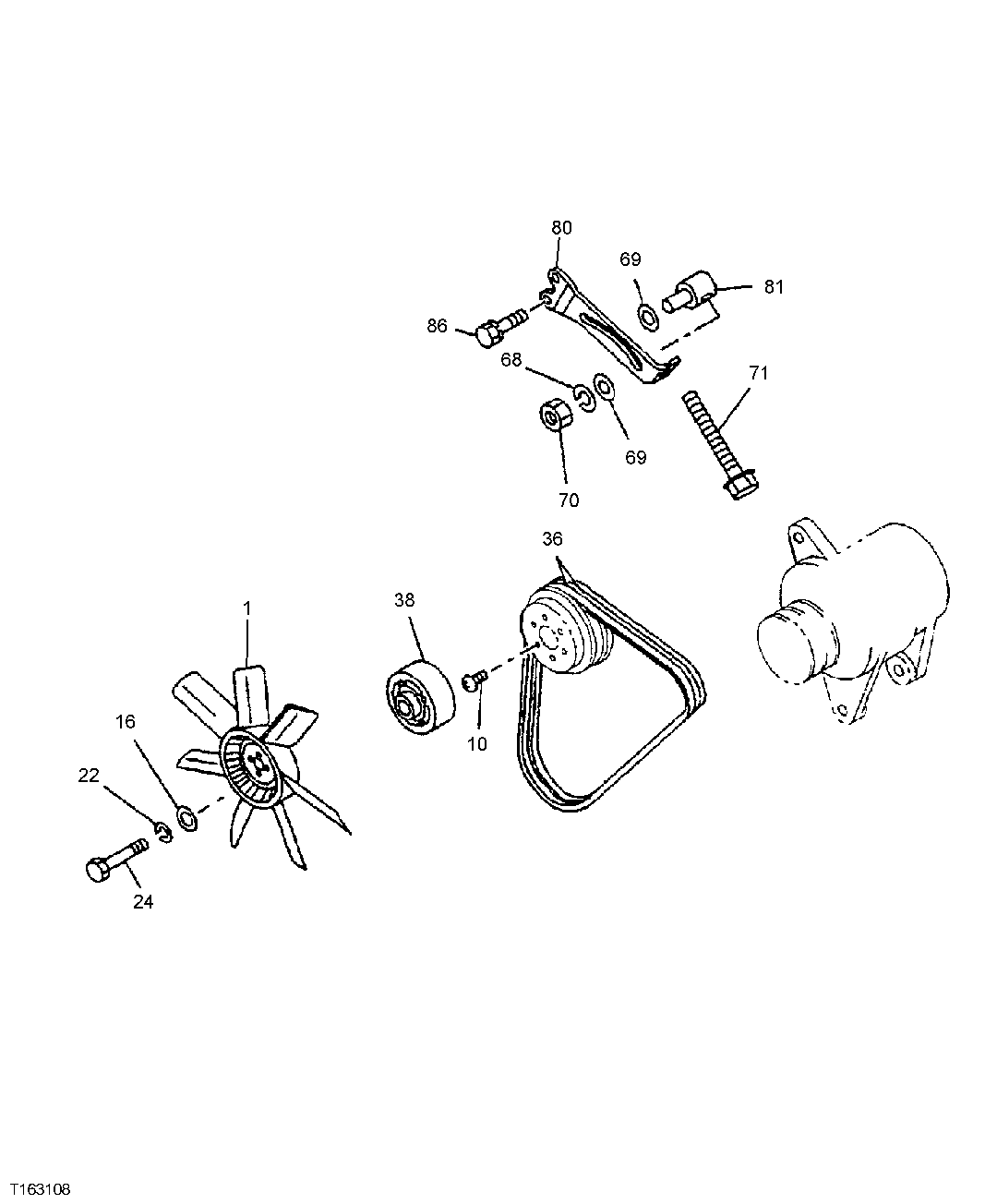

Запчасти John Deere 35D 54 - ENGINE FAN AND FAN BELT 0429 FAN DRIVE (DAMPER, IDLER, PULLEYS, AND BELT)

1

1136603281

Fan

DIAMETER 650MM, 7 SUB FOR 1136603280 Blade Suction

1шт.

10

1099815110

Screw

M6 X 10 SUB FOR 9034906100

2шт.

16

0916147080

Washer

I.D. 8MM, O.D. 22MM SUB FOR 9091647080

4шт.

22

1099851770

Washer

I.D. 8.2MM

4шт.

24

1090440751

Bolt

4шт.

36

4632728

V-Belt

2PK Fan and Drive SUB FOR 4470951 OR 4395564

1шт.

38

1136420540

Spacer

T=75

1шт.

68

1099851890

Washer

1шт.

69

AT264144

Washer

2шт.

70

9991105120

Nut

M12

1шт.

71

1090091141

Bolt

M10 X 155

1шт.

80

1136741192

Plate

1шт.

81

1136741610

Plate

M12 X 59

1шт.

86

0286510400

Bolt

M10 X 40 Flange SUB FOR 0286810400

2шт.
