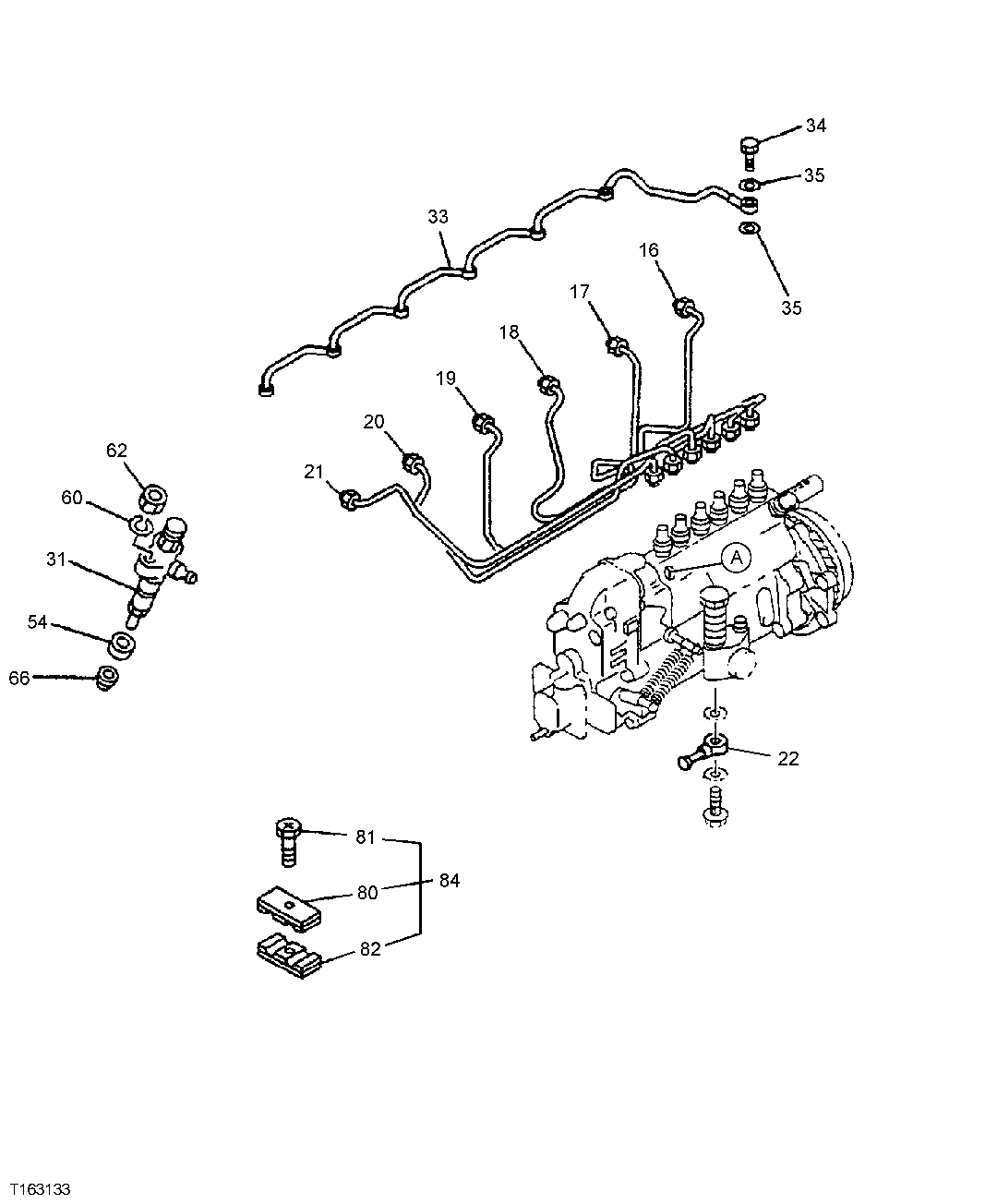

Запчасти John Deere 35D 42 - FUEL INJECTION LINES AND NOZZLE 0413 FUEL INJECTION SYSTEM

16

1154158471

Line

(SUB FOR 1154158470)

1шт.

17

1154158481

Line

(SUB FOR 1154158480)

1шт.

18

1154158491

Line

(SUB FOR 1154158490)

1шт.

19

1154158501

Line

(SUB FOR 1154158500)

1шт.

20

1154158512

Line

(SUB FOR 1154158511)

1шт.

21

1154158522

Line

(SUB FOR 1154158521)

1шт.

22

AT264112

Oil Tube

3шт.

31

8972221700

Injection Nozzle

6шт.

33

1154124711

Line

1шт.

34

AT263948

Eyebolt

M8 X 18

1шт.

35

1096300820

Gasket

2шт.

54

9153390510

Dust Shield

6шт.

60

1099851770

Washer

(I.D. 8.2MM) (SUB FOR AT255018)

12шт.

62

14M7273

Nut

M8 M8 (SUB FOR 9091105080)

12шт.

66

1153150131

Gasket

(I.D. 9.2MM, O.D. 19MM, T=7.3)

6шт.

80

9154196130

Clip

6шт.

81

8944280070

Bolt

M5 X 20

6шт.

82

9154196140

Clip

6шт.

84

Clip

(SUB FOR 9154196120 ) (SUB 9154196130, 91541 96140, 19M7502 AND 12M7064)( 5154190131 NLA)

6шт.

9154196130

Clip

6шт.

9154196140

Clip

6шт.

19M7502

Cap Screw

M5 X 25

6шт.
