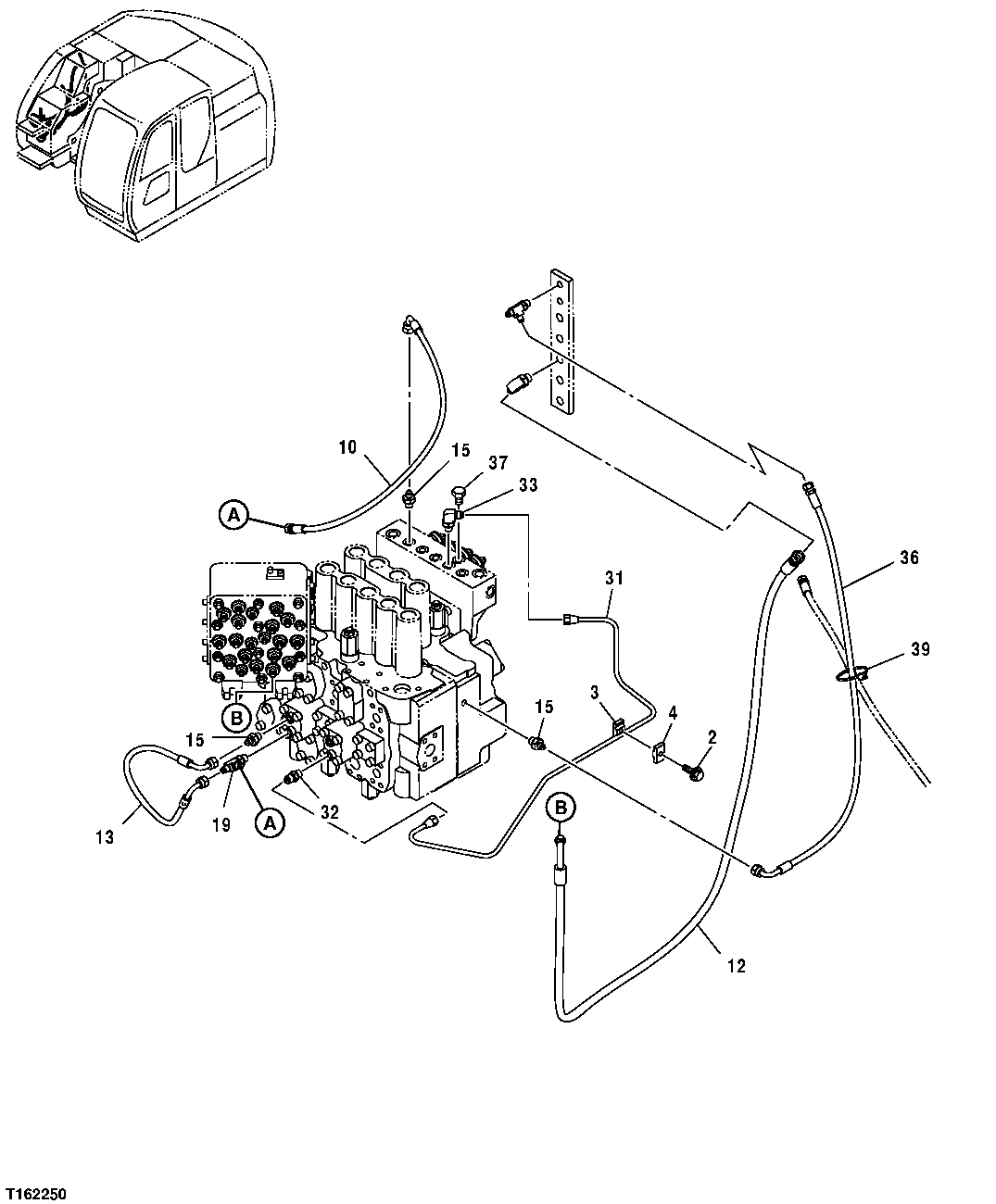

Запчасти John Deere 35D 249 - PILOT LINES (HYDRAULIC OIL TANK TO CONTROL VALVE) 3363 LINES, HOSES, AND FITTINGS

2

19M7163

Cap Screw

M8 X 25 (SUB FOR J010825)

1шт.

3

9735305

Clamp

(SUB FOR AP33637)

1шт.

4

9735306

Clamp

(SUB FOR AP33638)

1шт.

10

4427127

Hydraulic Hose

1шт.

12

4448938

Hydraulic Hose

1шт.

13

4427351

Hydraulic Hose

1шт.

15

A852122

Adapter Fitting

3шт.

A852122

Adapter Fitting

3шт.

19

A852422

Tee Fitting

1шт.

M800650

Packing

1шт.

31

3091686

Oil Line

1шт.

32

4255304

Fitting

1шт.

M800650

Packing

1шт.

33

4293950

Fitting

1шт.

4293950

Fitting

1шт.

36

4444735

Hydraulic Hose

(SUB FOR 4451830 OR TH4444735)

1шт.

37

A885002

Plug

1шт.

M800650

Packing

(SUB FOR 957366)

1шт.

39

H77698

Tie Band

1шт.
