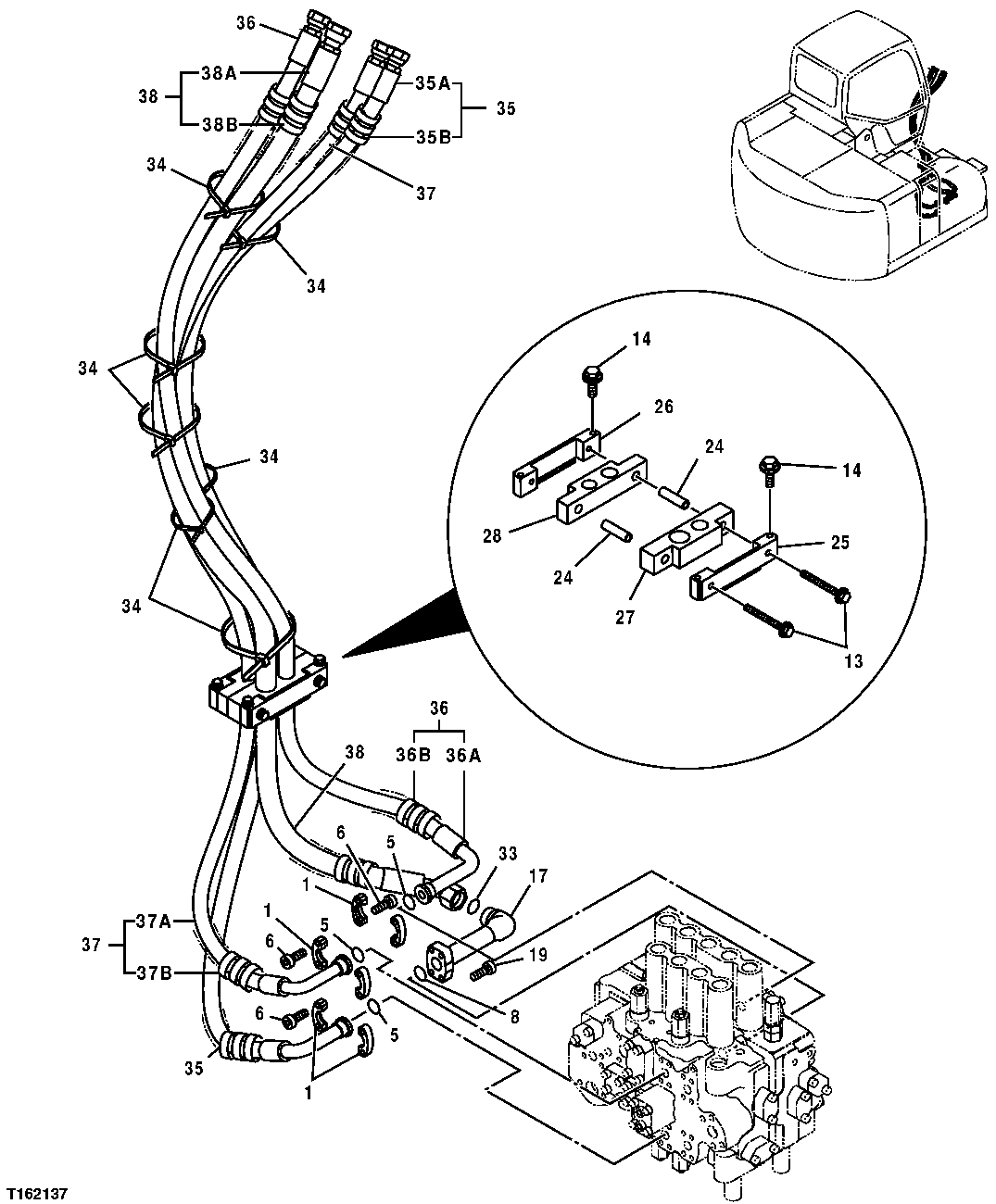

Запчасти John Deere 35D 235 - HYDRAULIC LINES (CONTROL VALVE TO ARM AND BUCKET LINES ON BOOM) 3363 LINES, HOSES, AND FITTINGS

1

R29424

Flange Fitting

(SUB FOR 986910)

6шт.

5

T59014

O-Ring

(SUB FOR 971489)

3шт.

6

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

8

966993

O-Ring

1шт.

13

19M8166

Cap Screw

M10 X 110 (SUB FOR 4282721)

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

17

9756369

Oil Line

1шт.

19

J781035

Bolt

4шт.

24

4454729

Spacer

2шт.

25

8084181

Bracket

1шт.

26

8084182

Bracket

1шт.

27

3092170

Isolator

1шт.

28

3092171

Isolator

1шт.

33

T76938

O-Ring

(SUB FOR 4187238)

1шт.

34

H77698

Tie Band

7шт.

35

Hydraulic Hose

( 9205398 NLA)

1шт.

35A

4457577

Hydraulic Hose

1шт.

35B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.

36

Hydraulic Hose

( 9205399 NLA)

1шт.

36A

4457574

Hydraulic Hose

1шт.

36B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.

37

Hydraulic Hose

( 9205396 NLA)

1шт.

37A

4457578

Hydraulic Hose

1шт.

37B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.

38

Hydraulic Hose

( 9205400 NLA)

1шт.

38A

4457567

Hydraulic Hose

1шт.

38B

Hose Guard

(MAKE FROM XHG-075 , CUT TO LENGTH) ( 4327294 NLA)

3шт.
