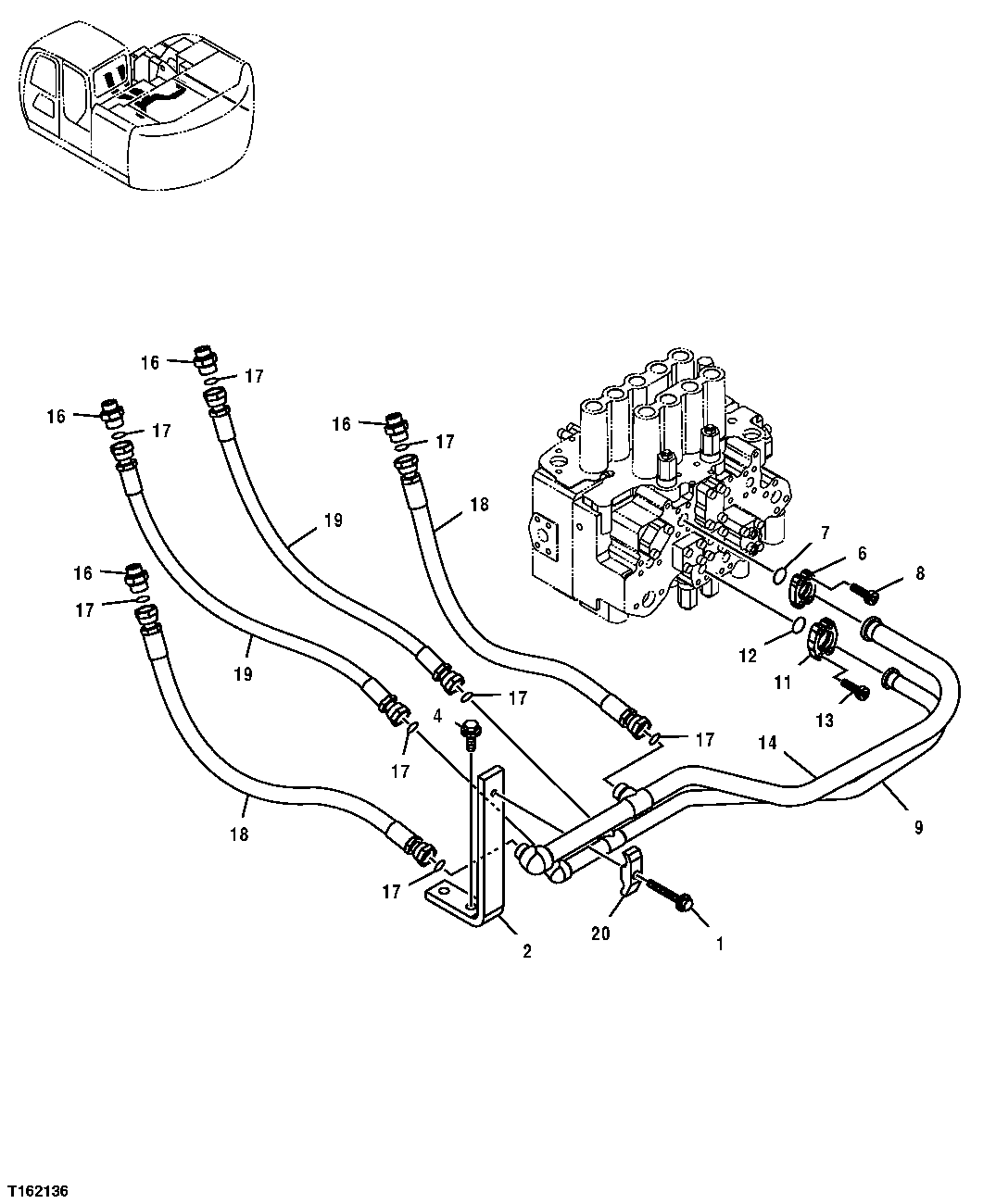

Запчасти John Deere 35D 234 - HYDRAULIC LINES (CONTROL VALVE TO BOOM CYLINDERS) 3363 LINES, HOSES, AND FITTINGS

1

19M7753

Cap Screw

M12 X 70 (USE WITH 4449716 ) (SUB FOR J271270 OR J011270)

1шт.

24H1553

Washer

1-5/8" X 2-1/4" X 0.194" (USE W ITH 4449716 ) (SUB FOR J222012)

1шт.

19M8122

Cap Screw

M12 X 85 (USE WITH 9767 059 ) (SUB FOR J901285)

1шт.

24H1553

Washer

1-5/8" X 2-1/4" X 0.194" (USE W ITH 9767059 ) (SUB FOR J222012)

1шт.

2

Support

( 4449716 NLA) (SUB 9767 059, 19M8122 AND 24M7345)

1шт.

9767059

Support

1шт.

4

19M7789

Screw

M12 X 30 (SUB FOR J031235)

2шт.

6

R29424

Flange Fitting

(SUB FOR 986910)

2шт.

7

T59014

O-Ring

(SUB FOR 971489)

1шт.

8

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

9

8083074

Oil Line

1шт.

11

H61354

Flange Fitting

(SUB FOR 962453)

2шт.

12

966993

O-Ring

1шт.

13

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

14

8083075

Oil Line

1шт.

16

A853166

Adapter Fitting

4шт.

AT318035

O-Ring

(SUB FOR 4506424)

4шт.

17

T77858

O-Ring

(SUB FOR 4187308)

8шт.

18

AT213806

Hydraulic Hose

(SUB FOR 4249339)

2шт.

19

AT213820

Hydraulic Hose

2шт.

20

4153488

Clamp

1шт.
