Запчасти John Deere 35D 190 - PROPEL PILOT CONTROLLER, LEVER AND HANDLE 3315 CONTROLS LINKAGE

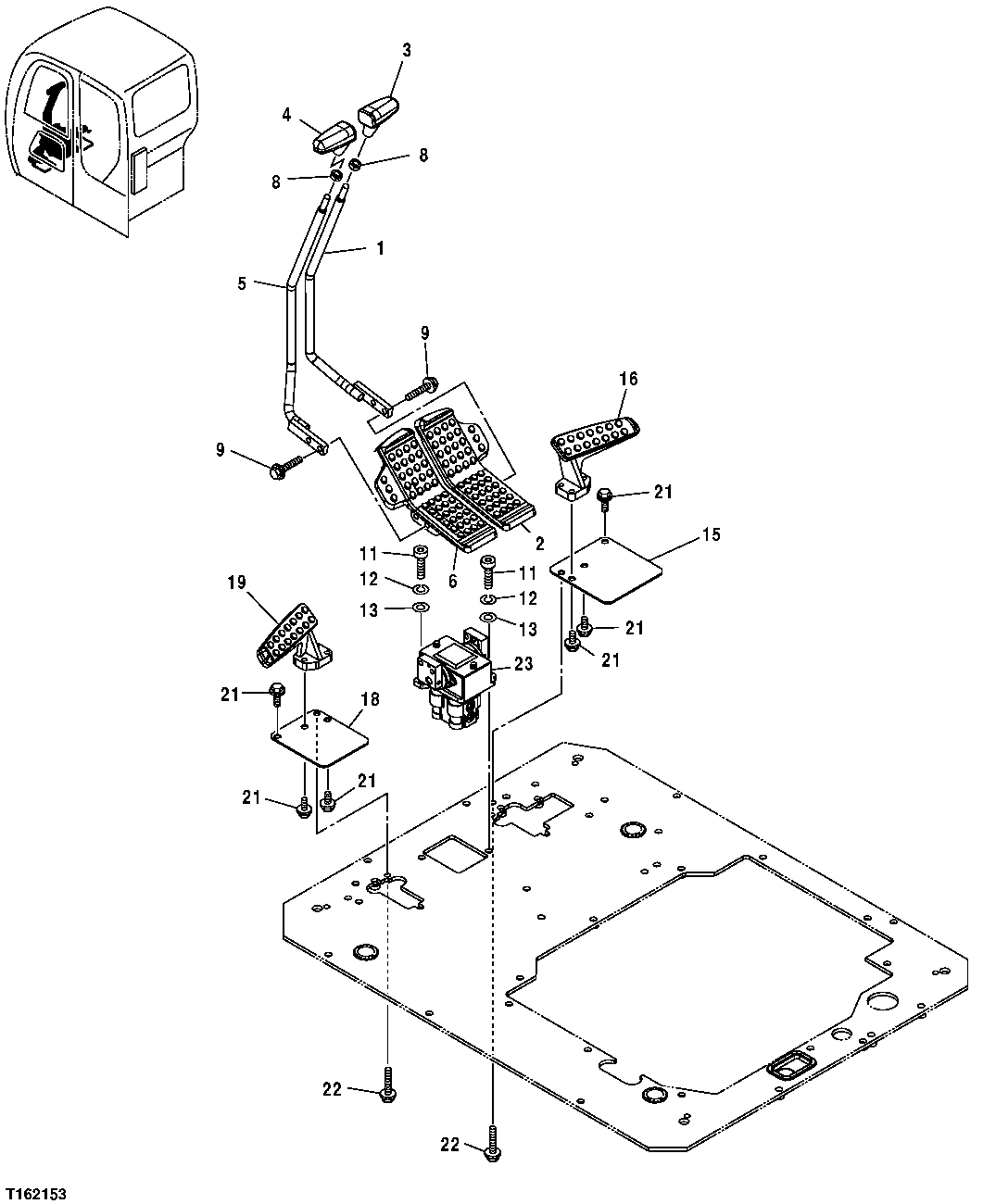

Схема запчастей John Deere 35D - 190 - PROPEL PILOT CONTROLLER, LEVER AND HANDLE 3315 CONTROLS LINKAGE

Артикул

Название

Примечание

Количество

1

8075450

Lever

1шт.

2

1024384

Pedal

1шт.

3

2051176

Grip

(SUB FOR 2045468)

1шт.

4

2051177

Grip

(SUB FOR 2045469)

1шт.

5

8075449

Lever

1шт.

6

1024224

Pedal

1шт.

8

4424185

Nut

2шт.

9

19M7658

Cap Screw

M10 X 50

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

11

J781035

Bolt

2шт.

12

12M7066

Lock Washer

10 mm (SUB FOR A590910)

2шт.

13

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

2шт.

15

4442175

Cover

1шт.

16

1015478

Footrest

1шт.

18

3052543

Cover

1шт.

19

1015477

Footrest

1шт.

21

19M7402

Cap Screw

M10 X 25 (SUB FOR J011025)

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

22

19M7550

Cap Screw

M10 X 35 (SUB FOR J011035)

2шт.

12M7066

Lock Washer

10 mm

2шт.

23

9195307

Hydr./Pilot Control Valve

Units Built Before January 2003

1шт.

9235551

Hydr./Pilot Control Valve

Units Built January 2003 a nd After (SUB FOR 9226365)

1шт.

Выбрано товаров: 24
