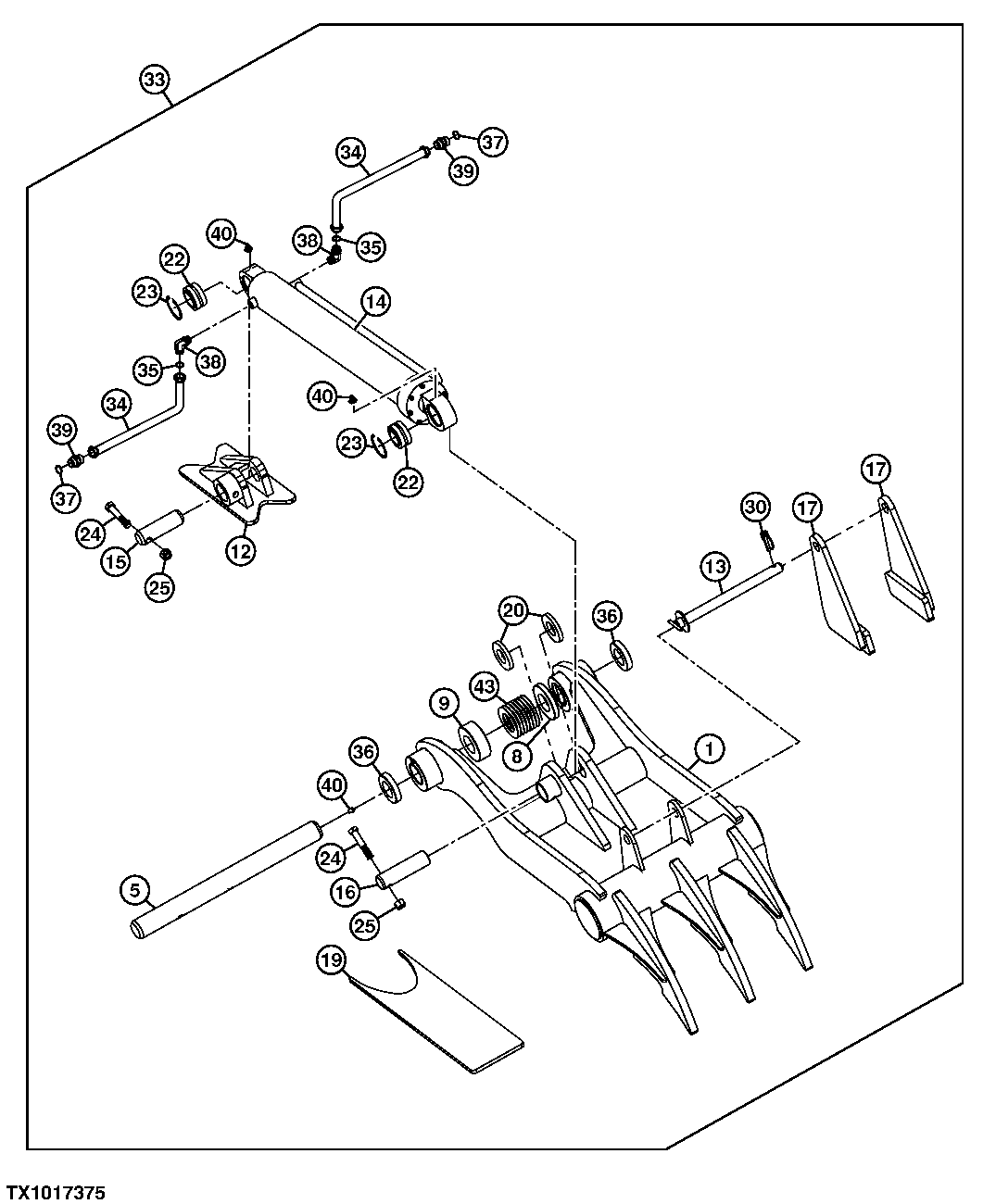

Запчасти John Deere 35D 186 - Direct Hydraulic Thumb Kit 3302 BUCKET WITH TEETH

1

Clamp

1шт.

5

AT339886

Pin

1шт.

8

Spacer

1шт.

9

Spacer

1шт.

12

Bracket

1шт.

13

T229430

Pin

1шт.

14

AT339877

Hydraulic Cylinder

1шт.

AT339879

Seal Kit

Not Illustrated

1шт.

15

T229331

Pin

1шт.

16

AT339862

Pin

1шт.

17

Bracket

2шт.

19

Reinforcement

1шт.

20

T229423

Thrust Washer

2шт.

22

AT339878

Bushing

2шт.

23

T229413

Snap Ring

2шт.

24

19H3196

Cap Screw

3/4" X 4"

2шт.

25

T25879

Nut

2шт.

30

T115753

Pin Fastener

1шт.

33

AT339848

Clamp

36 in. Bucket WHOLE GOODS, NLA , ORDER AT379648 or AT379649 Se e Separate Page For Components

1шт.

AT341016

Clamp

42 in. Bucket WHOLE GOODS, NLA , ORDER AT379648 or AT379649 Se e Separate Page For Components

1шт.

AT341017

Clamp

48 in. Bucket WHOLE GOODS, NLA , ORDER AT379648 or AT379649 Se e Separate Page For Components

1шт.

34

AT339692

Hydraulic Hose

2шт.

35

R26375

O-Ring

2шт.

36

T229309

Bushing

2шт.

37

R29936

O-Ring

2шт.

38

X128C5OXS

Fitting

2шт.

39

X1216F4OMXS

Hose Fitting

2шт.

40

JD5815

Lubrication Fitting

2шт.

43

T229509

Shim

(SUB FOR T229310)

8шт.
