149 - REAR VIEW MIRROR (MACHINE REAR MOUNT)

Запчасти John Deere 35D 149 - REAR VIEW MIRROR (MACHINE REAR MOUNT) 2002 MIRROR

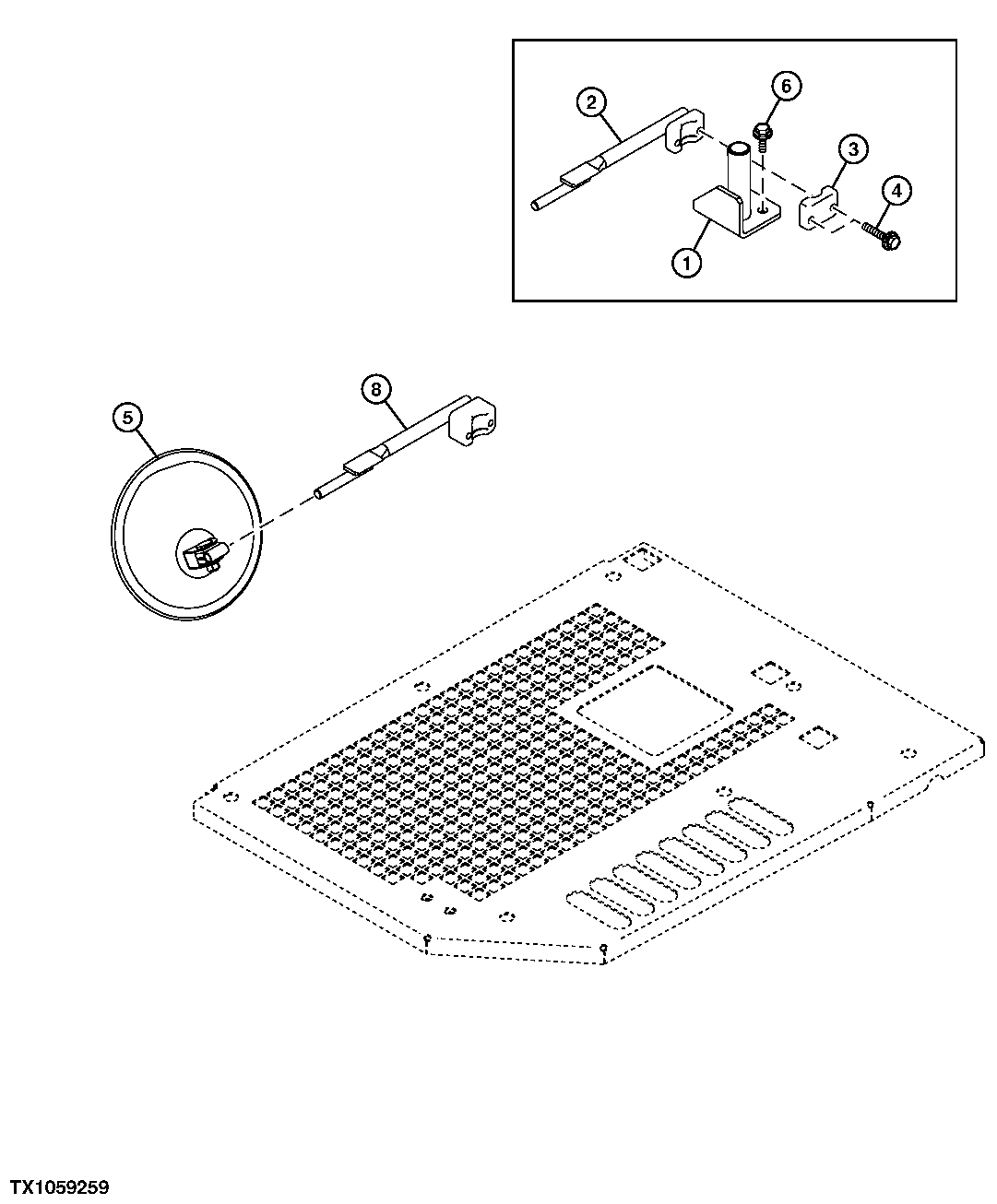

Схема запчастей John Deere 35D - 149 - REAR VIEW MIRROR (MACHINE REAR MOUNT) 2002 MIRROR
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8084093

Bracket

8084093 NLA (UNITS BUILT BEFORE JULY 2003)

1шт.

2

8090377

Latch

8090377 NLA (SUB FOR 8084094 ( UNITS BUILT BEFORE JULY 2003))

1шт.

3

4454285

Clamp

(UNITS BUILT BEFORE JULY 2003)

1шт.

4

19M8359

Cap Screw

M8 X 45 (SUB FOR J010845)(U NITS BUILT BEFORE JULY 2003)

2шт.

Washer

12M7065 NLA

2шт.

5

4208674

Rear View Mirror

1шт.

6

19M7402

Cap Screw

M10 X 25 SUB FOR J011025

2шт.

12M7066

Lock Washer

10 mm

2шт.
