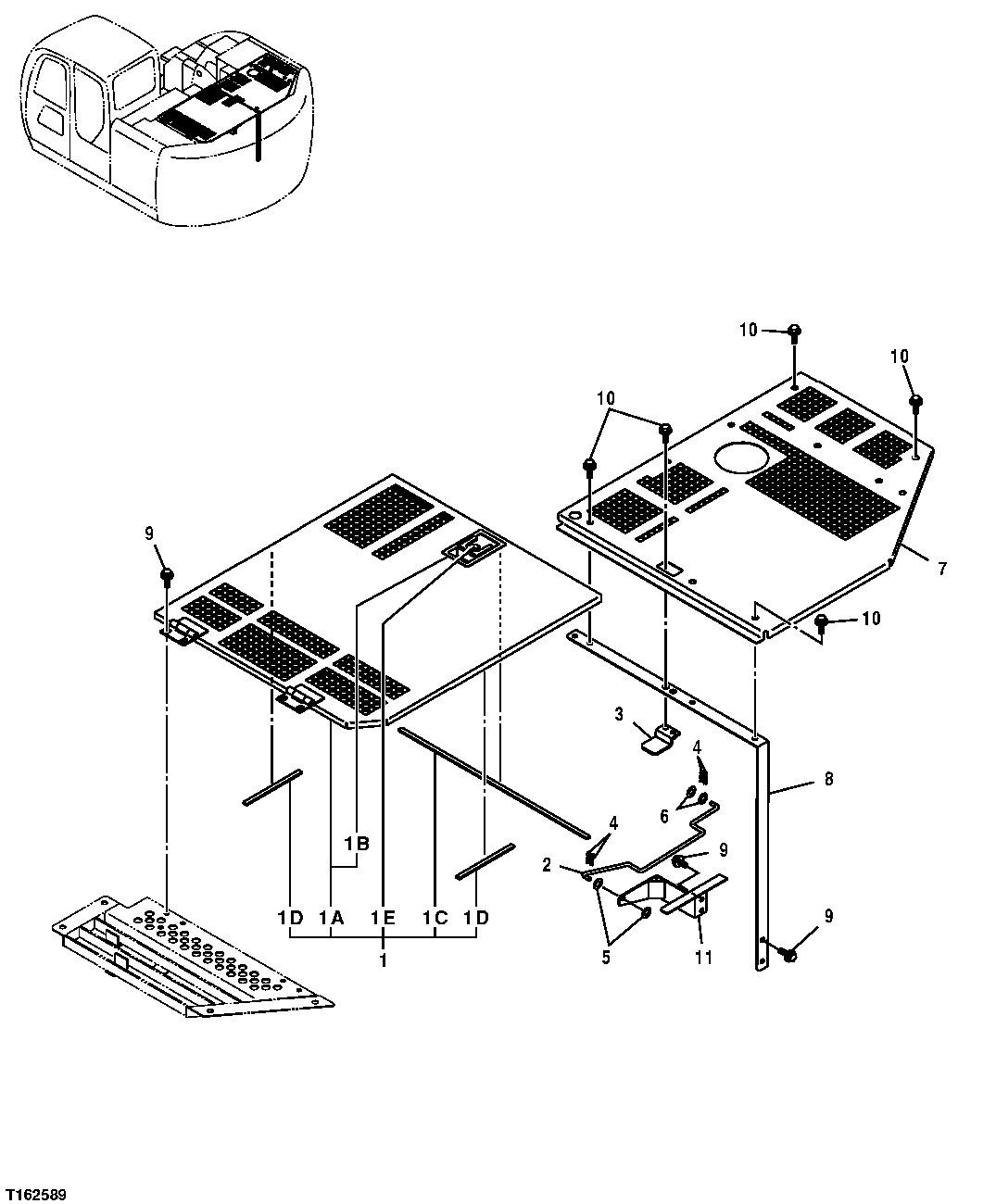

Запчасти John Deere 35D 143 - ENGINE COMPARTMENT COVER AND DOOR 1910 HOOD OR ENGINE ENCLOSURE

1

7039799

Cover

1шт.

1A

Cover

( 6019908 NLA)

1шт.

1B

4409446

Lock

Weld In

1шт.

DH400030

Latch

Rivet In

1шт.

1C

4439030

Isolator

1шт.

1D

4447443

Isolator

2шт.

1E

4409396

Lock

1шт.

4409446

Lock

Weld In

1шт.

DH400030

Latch

Rivet In

1шт.

2

2047603

Rod

1шт.

3

9754899

Stop

1шт.

4

L12622

Spring Locking Pin

(SUB FOR 4022698)

4шт.

5

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

2шт.

6

24M7101

Washer

11 X 34 X 3 mm (SUB FOR J217083)

2шт.

7

6019915

Cover

1шт.

8

7040009

Support

1шт.

9

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

8шт.

12M7066

Lock Washer

10 mm

8шт.

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

10

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

10шт.

12M7067

Lock Washer

12 mm

10шт.

24M7346

Washer

11 X 20 X 2 mm

10шт.

11

8083257

Bracket

1шт.
