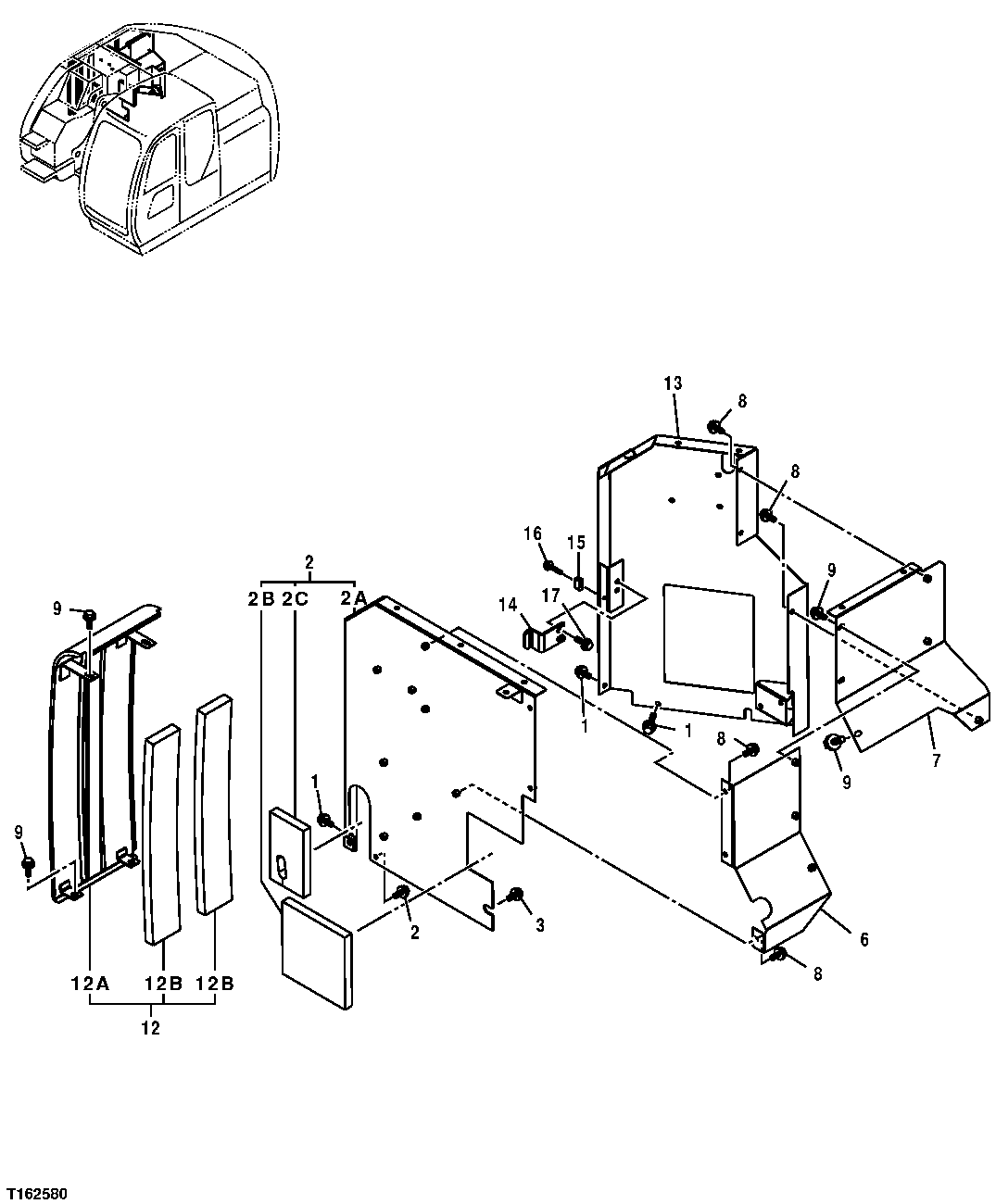

Запчасти John Deere 35D 140 - HYDRAULIC PUMP COMPARTMENT PANELS 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

2

Cover

( 7040029 NLA) (ORDER INDIVIDUAL COMPONENTS)

1шт.

2A

6019914

Cover

1шт.

2B

4450780

Isolator

1шт.

2C

4450781

Isolator

1шт.

3

12M7066

Lock Washer

10 mm

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

6

7040010

Cover

1шт.

7

8083290

Cover

1шт.

8

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

7шт.

12M7066

Lock Washer

10 mm

7шт.

24M7028

Washer

10.500 X 20 X 2 mm

7шт.

9

19M7402

Cap Screw

M10 X 25 (SUB FOR J031025)

7шт.

12M7067

Lock Washer

12 mm

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

12

Cover

( 8082557 NLA) (ORDER INDIVIDUAL COMPONENTS)

1шт.

12A

7039980

Cover

1шт.

12B

4447518

Isolator

2шт.

13

6019920

Cover

1шт.

14

4431357

Stop

1шт.

15

4609950

Stop

(SUB FOR 4424157)

1шт.

16

19M8118

Cap Screw

M10 X 35 (SUB FOR J020635)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

17

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.
