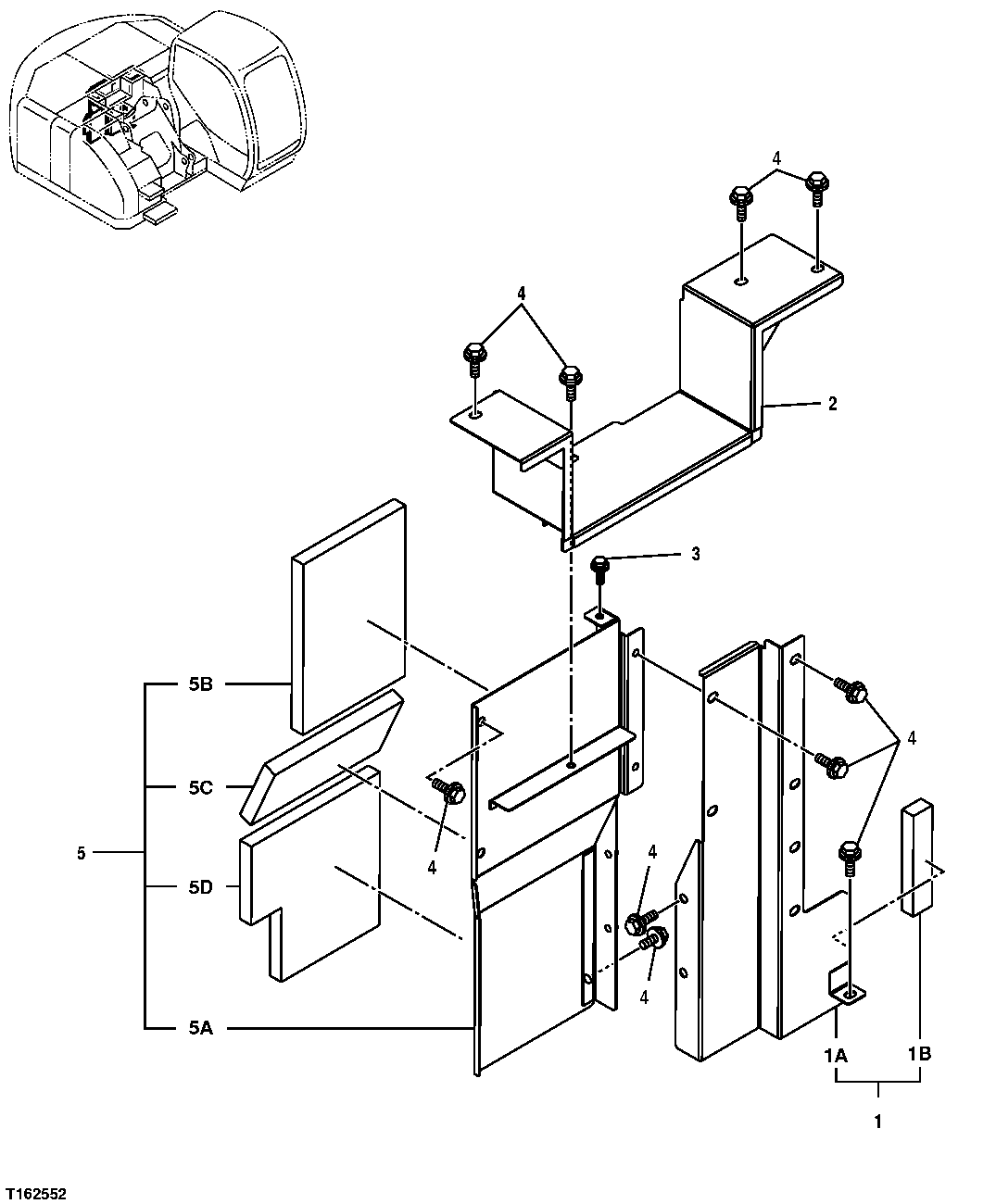

Запчасти John Deere 35D 137 - ENGINE COMPARTMENT FRONT COVER 1910 HOOD OR ENGINE ENCLOSURE

1

Cover

( 8083298 NLA)

1шт.

1A

7040007

Cover

1шт.

1B

4450674

Isolator

1шт.

2

7040001

Cover

1шт.

3

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

4

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

16шт.

12M7067

Lock Washer

12 mm

16шт.

24M7346

Washer

11 X 20 X 2 mm

16шт.

5

Cover

( 8084067 NLA)

1шт.

5A

6019909

Cover

1шт.

5B

4454028

Isolator

1шт.

5C

4454029

Isolator

1шт.

5D

4454030

Isolator

1шт.
