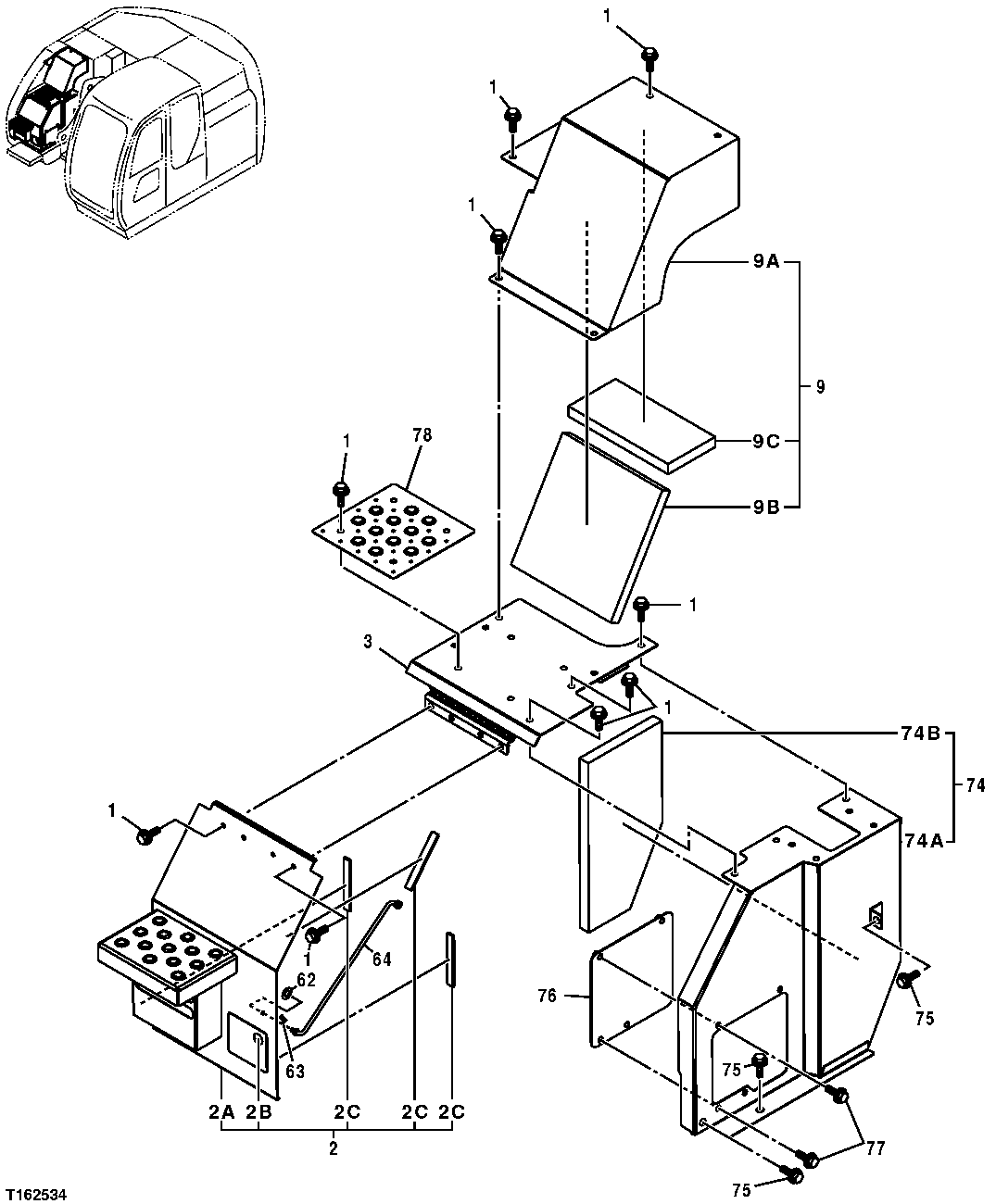

Запчасти John Deere 35D 136 - CONTROL VALVE COMPARTMENT FRONT COVER AND STEPS 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

20шт.

12M7066

Lock Washer

10 mm

20шт.

24M7028

Washer

10.500 X 20 X 2 mm

20шт.

2

8086909

Cover

(SUB FOR 8083173)

1шт.

2A

Cover

( 6019575 NLA)

1шт.

2B

4379989

Cylinder

1шт.

2C

4443211

Isolator

3шт.

3

8083176

Cover

1шт.

9

8084011

Cover

1шт.

9A

Cover

( 7039937 NLA)

1шт.

9B

4453752

Isolator

1шт.

9C

4454029

Isolator

1шт.

62

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

1шт.

63

H132922

Cotter Pin

(SUB FOR 4022697)

1шт.

64

9755451

Rod

1шт.

74

8084010

Cover

1шт.

74A

Cover

( 7039948 NLA)

1шт.

74B

4453749

Isolator

1шт.

75

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

3шт.

12M7067

Lock Washer

12 mm

3шт.

24M7346

Washer

11 X 20 X 2 mm

3шт.

76

9756254

Bracket

1шт.

77

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

78

3092335

Cover

1шт.
