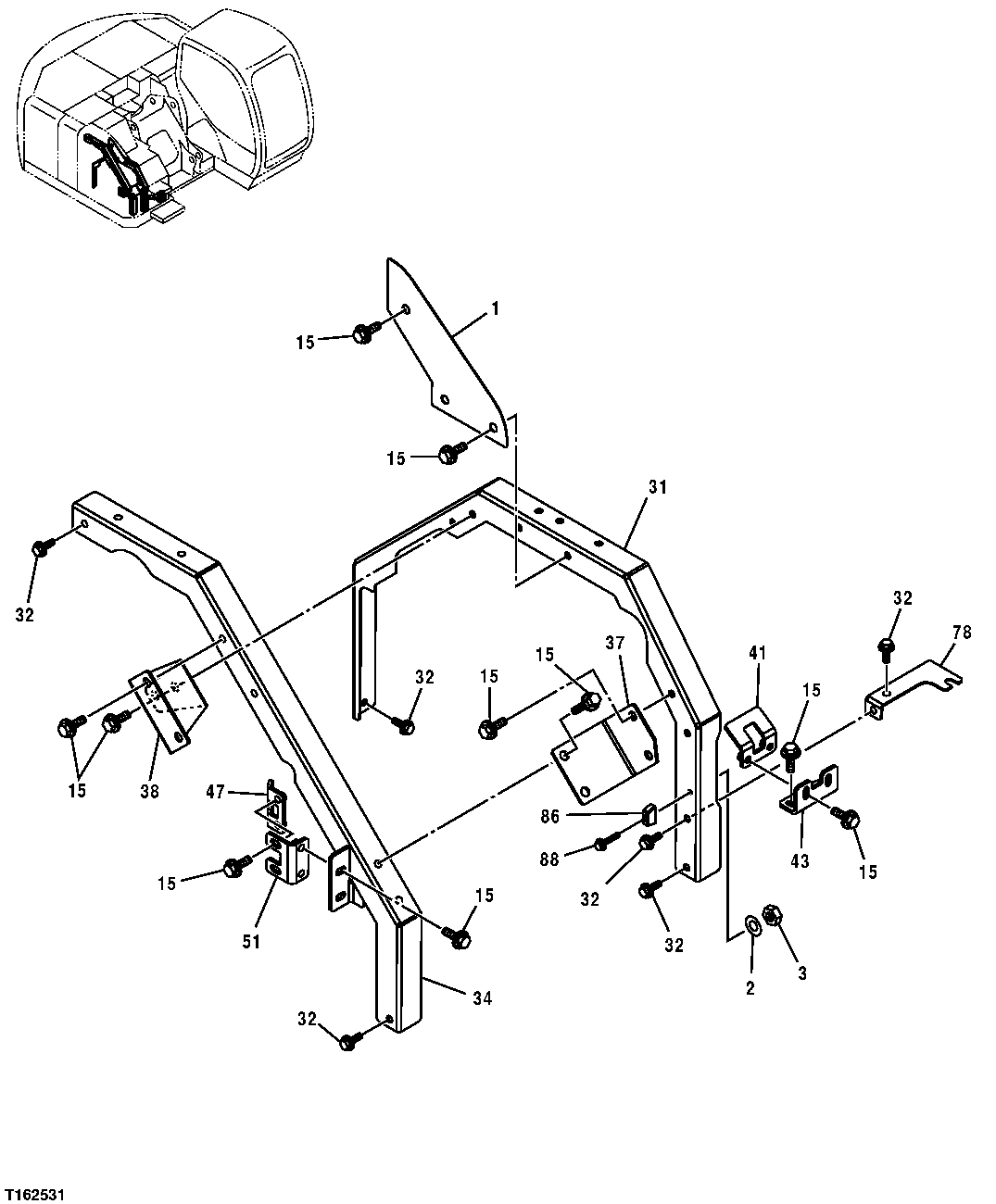

Запчасти John Deere 35D 135 - CONTROL VALVE COMPARTMENT SUPPORTS 1910 HOOD OR ENGINE ENCLOSURE

1

4450500

Cover

1шт.

2

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR A590106)

1шт.

3

14M7272

Nut

M6 (SUB FOR M500605)

1шт.

15

19M7662

Cap Screw

M10 X 30 (SUB FOR J031030)

15шт.

12M7067

Lock Washer

12 mm

15шт.

24M7346

Washer

11 X 20 X 2 mm

15шт.

31

7040088

Support

1шт.

32

19M7662

Cap Screw

M10 X 30 (SUB FOR J021030)

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

34

7040092

Support

1шт.

37

4451587

Bracket

1шт.

38

4450768

Bracket

1шт.

41

9756250

Catch

1шт.

43

4450410

Bracket

1шт.

47

9754967

Catch

1шт.

51

9756348

Bracket

1шт.

78

9755766

Bracket

1шт.

86

4609950

Stop

(SUB FOR 4424157)

1шт.

88

J020640

Bolt

1шт.
