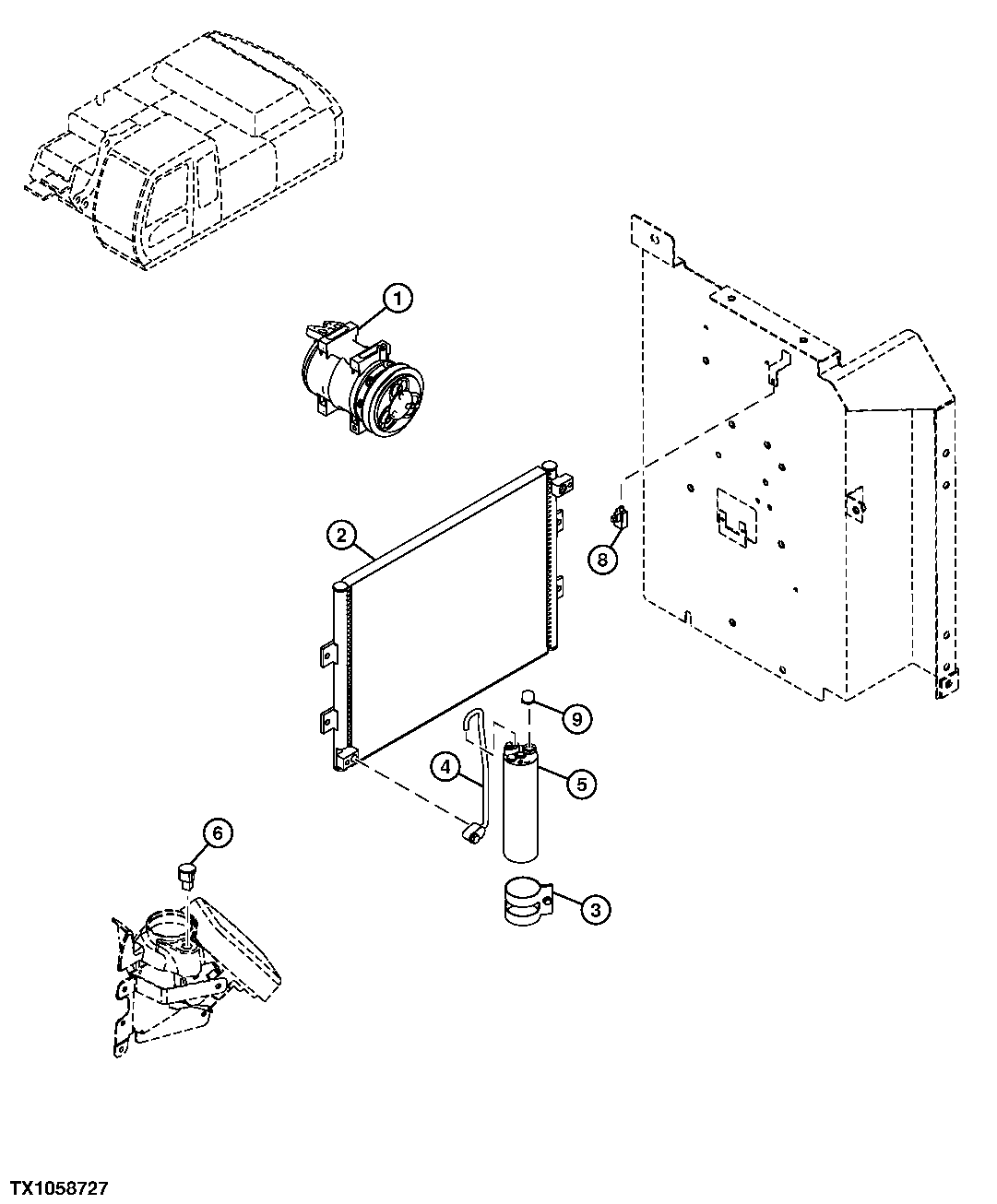

Запчасти John Deere 35D 132 - AIR CONDITIONING COMPRESSOR AND CONDENSER 1832 AIR CONDITIONING SYSTEM, COMPRESSOR & DRIVE

1

4456130

Compressor

1шт.

4623638

Clutch

Magnetic Clutch

1шт.

2

4602578

Vapor Condenser

1шт.

3

4460399

Bracket

1шт.

19M7077

Cap Screw

M6 X 20

4шт.

4

4477526

Line

1шт.

19M8008

Cap Screw

M8 X 35 (SUB FOR J020835 ) (USE WITH 12M70 65 AND 24M7055)(CONNECTS PIPE TO CONDENSER)

1шт.

Washer

12M7065 NLA

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

5

4448179

Receiver-Dryer

Includes High/Low Pressure Switch

1шт.

19M7874

Cap Screw

M6 X 30 Connects Pipe To Receiver - Dryer ALSO ORDER 24M7054 AND 12H302

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12H302

Lock Washer

1/4"

2шт.

6

4405166

Sensor

(CAB TEMPERATURE)

1шт.

8

4405164

Sensor

(AMBIENT TEMPERATURE)

1шт.

9

4709907

Switch

1шт.
