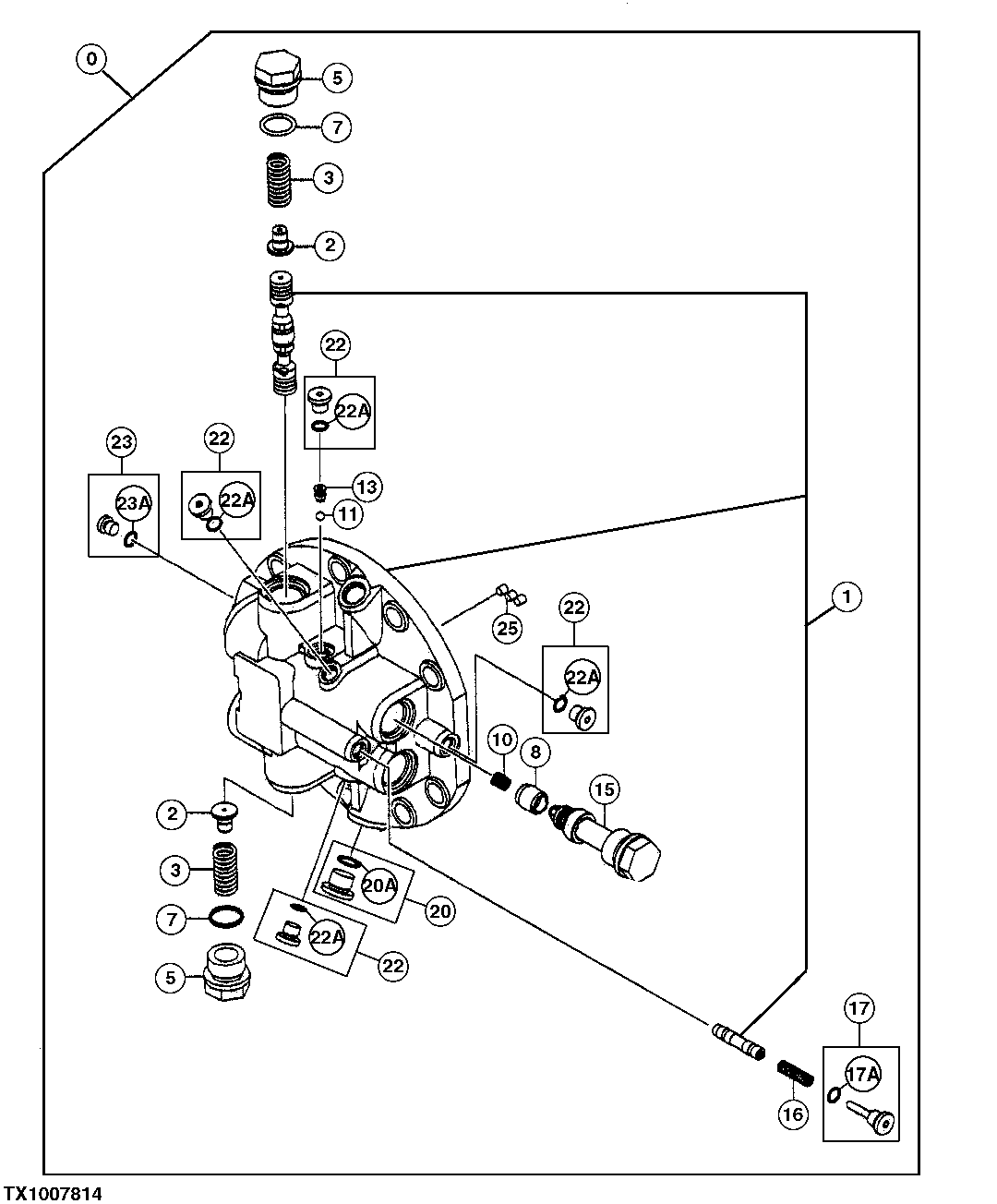

Запчасти John Deere 35D 15 - PROPEL MOTOR BRAKE VALVE (SN 108987- ) 0262 VALVES

0

9260003

Valve

(SUB FOR 9237801)

1шт.

1

8099406

Case

1шт.

2

4602024

Spool

(SUB FOR 4397021)

2шт.

3

4409389

Spring

2шт.

5

4229631

Drain Plug

(SUB FOR TH112085)

2шт.

7

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

8

4397022

Poppet

1шт.

10

4396771

Spring

1шт.

11

R26552

Ball

7.938 mm (5/16")

1шт.

13

4398281

Seat

1шт.

15

9185757

Pressure Relief Valve

1шт.

16

4297257

Compression Spring

(SUB FOR AT159500)

1шт.

17

9167977

Pipe Plug

1шт.

17A

M800650

Packing

1шт.

20

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

20A

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

1шт.

22

9134110

Fitting

(SUB FOR AT203649)

4шт.

22A

M800650

Packing

1шт.

23

9134109

Drain Plug

(SUB FOR AT203656)

1шт.

23A

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

1шт.

25

15H560

Pipe Plug

1/16"

3шт.
