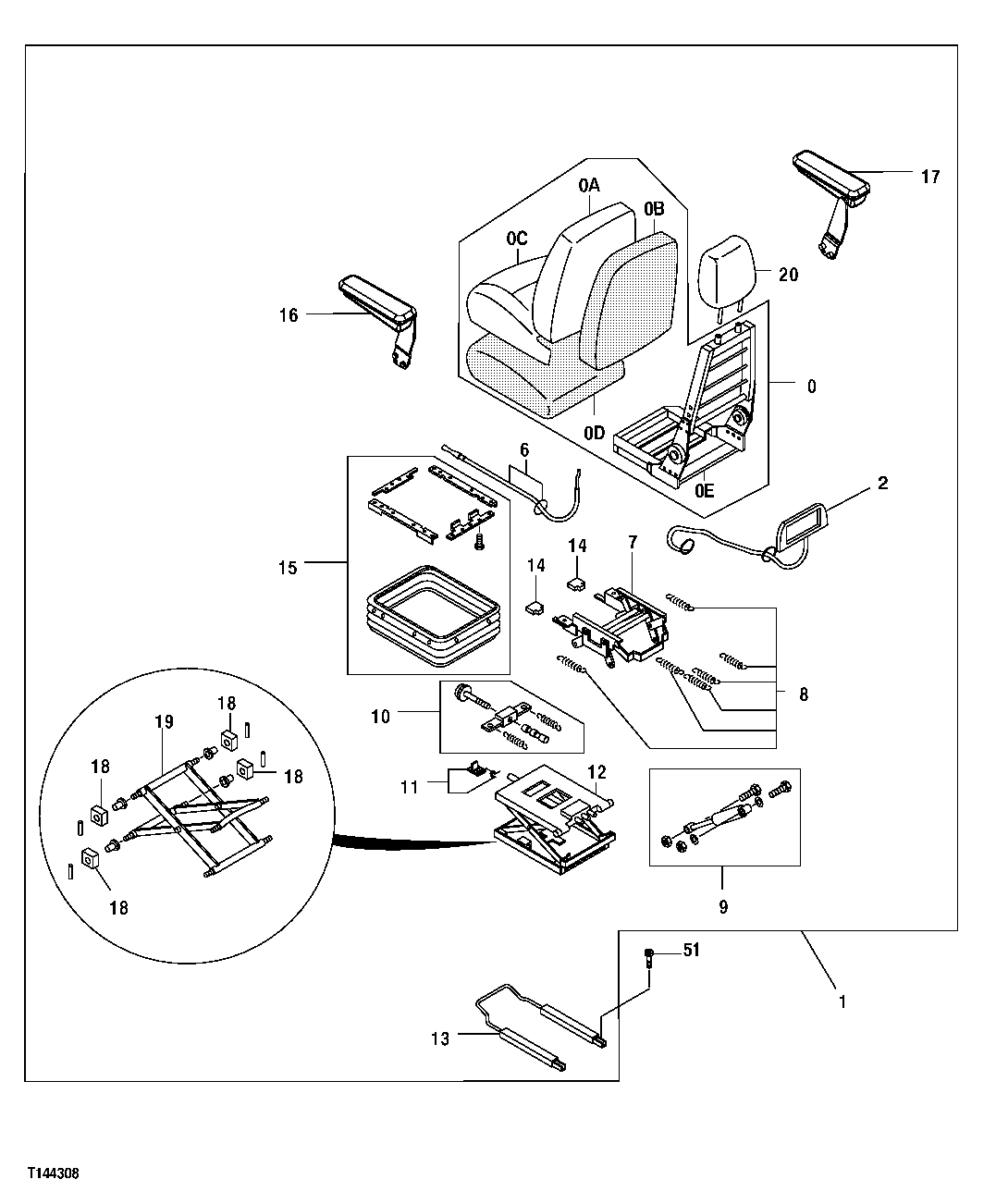

Запчасти John Deere 35D 117 - SEAT AND SEAT SUSPENSION ASSEMBLY 1821 SEAT AND SEAT BELTS

0

4486189R

Seat

SUB FOR AT195286

1шт.

0A

4486190R

Cushion Cover

SUB FOR AT309263

1шт.

0B

4392796R

Pad

SUB FOR AT309264

1шт.

0C

AT403886

Cushion Cover

Fabric SUB FOR AT195278 AND 4486191R

1шт.

0D

4392798R

Pad

SUB FOR AT195279

1шт.

0E

Frame

1шт.

1

4458290R

Seat

SUB FOR AT193964

1шт.

2

AT195284

Seat Kit

1шт.

6

AT216522

Cable

1шт.

7

4392801R

Stand

SUB FOR AT180971 OR 4392801

1шт.

8

AT195287

Spring

1шт.

9

AT180973

Torsional Damper

KIT

1шт.

10

4392804R

Adjuster

SUB FOR AT180974 OR 4392804

1шт.

11

4392805R

Stop

SUB FOR AT180975 , 4392805 OR AT322189

1шт.

12

4392806

Seat Suspension

SUB FOR AT180976

1шт.

13

4392807

Adjuster

SUB FOR AT180977

1шт.

14

AT216532

Seat Knob Kit

1шт.

15

4392809

Cover

(SUB FOR AT180978)(SUSPENSION COVER KIT)

1шт.

16

Armrest Kit

(LEFT) (NA) (SEE FOLLOWING PAGE)

1шт.

17

Armrest Kit

(RIGHT) (NA) (SEE FOLLOWING PAGE)

1шт.

18

4392812R

Bushing

KIT SUB FOR AT180979 OR 4392812

1шт.

19

AT180980

Link

1шт.

20

4486192R

Head Restraint

SUB FOR AT195280

1шт.

51

19M7647

Screw

M8 X 16 SUB FOR AT217709

4шт.
