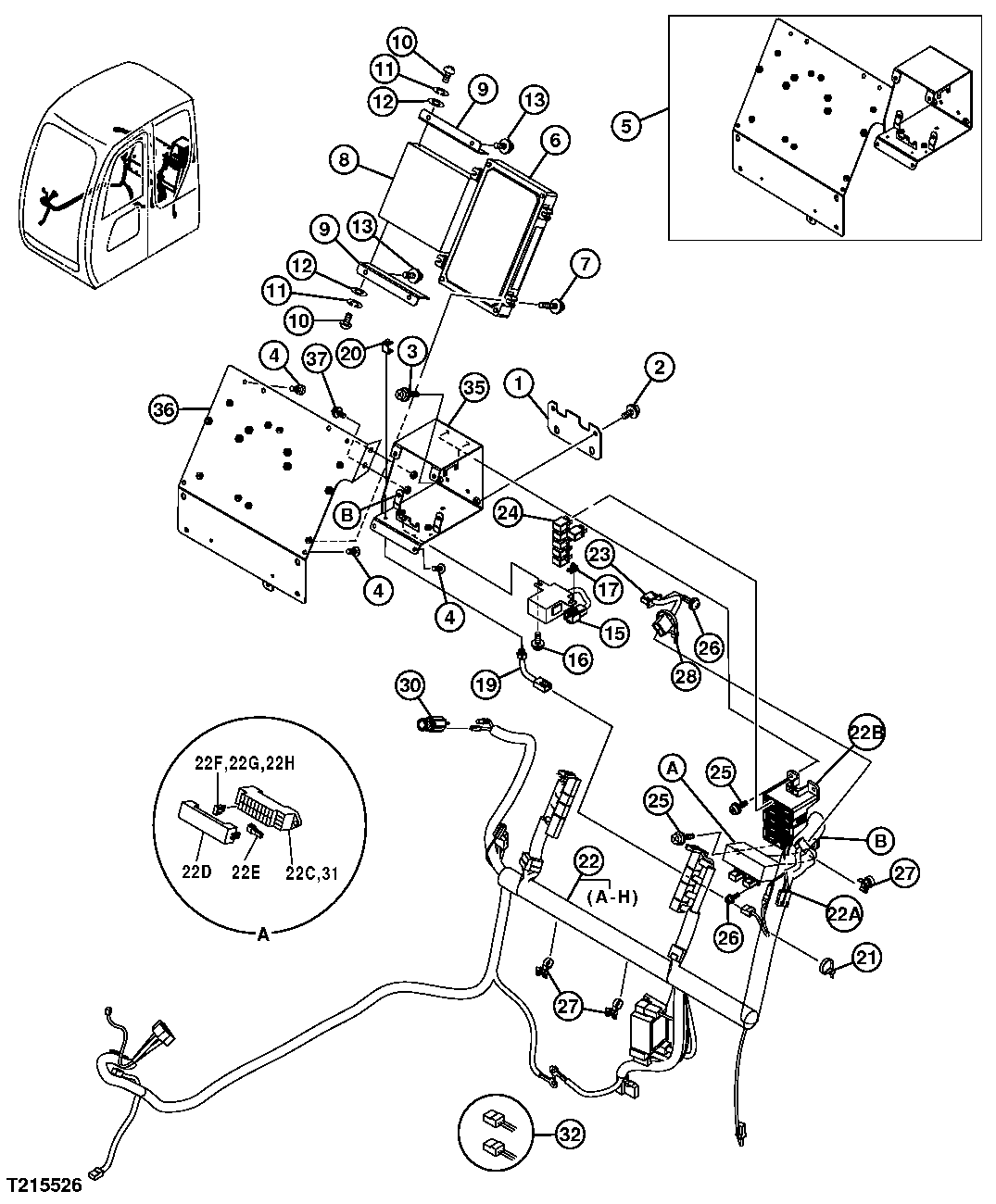

Запчасти John Deere 35D 85 - Cab Wiring Harness 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

1

4450291

Bracket

1шт.

2

19M7162

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

2шт.

3

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

4

4444700

Screw

6шт.

5

Bracket

7040006 NLA, SUB 7042491, ALSO ORDER 7042492, (2) 19M7881 AND (2) 24M7055

1шт.

6

4452332

Vehicle Controller

Pump and Valve Control Unit

1шт.

7

19M7177

Cap Screw

M6 X 35 SUB FOR J460635

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

8

9239568

Vehicle Controller

SUB FOR 9212078 AND 9194416

1шт.

9

3090457

Bracket

2шт.

10

21M7265

Screw

M5 X 12 SUB FOR M430513

4шт.

11

12M7064

Lock Washer

5 mm SUB FOR A590905

4шт.

12

24M7027

Washer

5.300 X 10 X 1 mm SUB FOR A590105

4шт.

13

J460614

Screw

4шт.

15

1825503251

Central Control Unit

SUB FOR 1825503250 AND 4452160 Glow Plug Timer

1шт.

16

21M7267

Screw

M6 X 20 SUB FOR J460620

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

17

Clip

NLA

1шт.

19

4359384

Switch

Engine Learning

1шт.

20

4367375

Bracket

1шт.

21

H77698

Tie Band

SUB FOR 4055311

1шт.

22

0004504

Wiring Harness

0003890 NLA

1шт.

22A

4456778

Diode

4шт.

22B

4427429

Circuit Box

1шт.

22C

4456735

Fuse Holder

1шт.

22D

4443490

Cover

1шт.

22E

4436737

Puller

1шт.

22F

57M7688

Fuse

SUB FOR 4428910

10шт.

22G

57M7689

Fuse

SUB FOR 4428911

7шт.

22H

57M7691

Fuse

SUB FOR 4436736

2шт.

23

4439897

Wiring Harness

1шт.

24

4436534

Relay

6шт.

25

21M7267

Screw

M6 X 20 SUB FOR J460620

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

12M7006

Lock Washer

6 mm

6шт.

26

Screw

J460310 NLA

6шт.

21M7394

Screw

M3 X 10

6шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

6шт.

12H233

Lock Washer

1/8"

6шт.

27

4254600

Clip

3шт.

28

H77698

Tie Band

1шт.

30

AR60937

Electrical Lighter

12V

1шт.

AU42809

Resistor

12V

1шт.

AT78634

Wiring Lead

12V

1шт.

AT78633

Housing

12V

1шт.

Electrical Lighter

24V 4357862 NLA

1шт.

31

4460037

Fuse Box

1шт.

32

4369817

Electrical Connector Assy

1шт.

35

7042491

Bracket

SUB FOR 7040006

1шт.

36

7042492

Bracket

1шт.

37

19M7881

Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.
