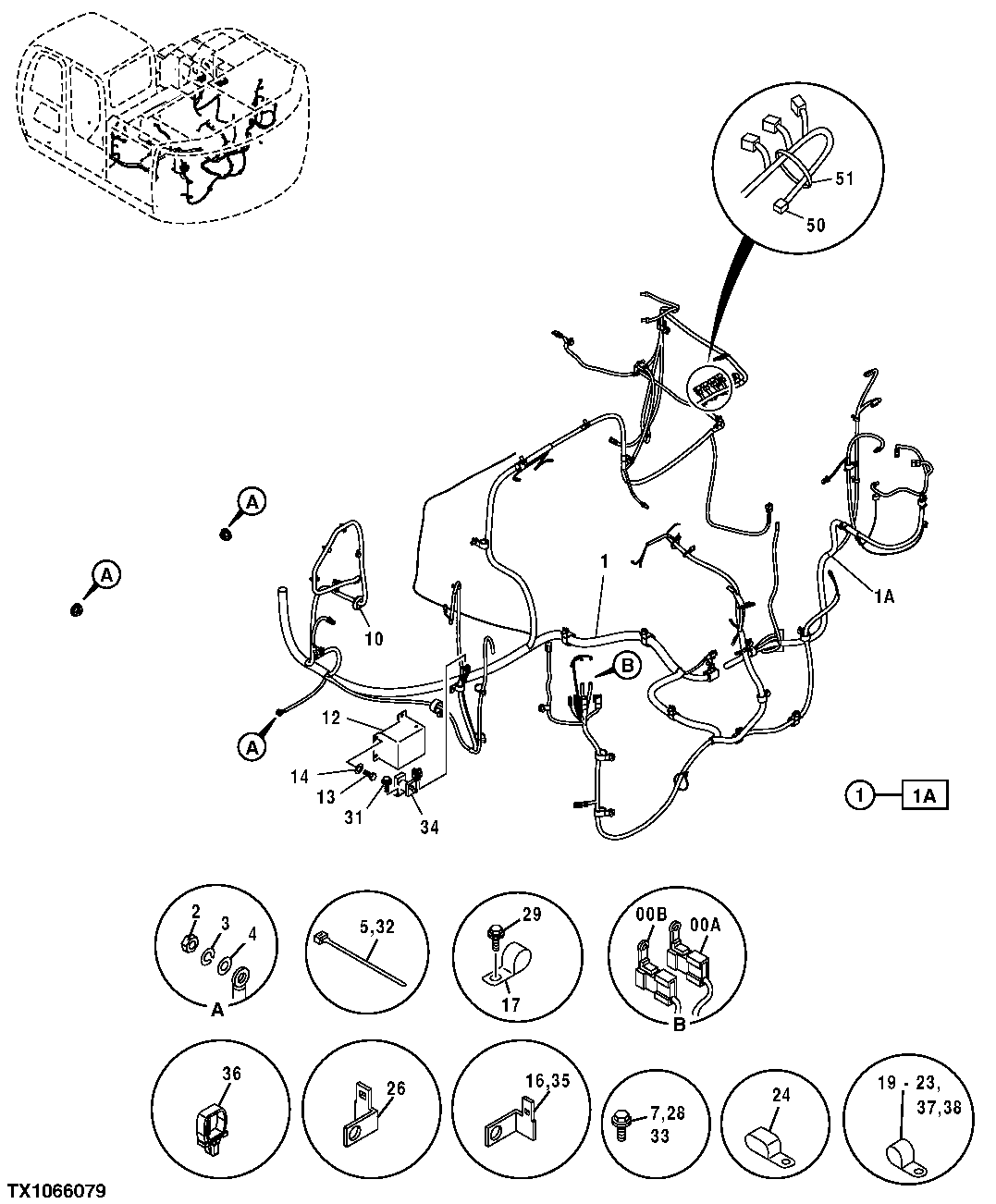

Запчасти John Deere 35D 83 - MACHINE WIRING HARNESS 1674 WIRING HARNESS & SWITCHES (IF NOT INCLUDED ELSEWHERE)

0A

4423418

Fuse

1шт.

0B

4315323

Fuse

1шт.

1

0004068

Wiring Harness

For Use With 4 Proportional Solenoids OR DER 0004775 AND 4487830 INCLUDES 4458246

1шт.

4487830

Wiring Harness

Proportional Solenoid (SE) HARNESS

1шт.

0004775

Wiring Harness

For Use With 3 Proportional Solenoids SUB FOR 0004068 WITH 4487830, INCLUDES 4458246 (SUB FOR 0004068 ) (ALSO ORDER 0004775)(SEE DTAC SOLUTION FOR REPAIR KIT AND CONNECTOR S)

1шт.

1A

4458246

Wiring Harness

Pump

1шт.

2

14M7274

Nut

M10 (SUB FOR J950010)

3шт.

3

12M7066

Lock Washer

10 mm (SUB FOR A590910)

3шт.

4

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR A590110)

3шт.

5

H77698

Tie Band

(SUB FOR 4055311)

5шт.

7

19M7662

Cap Screw

M10 X 30 (SUB FOR J011030)

2шт.

12M7066

Lock Washer

10 mm

2шт.

10

94-2811

Grommet

1шт.

12

3087512

Cover

1шт.

13

19M7162

Cap Screw

M8 X 16 (SUB FOR J900816)

3шт.

14

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

3шт.

16

4257159

Bracket

1шт.

17

T78787

Clamp

(SUB FOR 4450494)

3шт.

19

XCL-29

Hose Clamp

(SUB FOR AT131725, 4190291 OR 4193848)

1шт.

23

4190261

Clip

5шт.

24

T32854

Clamp

(SUB FOR 4190282)

4шт.

26

4418301

Bracket

1шт.

28

19M8324

Cap Screw

M10 X 16 (SUB FOR J011016)

1шт.

12M7067

Lock Washer

12 mm

1шт.

29

19M7560

Cap Screw

M6 X 16 (SUB FOR J010616)

3шт.

12M7006

Lock Washer

6 mm

3шт.

31

19M7932

Cap Screw

M8 X 16 (SUB FOR J010816)

2шт.

32

H77698

Tie Band

4шт.

33

19M7938

Cap Screw

M10 X 20 (SUB FOR J011020)

24шт.

12M7066

Lock Washer

10 mm

24шт.

34

1825530391

Relay

(SUB FOR 4452158)

1шт.

35

4381930

Bracket

1шт.

36

4449250

Clip

2шт.

37

T28949

Clamp

(SUB FOR 4190274)

3шт.

38

XCL-19

Hose Clamp

(SUB FOR 4192035)

2шт.

50

4453153

Electrical Connector Assy

1шт.

51

H77698

Tie Band

(SUB FOR 4055312)

1шт.
