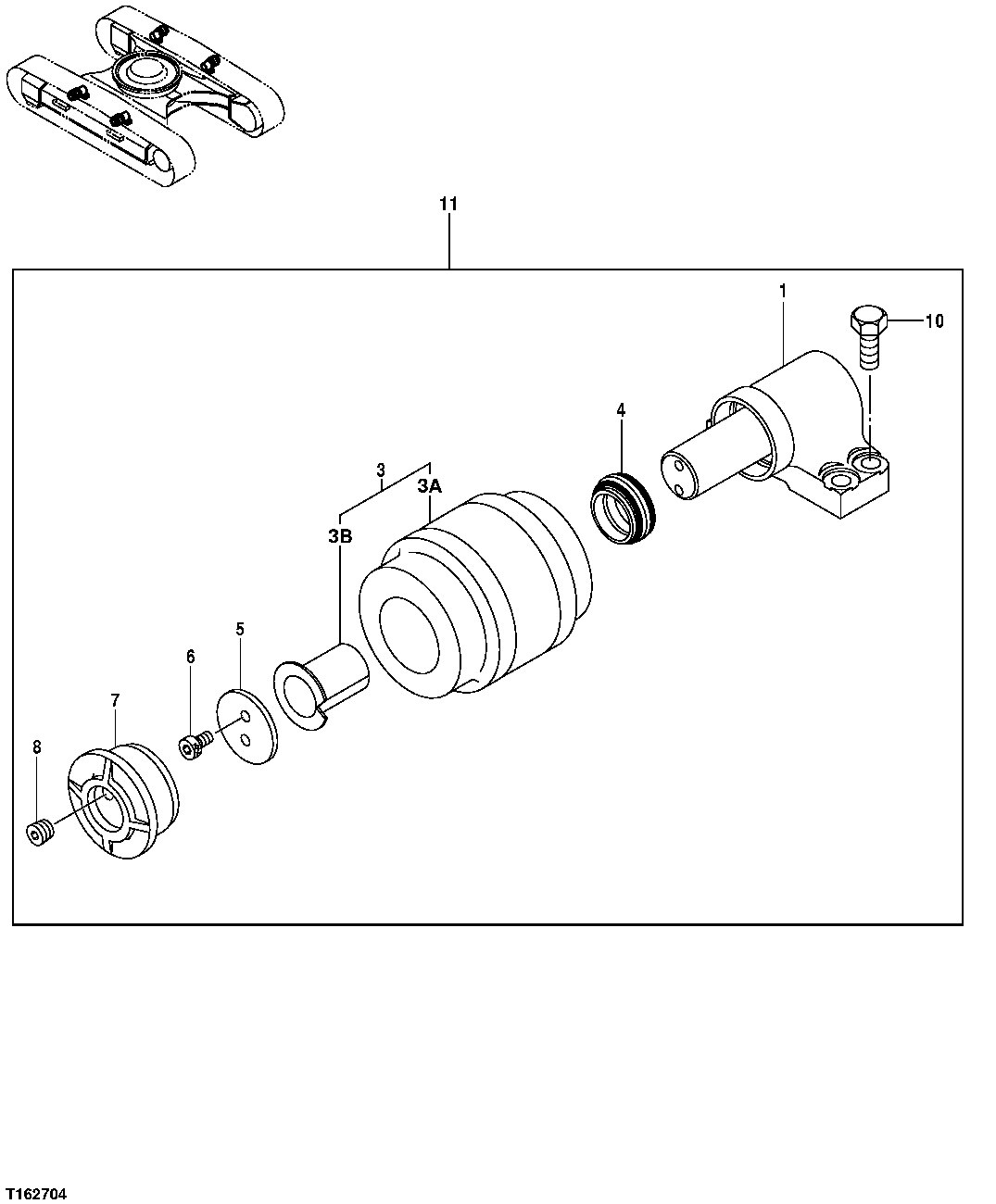

Запчасти John Deere 35D 8 - UPPER TRACK CHAIN ROLLER 0133 ROLLERS

1

Bracket

9089659 NLA SUB FOR 9134245, ORDER AP34667

1шт.

3

Roller

9178332 NLA

1шт.

3A

Roller

3085050 NLA

1шт.

3B

AT180004

Bushing

USE WITH AP34667

1шт.

4172348

Bushing

USE WITH AP34667

1шт.

4

AT180008

Seal

USE WITH AP34667

1шт.

4317584

Seal

USE WITH AP34667

1шт.

5

AT180005

Washer

USE WITH AP34667

1шт.

T210827

Thrust Washer

SUB FOR 4282842, USE WITH AP34667

1шт.

6

AT180006

Screw

USE WITH AP34667

2шт.

M351018

Bolt

SUB FOR T191378, USE WITH AP34667

2шт.

7

Cover

3070078 NLA (USE WITH 9134245 (NOT AVAILABLE FOR AP34667))

1шт.

8

AT180007

Fitting Plug

USE WITH AP34667

1шт.

942011

Fitting Plug

SUB FOR 94-2011 AND 43 15607, USE WITH AP34667

1шт.

10

19M7488

Cap Screw

M16 X 40

16шт.

19M8295

Cap Screw

M16 X 55 USE WITH 4334245

16шт.

11

Roller

9134245 NLA SUB AP34667

4шт.

AP34667

Roller

(ASSY)

4шт.
