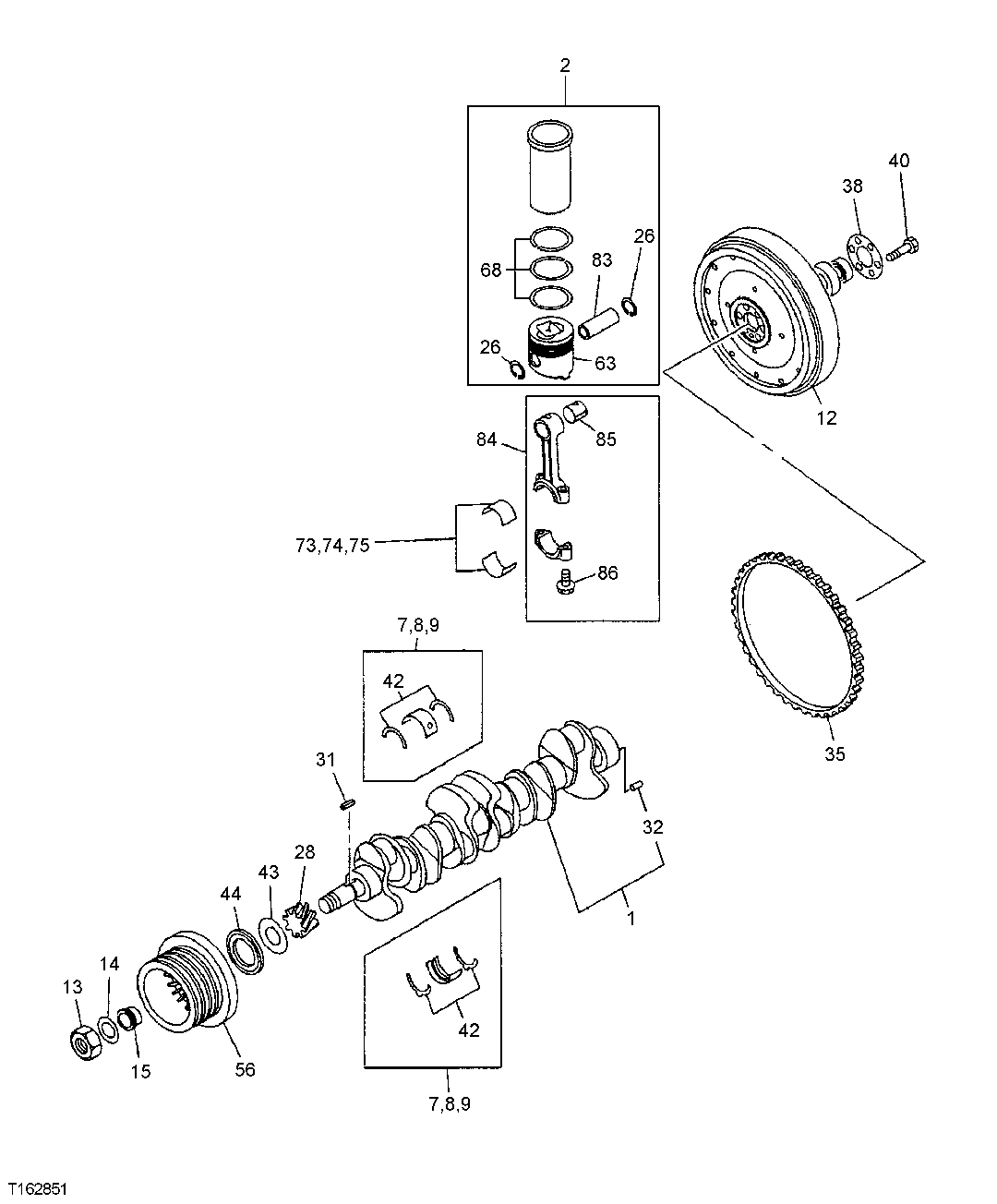

Запчасти John Deere 35D 24 - Crankshaft, Connecting Rods and Pistons 0401 CRANKSHAFT AND MAIN BEARINGS

1

1123104701

Crankshaft

SUB FOR 1123104700

1шт.

2

1878141050

Piston-Liner Kit

Grade 1 SUB FOR 1878120500 A ND 1878127911 AND 1878127912

6шт.

1878127922

Piston-Liner Kit

Grade 2 SUB FOR 1878127920 AND 1878127921

6шт.

1878127931

Cylinder Liner

Grade 3 SUB FOR 1878121400

6шт.

1878124882

Piston-Liner Kit

Grade 4 SUB FOR 1878124881, 1878121410 , 1878127940, 1878127941 OR 1878124880

6шт.

7

1115100743

Rod Kit

Crankshaft Main Bearings Standard Size

1шт.

8

1115300741

Rod Kit

25 US Crankshaft Main Be arings SUB FOR 1115300742

1шт.

9

1115400742

Rod Kit

50 US Crankshaft Main Be arings SUB FOR 1115400741

1шт.

12

1123313773

Flywheel

SUB FOR 1123313771 OR 1123313770

1шт.

13

9098401071

Nut

1шт.

14

9098514310

Washer

1шт.

15

9123790450

Bushing

1шт.

26

8941075751

Ring

12шт.

28

8971379102

Gear

Z=25 SUB FOR 8971379100 OR 8971379101

1шт.

31

5097380010

Shaft Key

1шт.

32

9081612200

Pin Fastener

1шт.

35

8943931320

Gear

I.D. 361MM Z=129

1шт.

38

5123360081

Washer

1шт.

40

9920616380

Bolt

6шт.

42

1116800011

Washer

SUB FOR 1116800013

2шт.

43

1123620031

Disk

1шт.

44

5123620031

Ring

1шт.

56

1123714700

Pulley

3 groove

1шт.

63

8973585740

Piston

Grade AX SUB FOR 8972873990

6шт.

8973585750

Piston

SUB FOR 8972874000 Grade CX

6шт.

68

8982404830

Piston Ring

SUB FOR 1121211460

6шт.

73

9122716080

Metals

Connecting Rod Bearings St andard Size 8970110310 NLA

6шт.

74

9122736080

Crankshaft And Piston Kit

25 US Connecting Rod Bearings

6шт.

75

9122746080

Crankshaft And Piston Kit

50 US Connecting Rod Bearings

6шт.

83

1122110332

Pin Fastener

6шт.

84

1122301292

Connecting Rod

SUB FOR 1122301291

6шт.

85

1122510320

Bushing

6шт.

86

1122350271

Bolt

M20 X 49.5

12шт.
