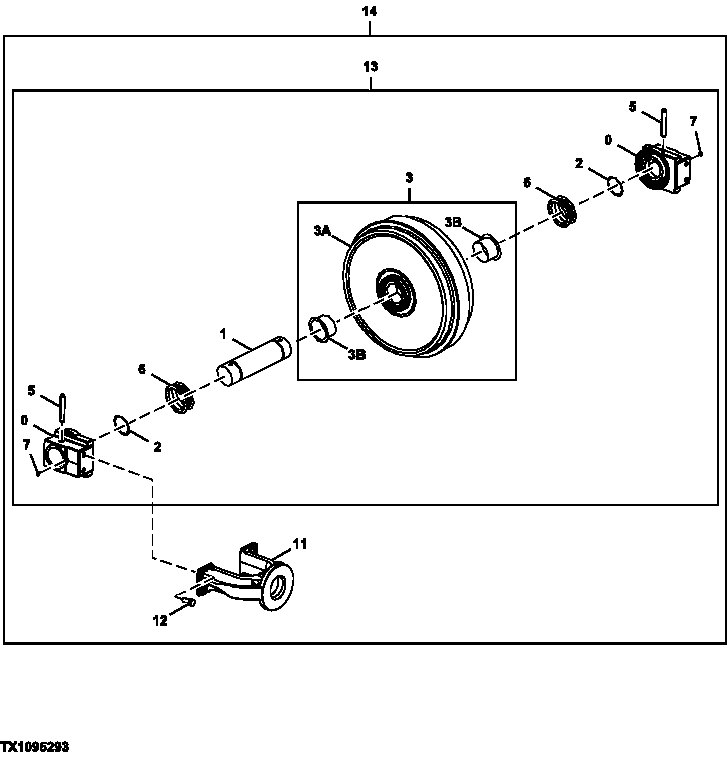

Запчасти John Deere 35D 7 - TRACK CHAIN IDLER (REPLACEMENT) 0133 ROLLERS

0

1032503R

Bearing

SUB FOR (1) 1032503

2шт.

1

3070162R

Axle

SUB FOR (1) 3070162

1шт.

2

AT180019

O-Ring

SUB FOR (1) A810070

2шт.

3

9242963R

Idler

SUB FOR (1) 9242963

1шт.

3A

Idler

7047084 NLA

1шт.

3B

3103096R

Bushing

SUB FOR (1) 3103096

2шт.

5

4126209R

Pin

SUB FOR (1) 4126209

2шт.

6

AT180017

Seal

SUB FOR (1) 4153731 OR (1) TH100433

2шт.

7

94-2011

Fitting Plug

SUB FOR (1) 4315607

2шт.

11

DH100029

Yoke

SUB FOR (1) 1026777

1шт.

12

19M8035

Cap Screw

M16 X 35 SUB FOR (1) J901635

4шт.

13

9242964R

Track Idler

SUB FOR (1) 9242964

1шт.

14

Track Idler

9242965 NLA

1шт.
