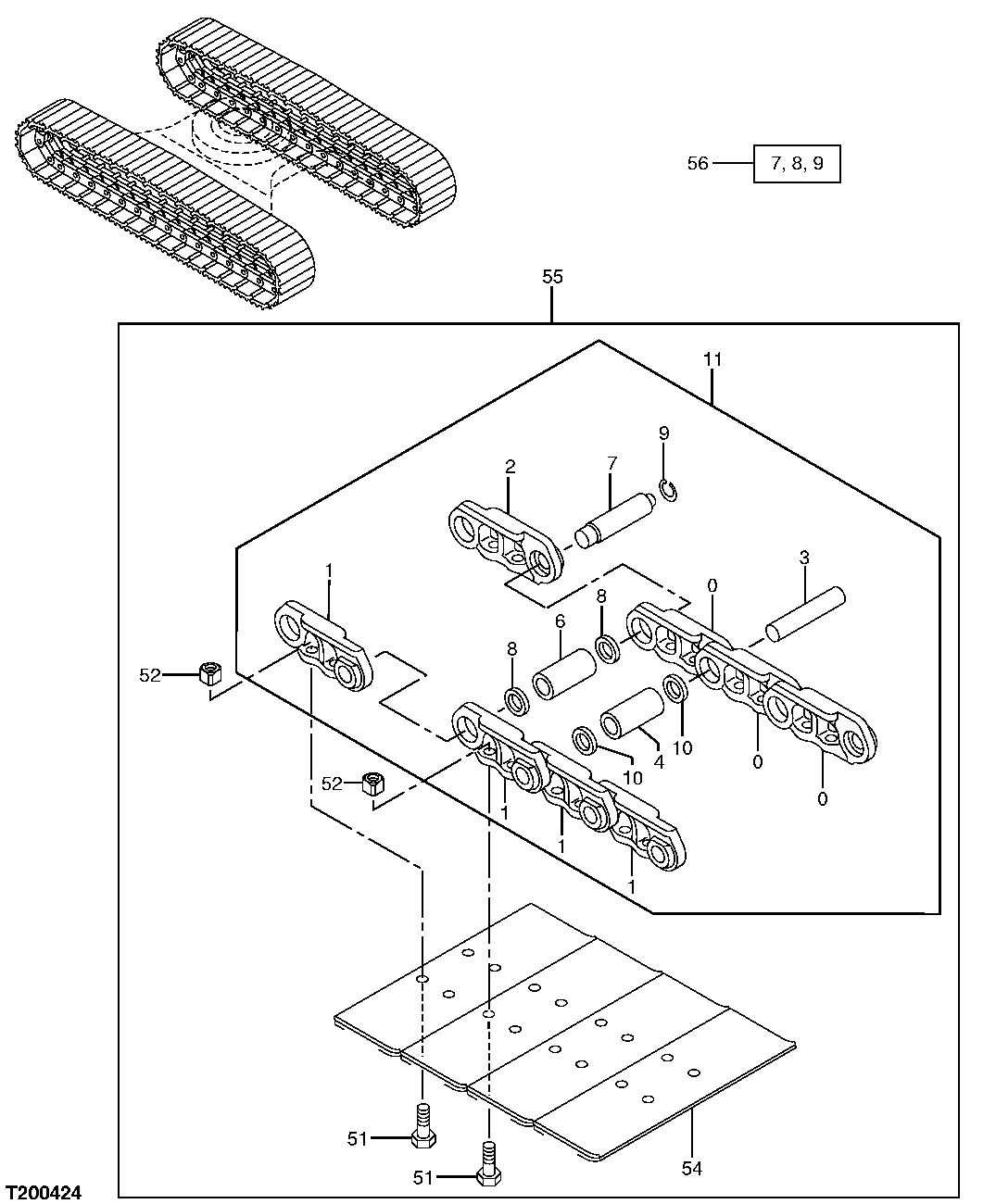

Запчасти John Deere 35D 4 - REPLACEMENT TRACK CHAINS AND SHOES 0132 DRIVE SPROCKETS, CHAINS AND SHOES

0

AT219480

Strutted LINK-RH

NLA, SUB 0005251R, RH

48шт.

0005251R

Track Link

RH

48шт.

1

AT219481

Strutted LINK-LH

NLA, SUB 0005252R, LH

49шт.

0005252R

Track Link

LH

49шт.

2

T209262

Master Track LINK-RH

1шт.

3

AT180028

Pin Fastener

47шт.

4

AT186162

Bushing

47шт.

6

AT219468

Bushing

Master

1шт.

7

T209260

Master Track Pin

1шт.

8

AT219471

Spacer

Master

1шт.

9

T209259

Snap Ring

2шт.

10

AT186161

Seal

94шт.

11

9250500R

Track Chain W/O Shoes

SUB FOR AT311628

1шт.

51

T139614

Bolt

M20 X 55

196шт.

52

T139615

Nut

M20

196шт.

54

AT219482

Open Center 3 Bar Shoe

600 mm

49шт.

AT219483

Open Center 3 Bar Shoe

700 mm

49шт.

AT219484

Open Center 3 Bar Shoe

800 mm

49шт.

T142593

Single Bar Shoe

650 mm

49шт.

4405322

Shoe

49шт.

T186385

Open Center 2 Bar Shoe

700 mm, Double Bar Shoe

49шт.

55

AT311629

Track Assembly With Shoes

600 mm, Complete Track Assembly

1шт.

AT311630

Track Assembly With Shoes

700 mm Complete Track Assembly

1шт.

AT311631

Track Assembly With Shoes

600 mm, Complete Track Assembly

1шт.

56

AT313621

Pin Kit

Master

1шт.
