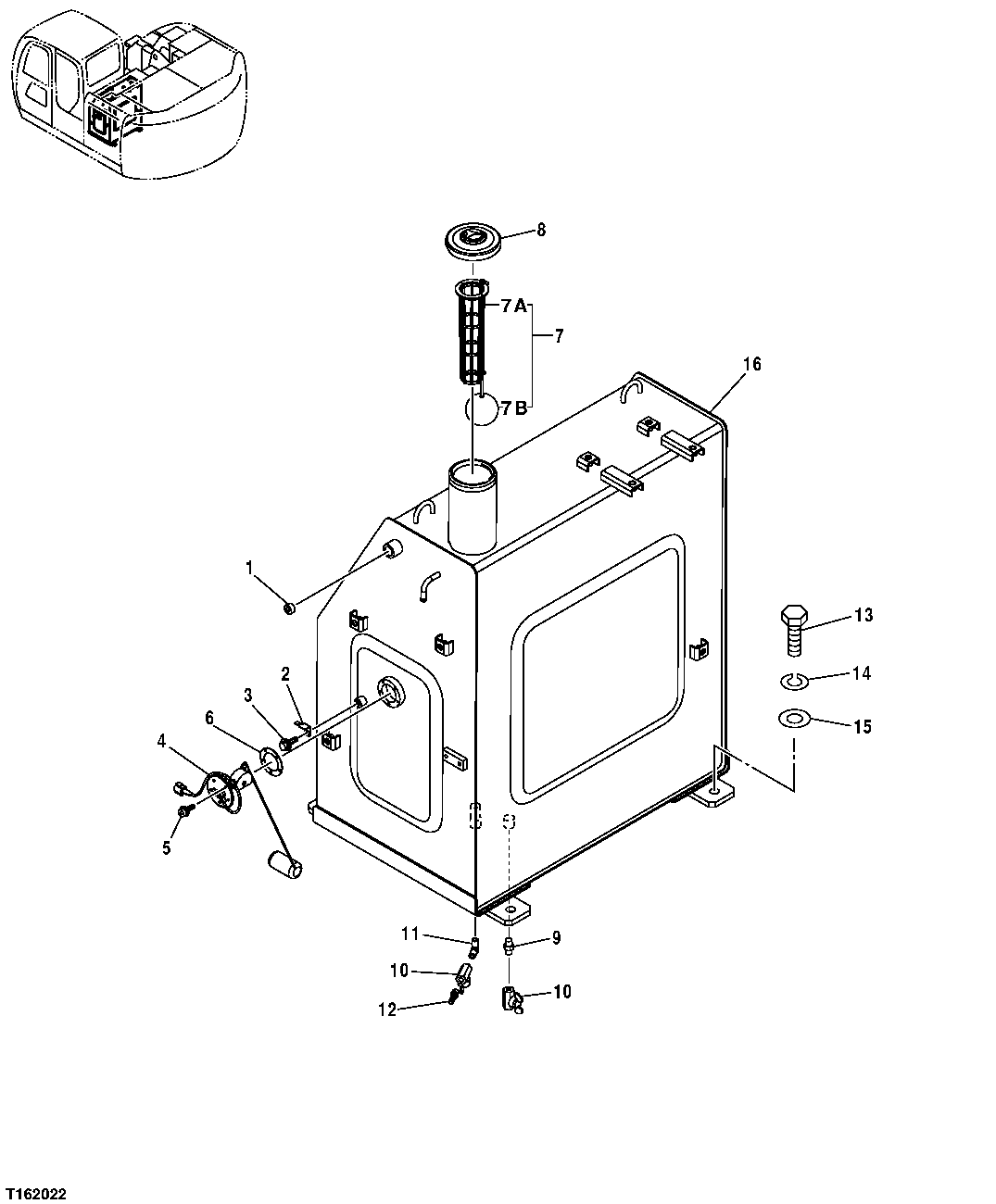

Запчасти John Deere 35D 78 - Fuel Tank and Mounting 0564 FUEL TANK

1

94-2013

Fitting Plug

1шт.

2

4257159

Bracket

1шт.

3

19M8324

Cap Screw

M10 X 16 SUB FOR J011016

1шт.

12M7067

Lock Washer

12 mm

1шт.

4

4660782

Float

SUB FOR 4257128

1шт.

5

21M7278

Screw

M5 X 10 SUB FOR J450510

5шт.

6

T211051

Gasket

SUB FOR U42323

1шт.

7

4353560

Strainer

1шт.

7A

4353560

Strainer

SUB FOR 4372619

1шт.

7B

4372620

Float

1шт.

8

AT321249

Filler Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT323462

Filler Cap

SUB FOR 4361638, CAN BE LOCKED W ITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

AT194969

Key

1шт.

9

T116057

Fitting

1шт.

10

4374265

Drain Valve

2шт.

11

4449361

Elbow Fitting

1шт.

12

4449362

Adapter Fitting

1шт.

13

19M7409

Cap Screw

M16 X 50 SUB FOR J901650

4шт.

14

12H294

Lock Washer

5/8" SUB FOR A590916

4шт.

15

24M7338

Washer

17 X 30 X 3 mm SUB FOR J222016

4шт.

16

5007543

Fuel Tank

1шт.
