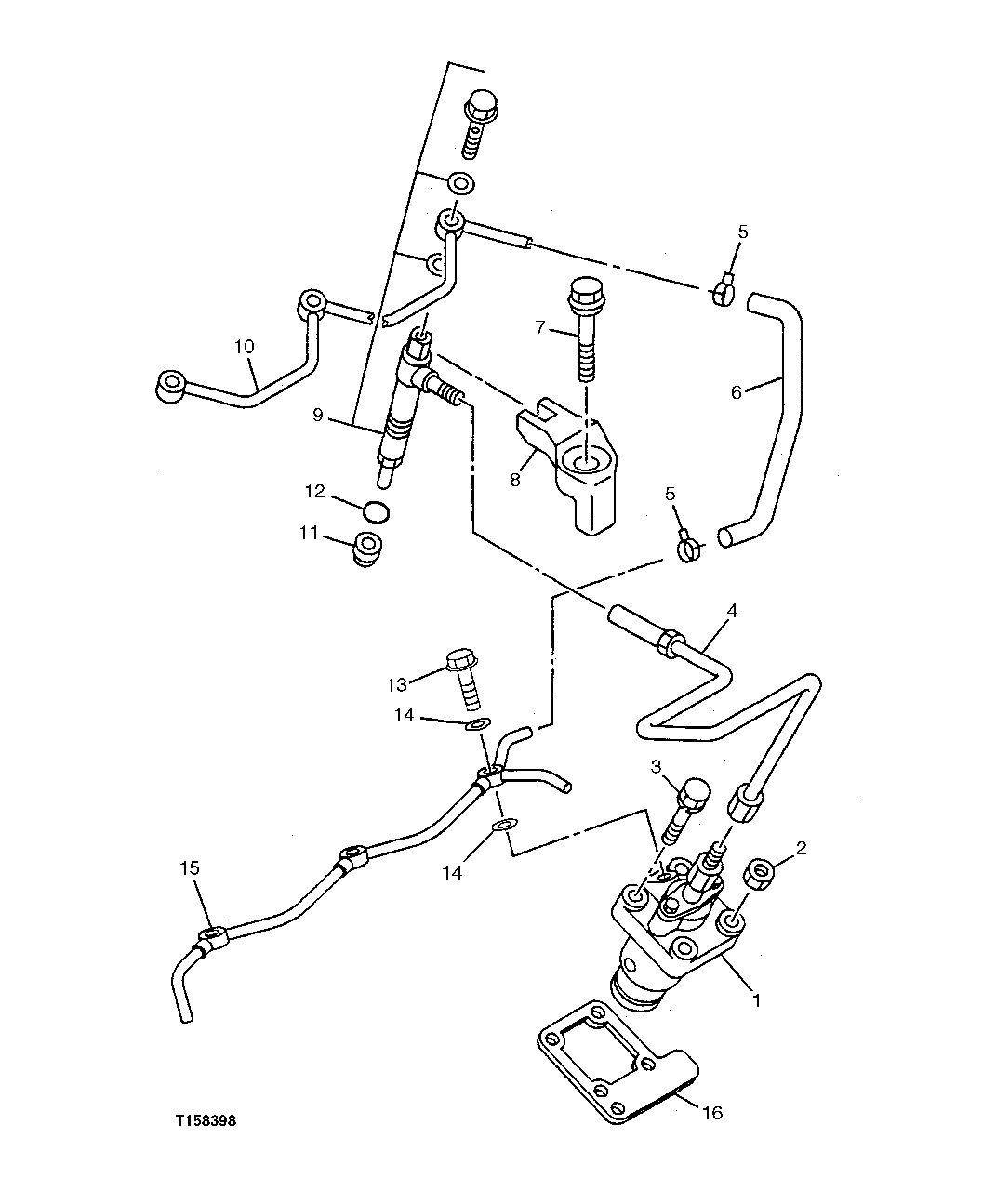

Запчасти John Deere 5C ZTS 32 - Fuel Injection System 0413 Fuel Injection System

1

8973148952

Hydraulic Pump

(SUB FOR 8973148951)(COMP ONENTS ON A ANOTHER PAGE)

3шт.

2

14M7298

Flange Nut

M8 (SUB FOR AT195658, AT259945 OR 4447338)

6шт.

3

19M7866

Screw

M8 X 20 (SUB FOR AT259925)

6шт.

4

8972283851

Line

(SUB FOR 8972283850)

3шт.

5

R56101

Clip

(SUB FOR AT254829 AND AT 261421)( 1097070870 NLA)

3шт.

6

8972292513

Hose

1шт.

7

8944337171

Bolt

3шт.

8

8971952593

Bracket

(SUB FOR 8971952590 OR 8971952591)

1шт.

9

8972293672

Nozzle

(COMPONENTS ON A ANOTHER PAGE)

3шт.

10

8972172470

Line

1шт.

11

8971713310

Gasket

3шт.

12

8943264390

Gasket

3шт.

13

8943796880

Bolt

3шт.

14

8941445880

Gasket

6шт.

15

8972289040

Line

(SUB FOR AT261306)

1шт.

16

8972272821

Shim

0.2MM (.008 IN.)

ARшт.

8972272831

Shim

0.3MM (.012 IN.)

ARшт.

8972272841

Shim

0.4MM (.016 IN.)

ARшт.

8972272851

Shim

0.5MM (.020 IN.)

ARшт.

8972272861

Shim

0.6MM (.024 IN.)

ARшт.

8972272871

Shim

0.7MM (.028 IN.)

ARшт.

8972272881

Shim

0.8MM (.031 IN.)

ARшт.

8972272891

Shim

0.10MM (.039 IN.)

ARшт.

8972272901

Shim

0.12MM (.047 IN.)

ARшт.
