13 - Propel Motor, Gearbox and Sprocket (Complete)

Запчасти John Deere 5C ZTS 13 - Propel Motor, Gearbox and Sprocket (Complete) 0267 Hydraulic Drive Motor

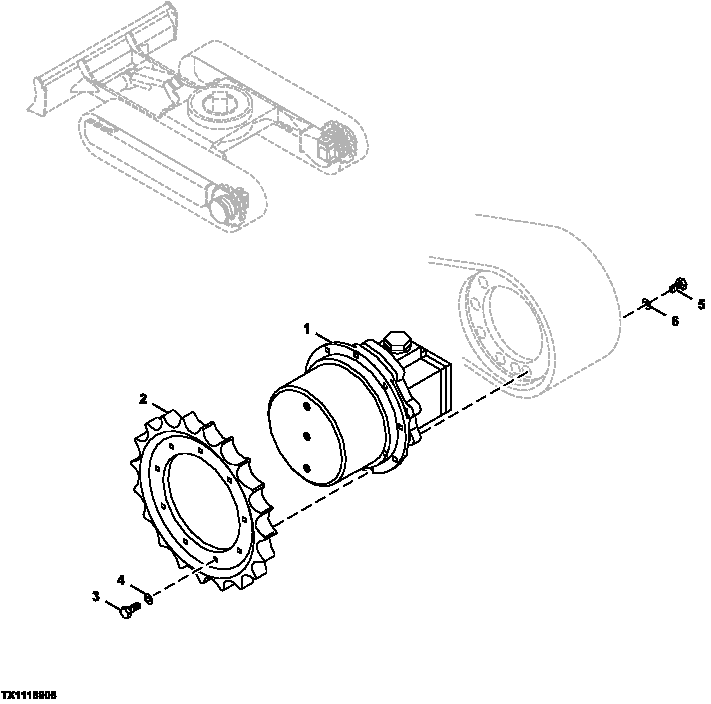

Схема запчастей John Deere 5C ZTS - 13 - Propel Motor, Gearbox and Sprocket (Complete) 0267 Hydraulic Drive Motor
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4420996

Hydraulic Motor

Components Listed On Another Page

1шт.

2

2043505

Chain Sprocket

1шт.

3

19M7403

Cap Screw

M12 X 35

9шт.

4

12M7058

Lock Washer

12 mm

9шт.

5

19M8011

Cap Screw

M12 X 30 Propel Motor Mounting

18шт.

6

12M7058

Lock Washer

12 mm Propel Motor Mounting

18шт.

Выбрано товаров: 6
