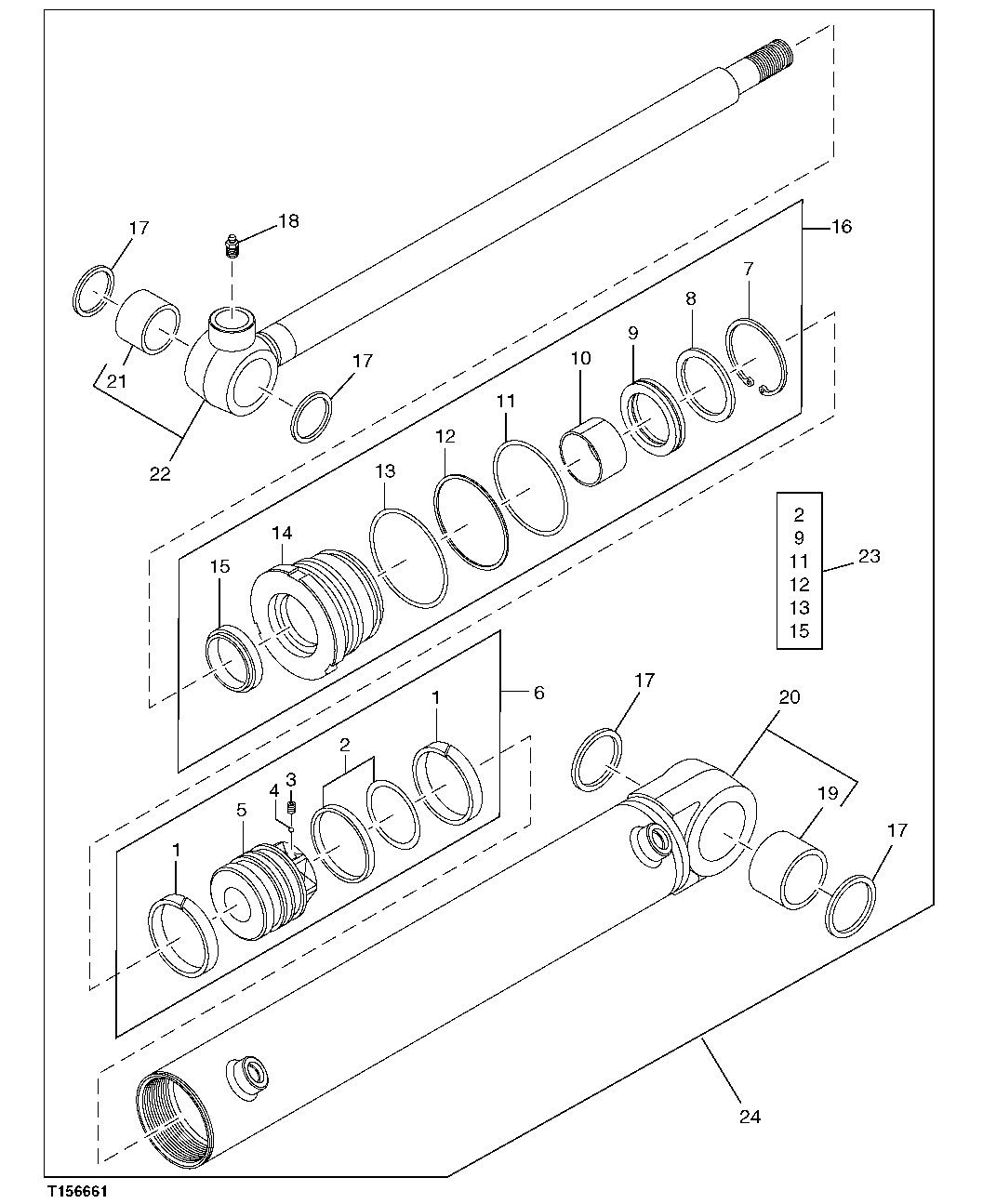

Запчасти John Deere 5C ZTS 206 - BOOM SWING CYLINDER (COMPONENTS) 4365 Cylinders

1

0479010

Ring

2шт.

2

0432304

Ring

(A) (SUB FOR 0479011)

1шт.

3

0479012

Set Screw

1шт.

4

0431910

Ball

(SUB FOR 0429917 OR AT203717)

1шт.

5

0481203

Piston

1шт.

0479012

Set Screw

1шт.

6

Piston

( 0679803 NLA) SUB INDIVIDUAL COMPONENTS

1шт.

7

0479005

Ring

1шт.

8

0479004

Seal

1шт.

9

0391715

Ring

(A) (SUB FOR 0481202)

1шт.

10

1162404

Bushing

(SUB FOR 0481103)

1шт.

11

A811070

O-Ring

(A)

1шт.

12

0479008

Back-Up Ring

(A)

1шт.

13

TH105684

O-Ring

(A)

1шт.

14

Cylinder Head

1шт.

15

0682001

Ring

(A) (SUB FOR 0658606)

1шт.

16

0847203

Cylinder Head

( 0847203 NLA) ( 0847205 NLA) (FURNISH COMPONENTS)

1шт.

17

4473086

Seal

(SUB FOR 0480915, 4244703 OR 4279530)

4шт.

18

T116334

Lubrication Fitting

1шт.

19

4428636

Bushing

1шт.

20

0847201

Hydraulic Cylinder Barrel

1шт.

21

4428636

Bushing

1шт.

22

0847202

Hydraulic Cylinder Rod

1шт.

23

0847204

Seal Kit

(INCLUDES PARTS MARKED (A))

1шт.

24

4472580

Hydraulic Cylinder

1шт.
