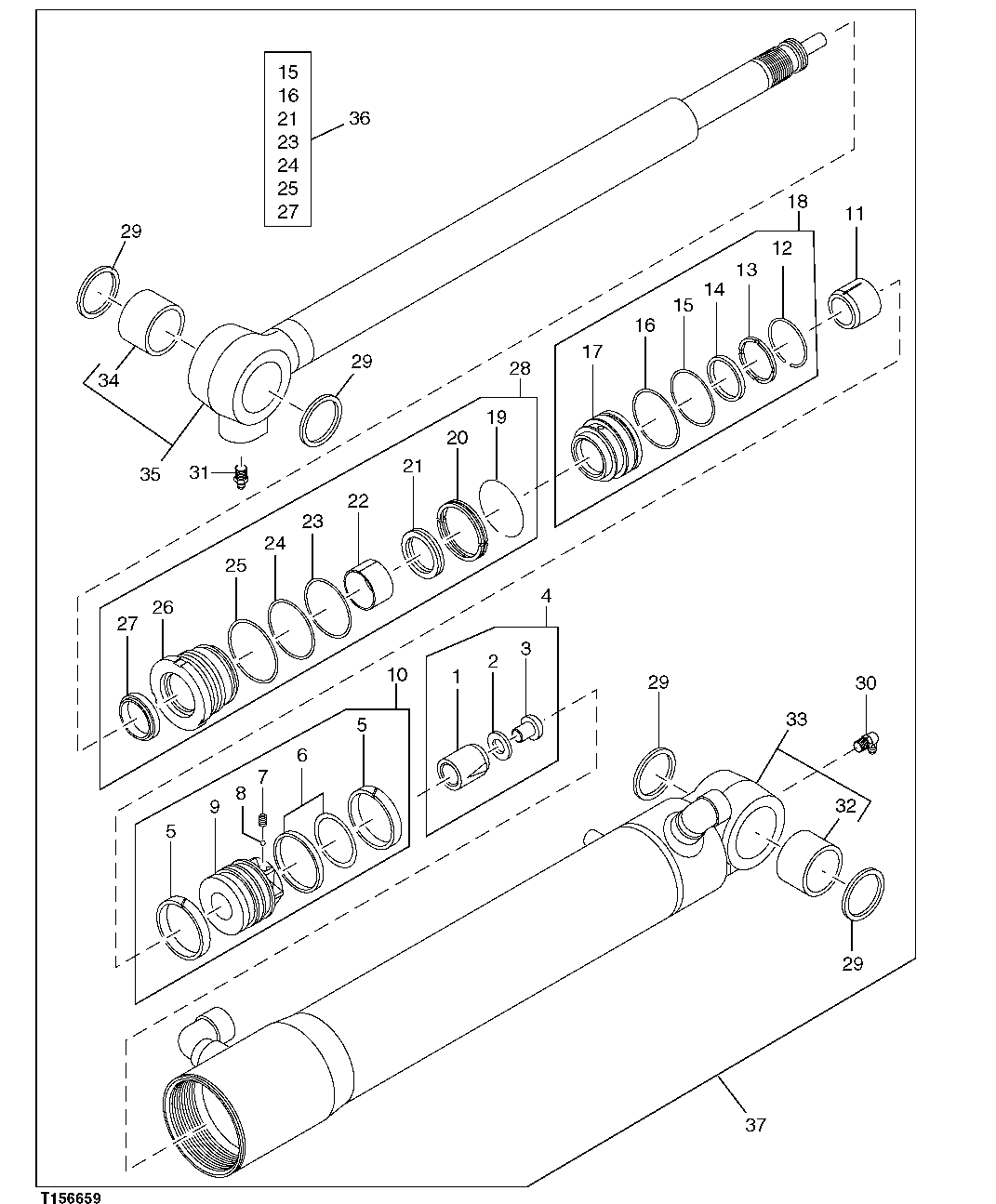

Запчасти John Deere 5C ZTS 200 - ARM CYLINDER (COMPONENTS) 3365 Hydraulic Cylinders

1

0813705

Bearing

1шт.

2

0658610

Washer

1шт.

3

0744009

Bolt

1шт.

4

Bearing

( 0813704 NLA) ORDER INDIVIDUAL COMPONENTS

1шт.

5

0495006

Wear Ring

2шт.

6

0431907

Ring

1шт.

7

0479012

Set Screw

1шт.

8

0431910

Ball

1шт.

9

0495005

Piston

1шт.

10

Piston

( 0744005 NLA)

1шт.

11

0744006

Bearing

1шт.

12

0494905

Stop

1шт.

13

0494904

Spacer

1шт.

14

0494903

Ring

1шт.

15

TH105683

O-Ring

(A)

1шт.

16

0430902

Back-Up Ring

(A)

1шт.

17

0495004

Retainer

1шт.

18

0744004

Retainer

1шт.

19

0637001

Stop

1шт.

20

0495002

Ring

1шт.

21

0481104

Packing

(A)

1шт.

22

1162404

Bushing

(SUB FOR 0481103)

1шт.

23

AT264334

O-Ring

(A) (SUB FOR TH100101)

1шт.

24

0430902

Back-Up Ring

(A)

1шт.

25

A811070

O-Ring

(A)

1шт.

26

0495001

Hydr. Cylinder Rod Guide

1шт.

27

0682001

Ring

(A) (SUB FOR 0658606)

1шт.

28

Cylinder Head

( 0744003 NLA) ( 0847003 NLA) (FURNISH COMPONENTS)

1шт.

29

4473086

Seal

(SUB FOR 0480915, 4244703 OR 4279530)

4шт.

30

AH226482

Lubrication Fitting

(SUB FOR 0225709 OR CH18478)

1шт.

31

T116334

Lubrication Fitting

1шт.

32

4332740

Bushing

1шт.

33

0847001

Hydraulic Cylinder Barrel

1шт.

34

4332740

Bushing

1шт.

35

0847002

Rod

1шт.

36

0744010

Hydraulic Cylinder Kit

(INCLUDES PARTS MARKED (A))

1шт.

37

4472578

Hydraulic Cylinder

1шт.
