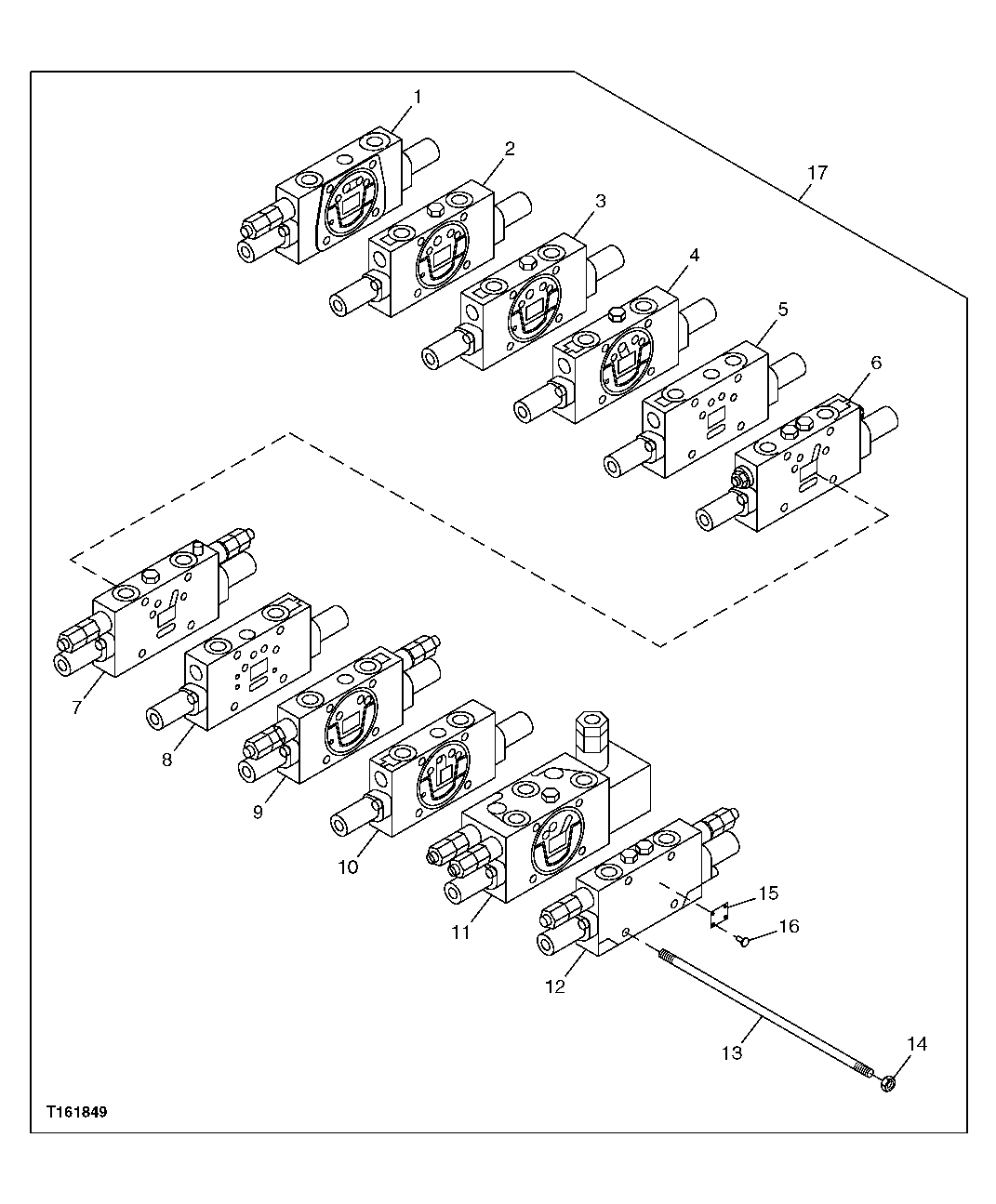

Запчасти John Deere 5C ZTS 171 - FLOW CONTROL VALVE COMPLETE SECTIONS 3362 CONTROL & LOAD HOLDING VALVES

1

4486828

Flow Control Hyd. Valve

FLOW COMBINER (COMPONENTS ON ANOTHER PAGE)

1шт.

2

4486827

Flow Control Hyd. Valve

BLADE (COMPONENTS ON ANOTHER PAGE)

1шт.

3

4486826

Flow Control Hyd. Valve

SWING (COMPONENTS ON ANOTHER PAGE)

1шт.

4

4486825

Flow Control Hyd. Valve

BOOM SWING (COMPONENTS ON ANOTHER PAGE)

1шт.

5

4486815

Flow Control Hyd. Valve

FLOW COMBINER SWITCH (CO MPONENTS ON ANOTHER PAGE)

1шт.

6

4486824

Flow Control Hyd. Valve

AUXILIARY (COMPONENTS ON ANOTHER PAGE)

1шт.

7

4486813

Flow Control Hyd. Valve

ARM (COMPONENTS ON ANOTHER PAGE)

1шт.

8

4486823

Flow Control Hyd. Valve

RIGHT HAND PROPEL (COMP ONENTS ON ANOTHER PAGE)

1шт.

9

4486811

Flow Control Hyd. Valve

INLET (COMPONENTS ON ANOTHER PAGE)

1шт.

10

4486822

Flow Control Hyd. Valve

LEFT HAND PROPEL (COMP ONENTS ON ANOTHER PAGE)

1шт.

11

4486821

Flow Control Hyd. Valve

BOOM (COMPONENTS ON ANOTHER PAGE)

1шт.

12

4486820

Valve Stack

BUCKET (COMPONENTS ON ANOTHER PAGE)

1шт.

13

0848101

Rod

4шт.

14

14M7273

Nut

M8 (SUB FOR 0168203)

4шт.

15

Identification Plate

1шт.

16

Screw

2шт.

17

4473043

Hyd Actuated Control Valve

1шт.
