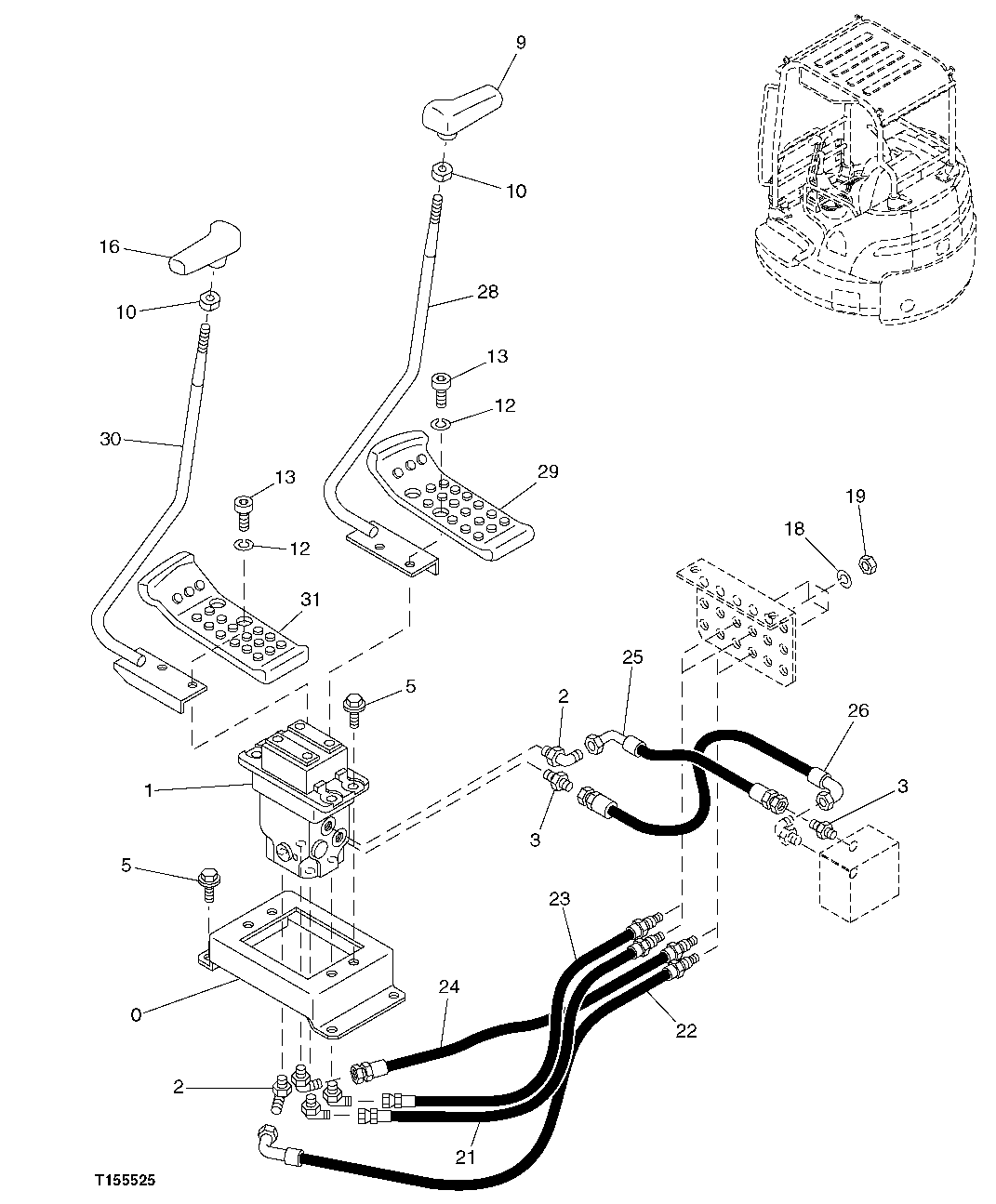

Запчасти John Deere 5C ZTS 164 - PROPEL CONTROL LEVER (FRONT AND SWING) 3362 CONTROL & LOAD HOLDING VALVES

0

8088514

Bracket

(SUB FOR 8086778)

1шт.

1

4467243

Hyd Actuated Control Valve

(COMPONENTS ON ANOTHER PAGE)

1шт.

2

4434981

Elbow Fitting

5шт.

M800650

Packing

1шт.

3

4042030

Adapter Fitting

2шт.

M800650

Packing

1шт.

5

19M7407

Cap Screw

M8 X 25

8шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

12M7056

Lock Washer

8 mm

8шт.

9

2051176

Grip

(SUB FOR 2045468)

1шт.

10

4424185

Nut

2шт.

12

12M7056

Lock Washer

8 mm

4шт.

13

19M7881

Screw

M8 X 20

4шт.

16

2051177

Grip

(SUB FOR 2045469)

1шт.

18

12M7058

Lock Washer

12 mm

4шт.

19

14M7275

Nut

M12

4шт.

21

4472974

Hose

1шт.

22

4472975

Hose

1шт.

23

4472976

Hose

1шт.

24

4472977

Hose

1шт.

25

4472978

Hose

1шт.

26

4472979

Hose

1шт.

28

8088394

Lever

1шт.

29

1030519

Pedal

(RH)

1шт.

30

8085214

Lever

1шт.

31

1030516

Pedal

(LH)

1шт.
