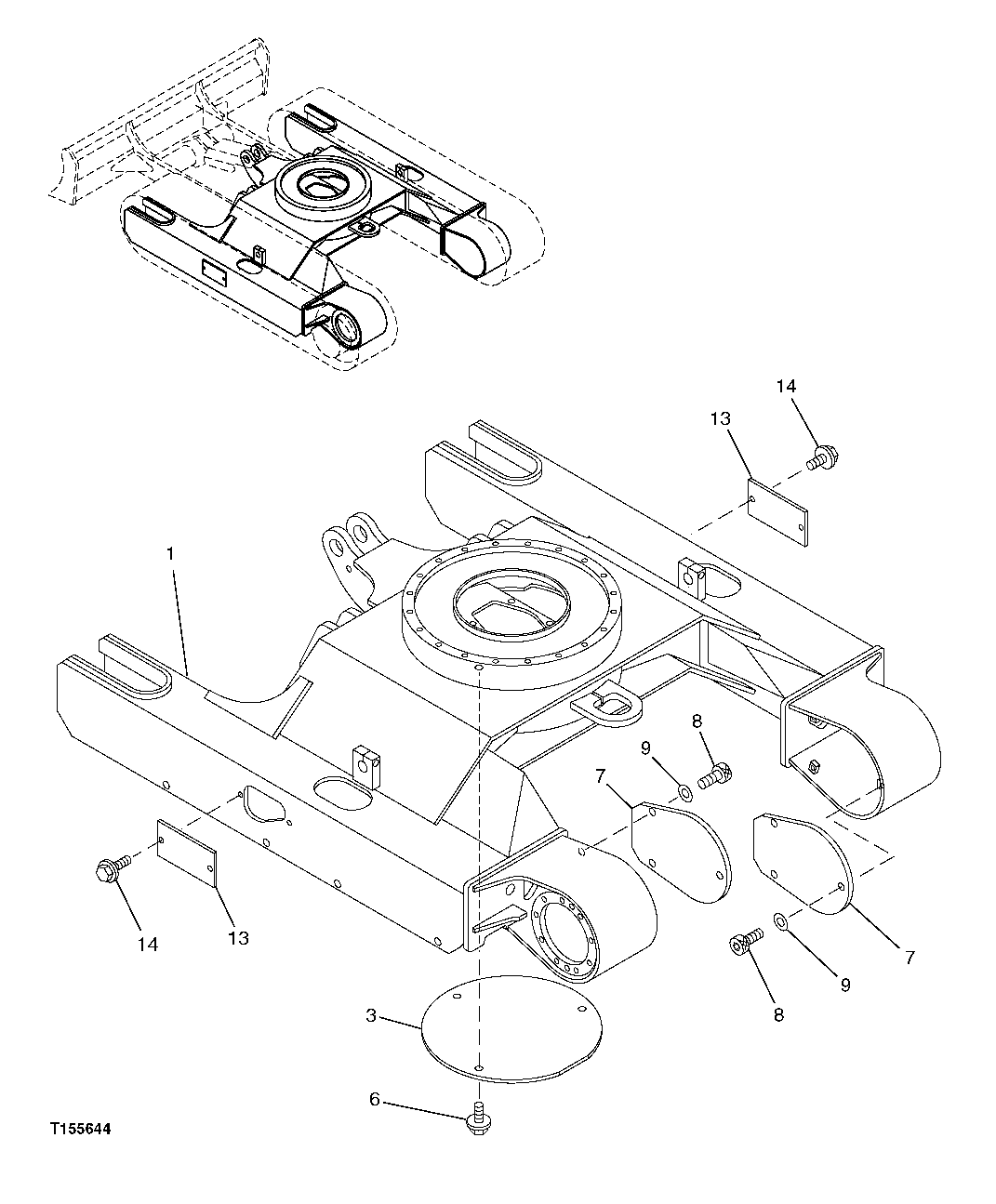

Запчасти John Deere 5C ZTS 7 - Track Frame 0131 Track Frames

1

8090032

Frame

1шт.

3

4365090

Cover

1шт.

6

19M7872

Cap Screw

M12 X 25 SUB FOR THJ051225

3шт.

12M7067

Lock Washer

12 mm

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

7

4406460

Cover

2шт.

8

19M8440

Screw

M10 X 25

6шт.

9

24M7096

Washer

10.500 X 18 X 1.600 mm

6шт.

13

4475138

Plate

2шт.

14

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.
