Запчасти John Deere 5C ZTS 154 - PILOT CONTROLLER VALVE (FRONT, SWING) ( -221956) ( - 221956) 3315 Controls Linkage

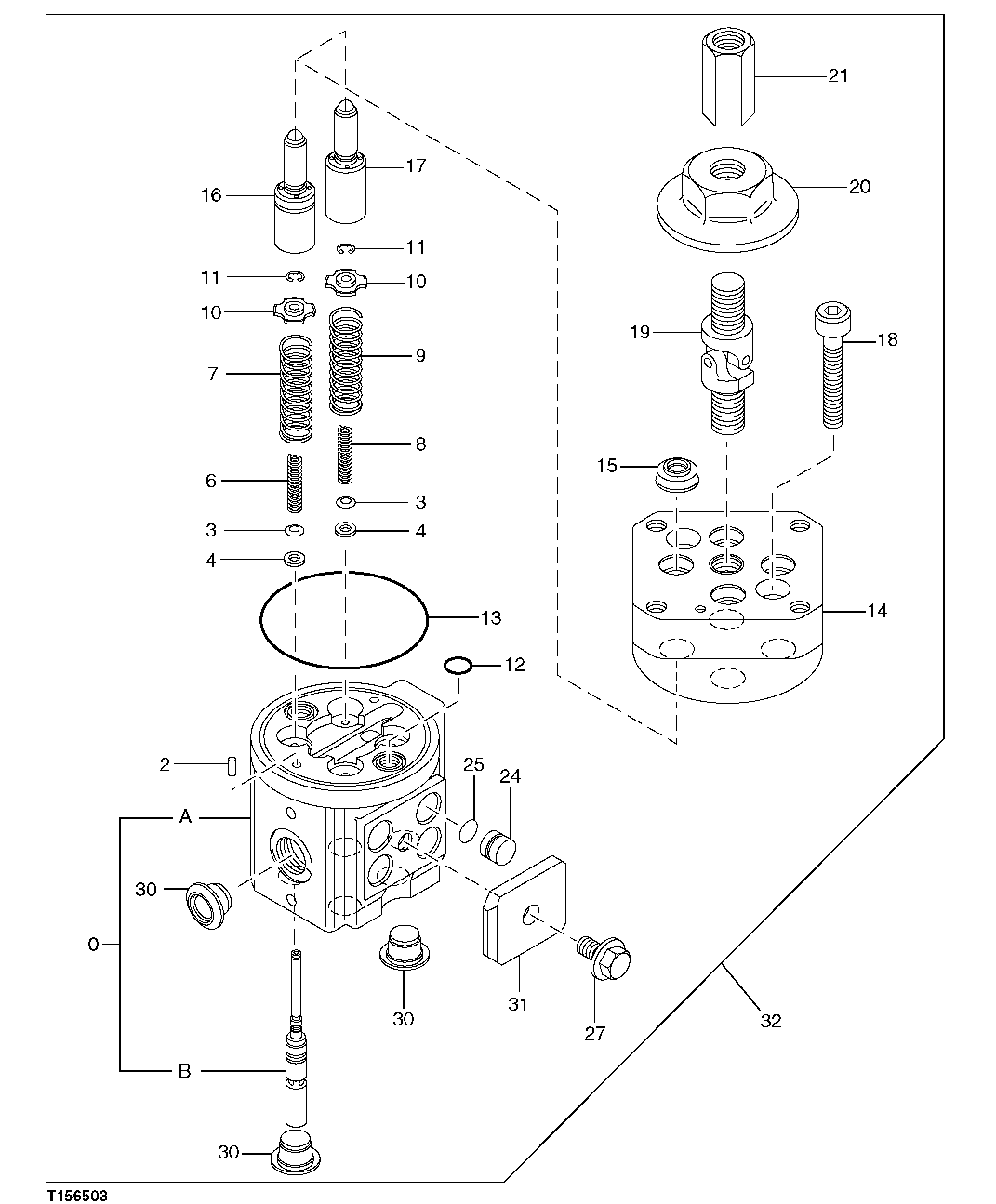

Схема запчастей John Deere 5C ZTS - 154 - PILOT CONTROLLER VALVE (FRONT, SWING) ( -221956) ( - 221956) 3315 Controls Linkage

Артикул

Название

Примечание

Количество

0

Housing

1шт.

0A

Housing

1шт.

0B

Valve Spool

4шт.

2

J400408

Pin

2шт.

3

4662206

Shim

(SUB FOR 4203411)

12шт.

4

4410898

Spacer

4шт.

6

4425414

Spring

2шт.

7

4421771

Spring

2шт.

8

4429120

Spring

2шт.

9

4446960

Spring

2шт.

10

4429119

Guide

4шт.

11

4437333

Snap Ring

4шт.

12

4431914

O-Ring

2шт.

13

4431915

O-Ring

1шт.

14

Manifold

( 2044350 NLA) (SUB 9234284, 4477 852, 9759158 AND 9759157 (MANIFOLD HAS ONE PUNCH MARK ON TOP FACE))

1шт.

9234284

Manifold

(SUB FOR 2044350 ) (ALSO ORDER 44 77852, 9759158 AND 9759157)(MANIFO LD HAS TWO PUNCH MARKS ON TOP FACE )

1шт.

15

4447050

Seal

(SUB 9234284, (4) 4477852, (2) 975915 8 AND (2) 9759157 ) (USE WITH 2044350)

4шт.

Seal

(SUB FOR 4447050 ) (ALSO ORDER 9234284, 9759158 AND 9759157 ) ( USE WITH 9234284)( 4477852 NLA)

4шт.

16

Piston

( 9754825 NLA) (SUB 9234284, (4) 4477852, (2) 9759158 AND ( 2) 9759157 ) (USE WITH 2044350 )

2шт.

9759157

Piston

(SUB FOR 9754825 ) (ALSO ORDER (4) 4477852, 9234284 AND (2) 9759158 ) (USE WITH 9234284)

2шт.

17

Piston

( 9754826 NLA) (SUB 9234284, (4) 4477852, (2) 9759158 AND ( 2) 9759157 ) (USE WITH 2044350 )

2шт.

9759158

Piston

(SUB FOR 9754826 ) (ALSO ORDER (4) 4477852, (2) 9759158 AND 9234284 ) (USE WITH 9234284)

2шт.

18

19M8923

Screw

M8 X 45 (SUB FOR J780845)

2шт.

19

4335060

Universal Joint

1шт.

20

4639115

Cam

(SUB FOR 4437106)

1шт.

21

4182067

Jointer

1шт.

24

4442323

Pipe Plug

4шт.

25

CH11560

Packing

4шт.

27

19M7932

Cap Screw

M8 X 16

1шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

1шт.

12M7056

Lock Washer

8 mm

1шт.

30

4365332

Cap

6шт.

31

4467104

Plate

1шт.

32

Hyd Actuated Control Valve

(COMPLETE ASSEMBLY ON ANO THER PAGE) ( 4462567 NLA)

1шт.

Выбрано товаров: 34
