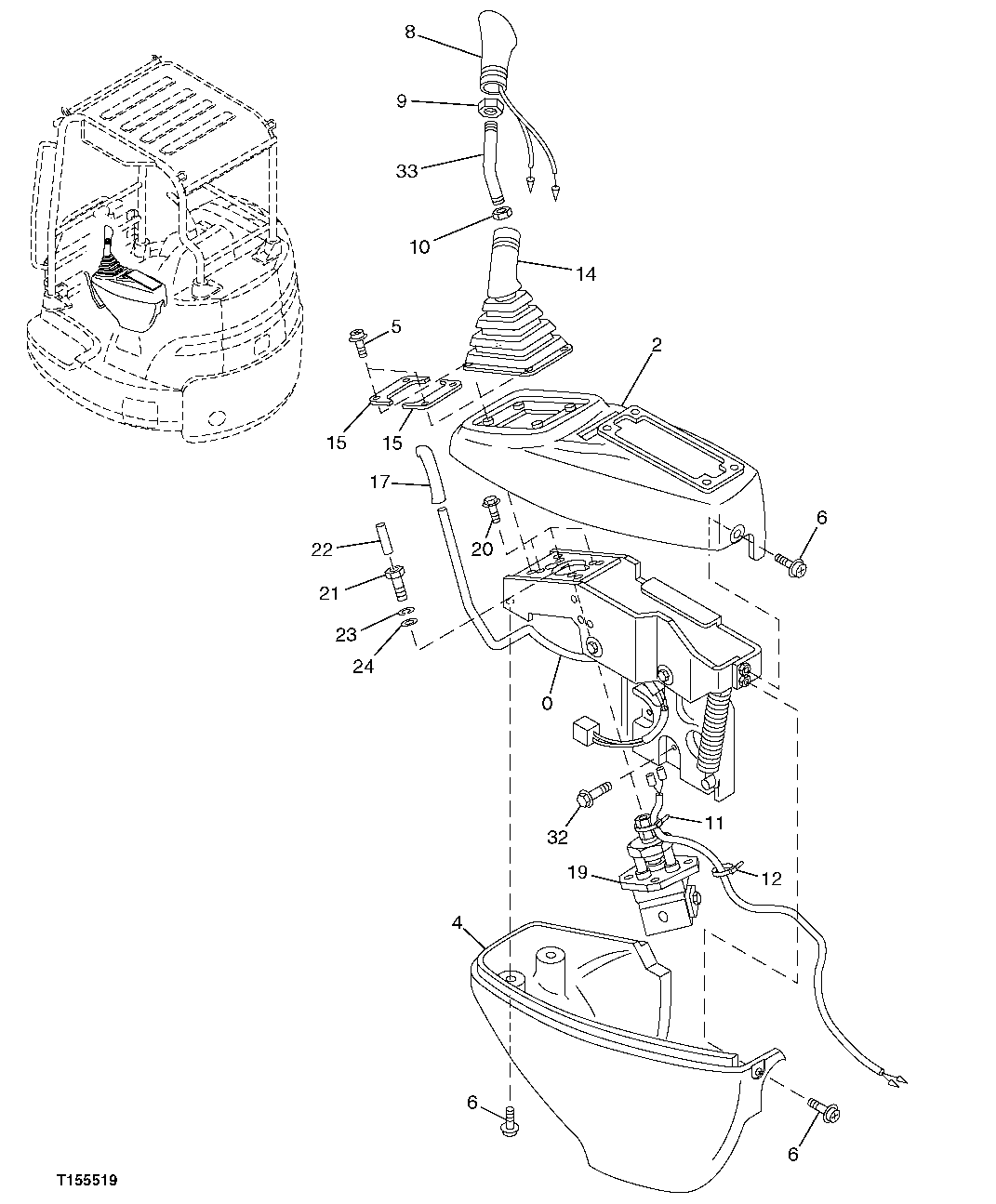

Запчасти John Deere 5C ZTS 152 - CONSOLE (LEFT) AND PILOT CONTROL LEVER (DIG AND SWING) 3315 Controls Linkage

0

4458282

Frame

1шт.

2

4458283

Cover

1шт.

4

4458284

Cover

1шт.

5

21M7277

Screw

M6 X 25

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

6

Screw With Washer

J680616 NLA

4шт.

21M7577

Socket Head Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

8

2045472

Grip

1шт.

9

14M7357

Nut

M12 SUB FOR J952012

1шт.

10

14M7141

Nut

M14

1шт.

11

H77698

Tie Band

1шт.

12

R44302

Tie Band

SUB FOR 4326365

1шт.

14

2045470

Boot

1шт.

15

4458366

Plate

2шт.

17

4377660

Grip

1шт.

19

Hyd Actuated Control Valve

COMPONENTS ON ANOTHER PAGE ( 4462567 NLA)

1шт.

4632725

Valve

(COMPONENTS NOT CURRENTLY AVAILABLE)

1шт.

20

Bolt

( J020816 NLA)

3шт.

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm

3шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

3шт.

Bolt

( J260820 NLA)

3шт.

19M7139

Cap Screw

M8 X 20

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

21

4438279

Bolt

1шт.

4609956

Bolt

1шт.

22

34M7086

Spring Pin

3 X 32 mm

1шт.

23

Washer

12M7065 NLA

1шт.

24

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

1шт.

32

19M7881

Screw

M8 X 20

3шт.

12M7056

Lock Washer

8 mm

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.

33

4488460

Lever

1шт.
