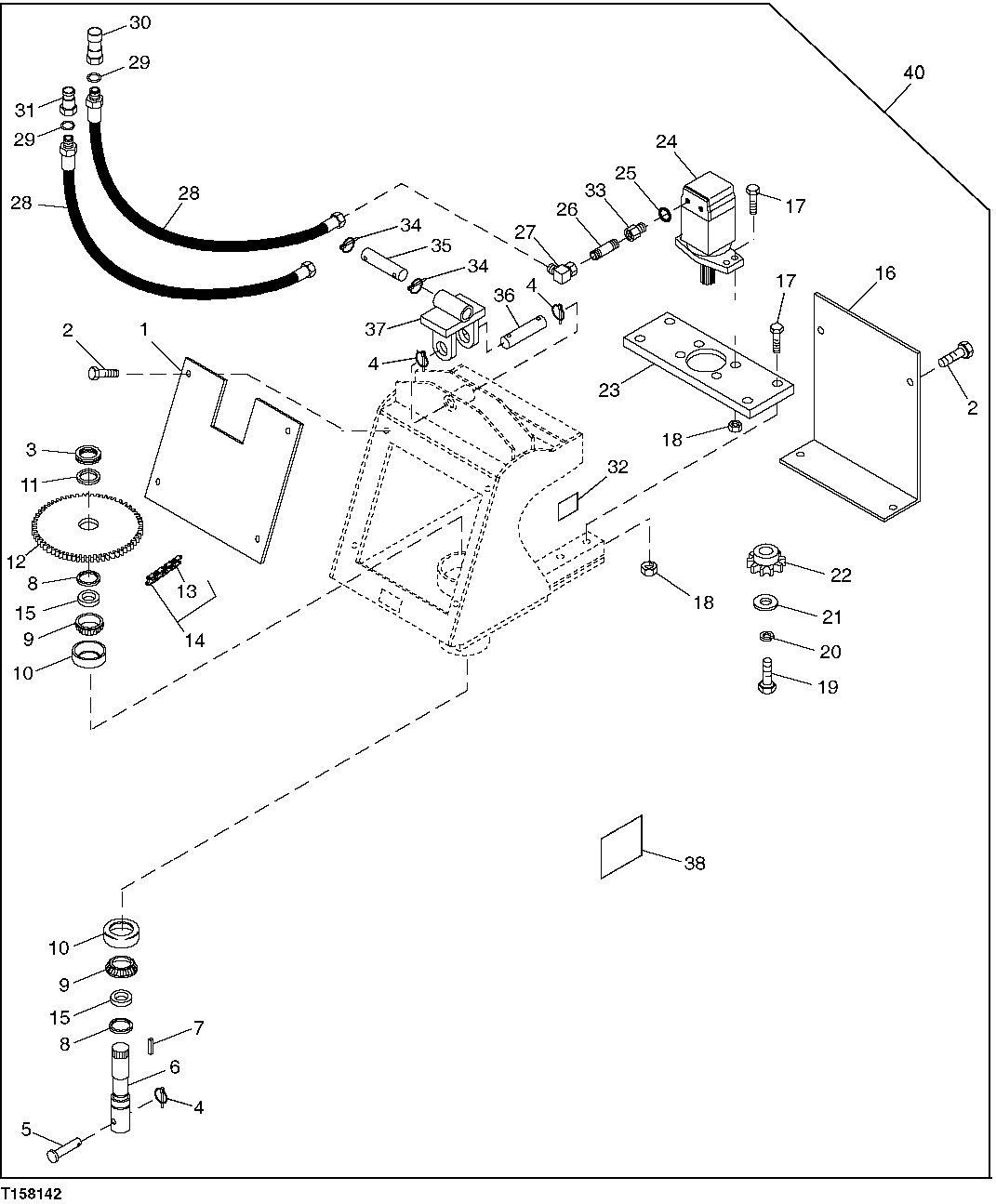

Запчасти John Deere 5C ZTS 150 - COMPLETE MOTOR AND CA15 CHAIN DRIVE SPROCKET AUGER 3302 Bucket With Teeth

1

KV15978

Cover

1шт.

2

19H1227

Cap Screw

1/4" X 1/2"

4шт.

3

F1483R

Nut

1шт.

4

M72598

Quick Lock Pin

1шт.

5

KV18463

Pin

1шт.

6

KV15996

Shaft

1шт.

7

KV15995

Shaft Key

1шт.

8

E56866

Seal

2шт.

9

JD8984

Bearing Cone

1шт.

10

JD7414

Bearing Cup

2шт.

11

KV15992

Lock Plate

1шт.

12

KV15993

Drive Sprocket

1шт.

13

AN151830

Chain Link

ARшт.

14

KV15991

Roller Chain

1шт.

15

KV15994

Structural Tube

1шт.

16

KV15998

Cover

1шт.

17

19H2735

Cap Screw

1/2" X 2"

8шт.

18

E62934

Flange Nut

12.700 mm (1/2")

8шт.

19

19H2676

Cap Screw

3/8" X 1"

1шт.

20

12H304

Lock Washer

3/8"

1шт.

21

24H1259

Washer

7/16" X 1-1/2" X 0.065"

1шт.

22

KV15983

Drive Sprocket

1шт.

23

KV15982

Plate

1шт.

24

KV20301

Motor

(COMPONENTS ON ANOTHER PAGE)

1шт.

25

R26906

O-Ring

2шт.

26

KV17684

Threaded Nipple

(SHORT)

1шт.

KV17685

Threaded Nipple

(LONG)

1шт.

27

T51900

Elbow Fitting

2шт.

28

KV15980

Hydraulic Hose

2шт.

29

R26375

O-Ring

2шт.

30

KV14216

Hyd. Quick-Connect Coupler

FEMALE

1шт.

31

KV14217

Hyd. Quick-Connect Coupler

MALE

1шт.

32

KV20300

Label

Danger

2шт.

33

PMH1231

Adapter Fitting

(ALSO ORDER R26906)

2шт.

34

T184980

Pin

2шт.

35

AT191250

Pin

1шт.

36

AT191248

Pin

1шт.

37

AT191249

Bracket

1шт.

38

T211966

Label

(SUB FOR KV22124 OR KV15801)

1шт.

39

N231143

Pin Fastener

1шт.

40

Kit

(CA15) (SUB FOR AT280185 (AT306937 NLA))

1шт.
