Запчасти John Deere 5C ZTS 144 - Hydraulic Breaker Bracket (HB30, HB50) 3302 Bucket With Teeth

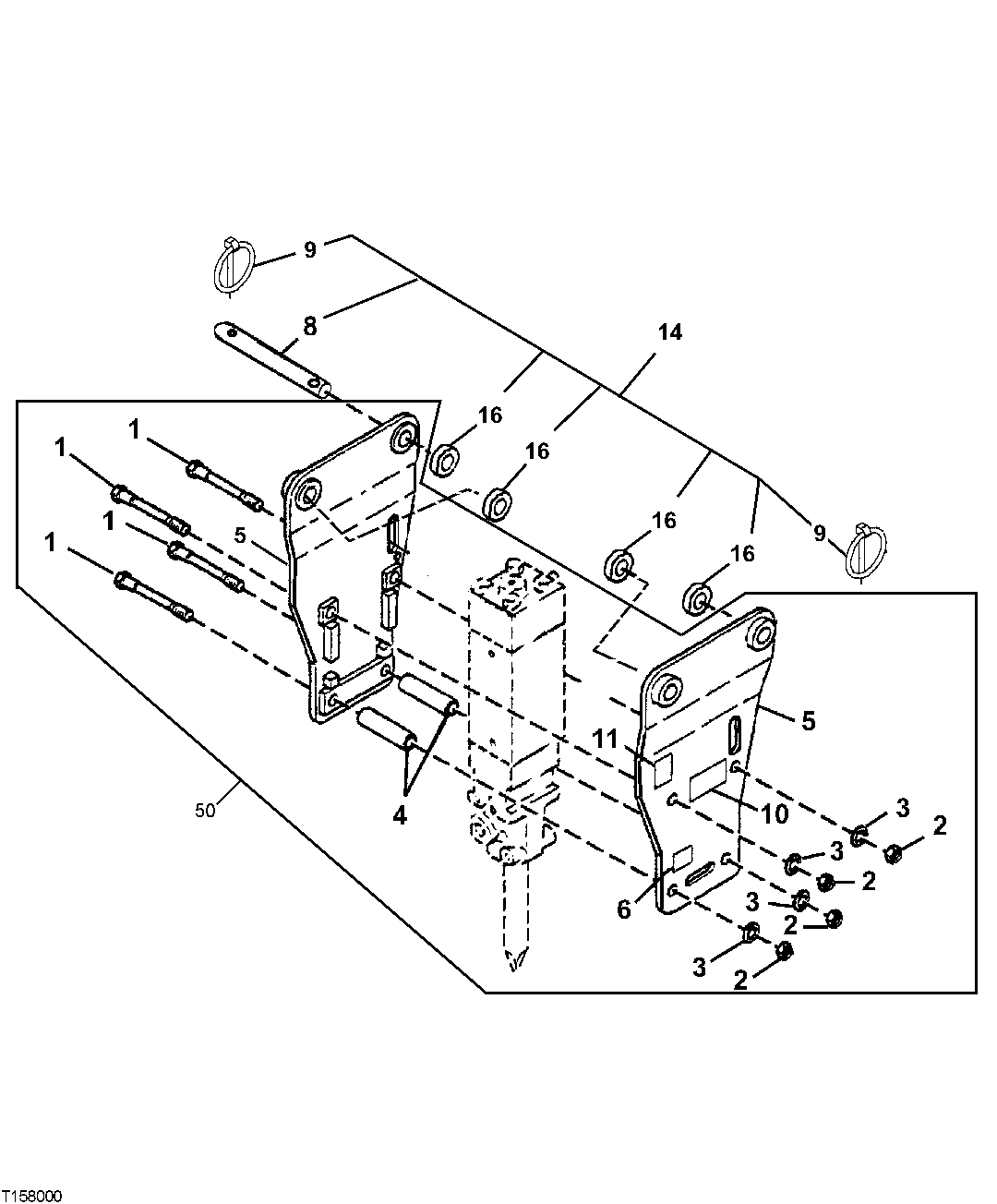

Схема запчастей John Deere 5C ZTS - 144 - Hydraulic Breaker Bracket (HB30, HB50) 3302 Bucket With Teeth

Артикул

Название

Примечание

Количество

1

19H3529

Cap Screw

1" X 8"

4шт.

2

14H1048

Nut

1"

4шт.

3

24M7294

Washer

26 X 39 X 4 mm

4шт.

4

KV17493

Bushing

2шт.

5

KV21386

Plate

(SUB FOR KV17490)(MATCHED SET)

1шт.

6

ES10894

Label

(FLYING DEBRIS)

2шт.

8

T185390

Pin

2шт.

9

AH89461

Pin Fastener

4шт.

10

KV22127

Label

(SUB FOR KV16406)(WORKSITE PRO™ - HB30)

2шт.

KV22128

Label

(SUB FOR KV16407)(WORKSITE PRO™ - HB50)

2шт.

11

N279497

Label

(WARNING, ACCUMULATOR)

2шт.

14

AT190489

Pin & Bushing Kit

(WHOLE GOODS)

1шт.

16

T185391

Bushing

4шт.

50

Kit

(WHOLE GOODS) (HB30) ( AT28018 2 NLA) (CONTAINS PARTS ON ANOTH ER PAGE) (ALSO ORDER AT190489)

1шт.

Kit

(WHOLE GOODS) (HB50) ( AT28018 3 NLA) (CONTAINS PARTS ON ANOTH ER PAGE) (ALSO ORDER AT190489)

1шт.

Выбрано товаров: 15
