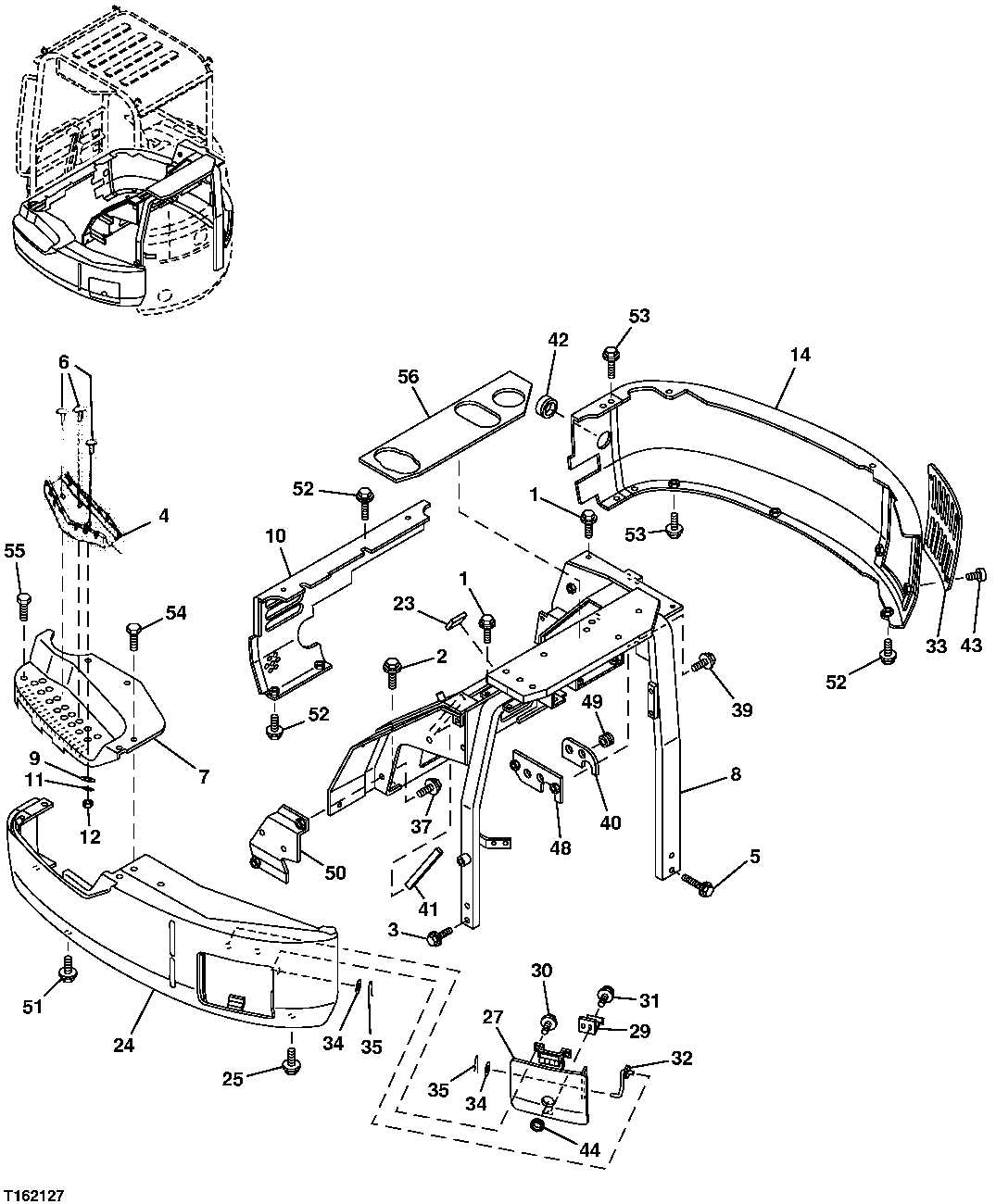

Запчасти John Deere 5C ZTS 97 - CANOPY COVERS 1912 HOOD & HOOD SUPPORTS

1

19M7881

Screw

M8 X 20

6шт.

12M7056

Lock Washer

8 mm

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

2

19M7493

Cap Screw

M12 X 40

4шт.

12M7058

Lock Washer

12 mm

4шт.

24M7044

Washer

13 X 20 X 2 mm

4шт.

3

19M7496

Cap Screw

M12 X 45

2шт.

12M7058

Lock Washer

12 mm

4шт.

24M7044

Washer

13 X 20 X 2 mm

4шт.

4

4605456

Step

1шт.

5

19M7073

Cap Screw

M12 X 50

2шт.

12M7058

Lock Washer

12 mm

4шт.

24M7044

Washer

13 X 20 X 2 mm

4шт.

6

21M7455

Screw

M6 X 20 SUB FOR J650620 OR 21M7085

3шт.

7

4470265

Cover

SUB FOR 4470266

1шт.

8

6020621

Support

1шт.

9

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR J253106

3шт.

10

7041742

Cover

1шт.

11

12M7006

Lock Washer

6 mm SUB FOR J252106

3шт.

12

14M7272

Nut

M6 SUB FOR J231106

3шт.

14

7041741

Cover

1шт.

23

4418114

Isolator

SUB FOR 4392475

1шт.

24

6020714

Cover

1шт.

25

19M8008

Cap Screw

M8 X 35 SUB FOR J090835

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

27

7041706

Cover

1шт.

29

4405877

Spring

1шт.

30

19M8425

Cap Screw

M6 X 16 SUB FOR J090616

2шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

31

21M7395

Screw

M4 X 8

2шт.

12M7064

Lock Washer

5 mm

2шт.

T116080

Washer

4.300 X 9 X 0.800 mm (0 .169" X 0.354" X 1/32")

2шт.

32

9743982

Rod

1шт.

33

2043749J

Cover

SUB FOR 2043749

1шт.

34

24M7139

Washer

6.400 X 18 X 1.600 mm SUB FOR 4345258

2шт.

35

M800051

Pin

2шт.

37

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

39

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

40

4468220

Isolator

1шт.

41

4468103

Isolator

1шт.

42

4143612

Grommet

1шт.

43

21M7267

Screw

M6 X 20

4шт.

44

4299864

Grommet

1шт.

48

9758015

Plate

1шт.

49

4334966

Bushing

2шт.
