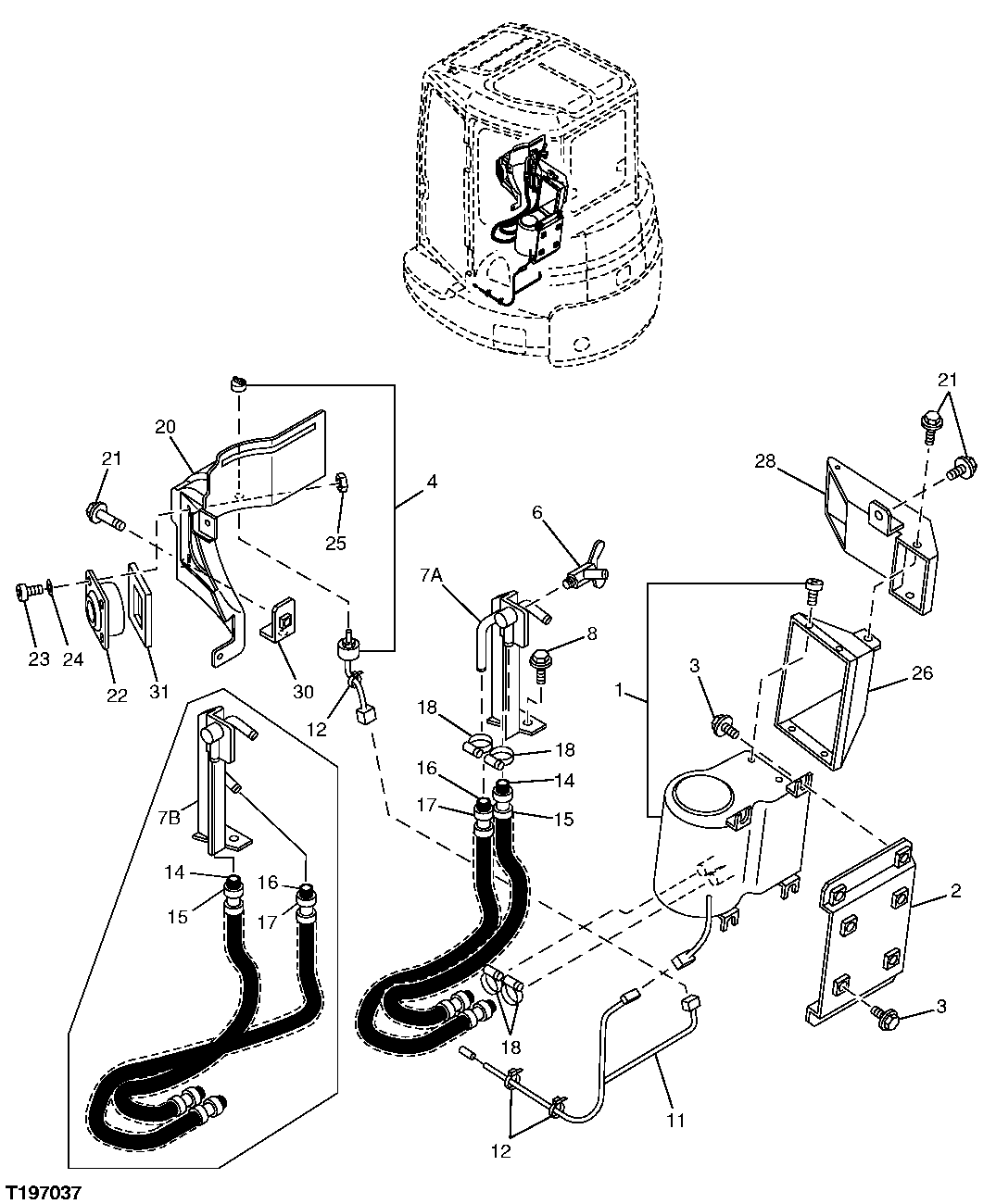

Запчасти John Deere 5C ZTS 93 - Cab Heater 1831 HEATER, HOSES & CONTROLS

1

4464959

Heater

1шт.

2

8086840

Bracket

1шт.

3

19M7938

Cap Screw

M10 X 20 SUB FOR J051020

8шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

8шт.

12M7066

Lock Washer

10 mm

8шт.

4

4294504

Temperature Switch

1шт.

6

4508050

Drain Valve

1шт.

7A

7041733

Electrical Connector Assy

1шт.

7B

7044953

Union Fitting

1шт.

8

19M7881

Screw

M8 X 20

2шт.

12M7056

Lock Washer

8 mm

2шт.

24M7036

Washer

9 X 16 X 1.600 mm

2шт.

11

4459839

Wiring Harness

1шт.

12

H77698

Tie Band

3шт.

14

4475415

Bulk Hose

CUT TO LENGTH

1шт.

15

4475423

Sleeve

SUB FOR 4475417, CTL 1054MM

1шт.

16

4475416

Bulk Hose

CUT TO LENGTH

1шт.

17

4475418

Sleeve

1шт.

18

WZ2141223

Hose Clamp

4шт.

20

6020758

Cover

1шт.

21

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

Washer

12M7065 NLA

7шт.

22

4468859

Grille

1шт.

23

21M7293

Screw

M4 X 16 SUB FOR M470416

4шт.

24

12M7064

Lock Washer

5 mm

4шт.

25

14M7139

Nut

M4

4шт.

26

4605002

Air Duct

SUB FOR 7041869, USE WITH 4609550, 7044953

1шт.

28

4609550

Air Duct

SUB FOR 7041871, USE WITH 4605002, 7044953

1шт.

30

9759135

Bracket

1шт.

31

4477254

Isolator

1шт.
