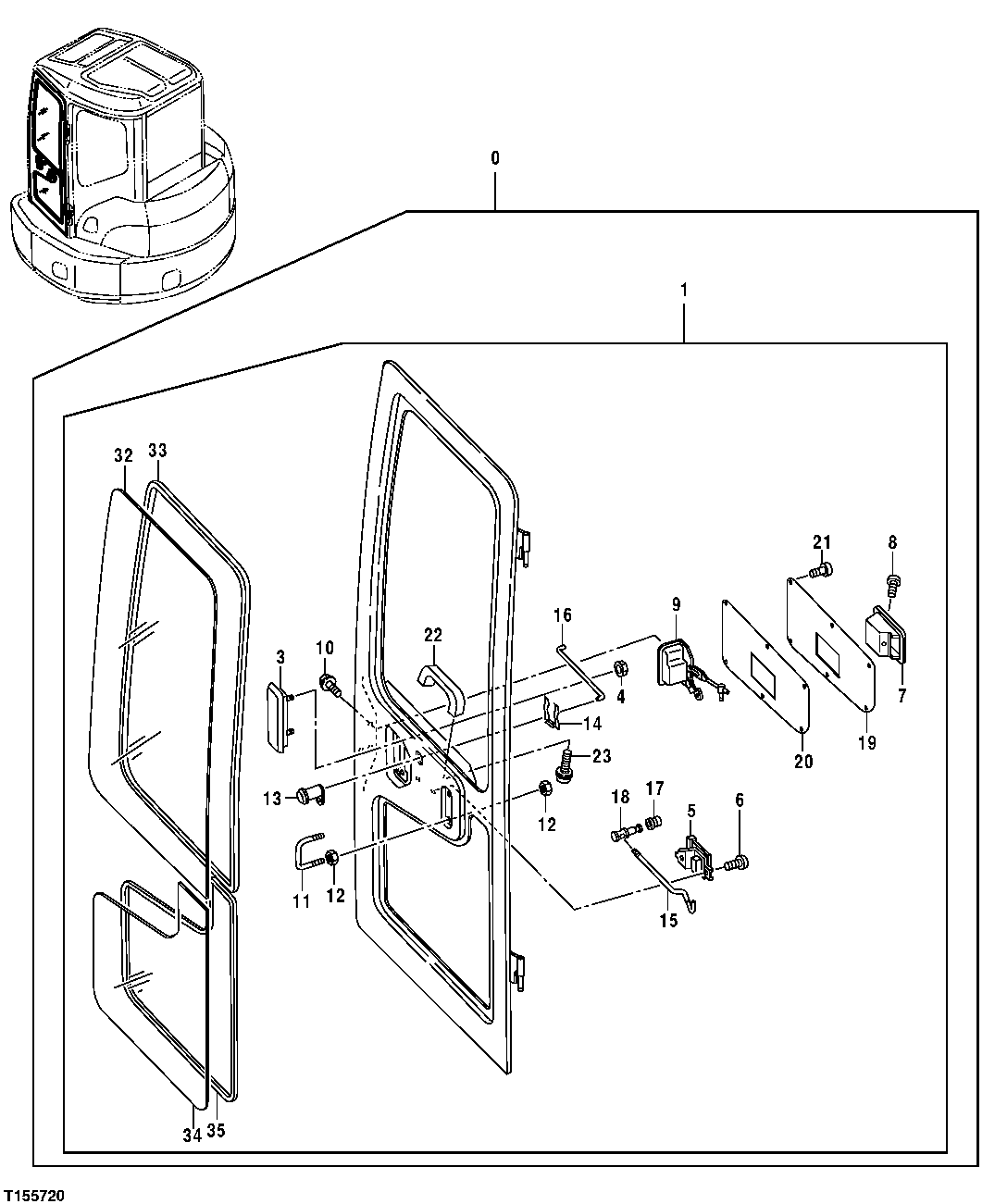

Запчасти John Deere 5C ZTS 80 - Cab Components (Door) 1813 Body Sides, Doors, Shields And Glazing

0

9203820

Cab

SUB FOR 4454007, CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

1

Door

UNITS BUILT BEFORE DECEMBER 2 003 ORDER 4628492, 4483432 NLA

1шт.

4628492

Door

UNITS BUILT AFTER NOVEMBER 2003

1шт.

3

4348015

Handle

1шт.

4

4424765

Nut

2шт.

5

4348016

Handle

1шт.

6

4424766

Cap Screw

2шт.

7

4348017

Cover

1шт.

8

4424767

Bolt

1шт.

9

4348014

Latch

1шт.

10

19M9045

Screw

M6 X 16 SUB FOR 4380970

3шт.

11

4424729

Striker

1шт.

12

14M7274

Nut

M10 SUB FOR 4424763

2шт.

13

Lock

4424730 NLA

1шт.

4628484

Lock

UNITS BUILT AFTER NOVEMBER 2003 ALSO ORDER F YD00007042, SUB FOR 4424730, USE WITH 4628492

1шт.

14

4383636

Retainer

UNITS BUILT BEFORE DECEM BER 2003 USE WITH 4483432

1шт.

4341432

Clip

UNITS BUILT AFTER NOVEMB ER 2003 USE WITH 4628492

1шт.

15

4424731

Rod

1шт.

16

4424732

Rod

UNITS BUILT BEFORE DECEM BER 2003 USE WITH 4483432

1шт.

4625581

Rod

UNITS BUILT AFTER NOVEMB ER 2003 USE WITH 4628492

1шт.

17

4385902

Holder

1шт.

18

4348028

Pin

1шт.

19

4483435

Cover

1шт.

20

4424734

Isolator

1шт.

21

4383700

Bolt

6шт.

22

4348027

Handle

1шт.

23

19M8425

Cap Screw

M6 X 16 SUB FOR 4380957, J 090616, J020616 OR TH111223

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

32

4424678

Windowpane

1шт.

33

4424755

Isolator

1шт.

34

4424679

Windowpane

1шт.

35

4424756

Weatherstrip

1шт.

36

4625582

Holder

UNITS BUILT AFTER NOVEMB ER 2003, NOT ILLUSTRATED

1шт.
