72 - CONSOLE WRIST REST (RIGHT AND LEFT)

Запчасти John Deere 5C ZTS 72 - CONSOLE WRIST REST (RIGHT AND LEFT) 1810 Operator Enclosure

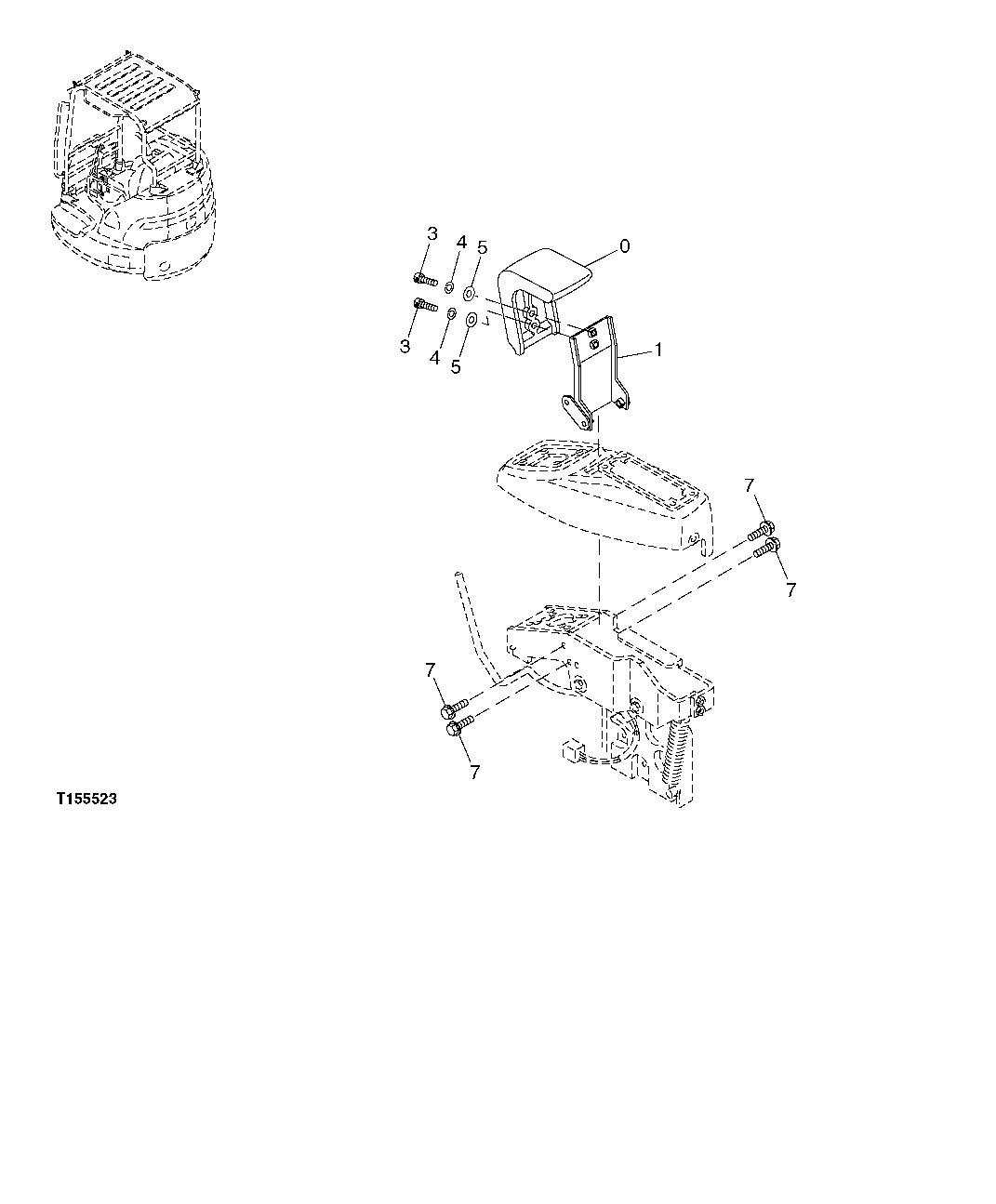

Схема запчастей John Deere 5C ZTS - 72 - CONSOLE WRIST REST (RIGHT AND LEFT) 1810 Operator Enclosure
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

2048027

Cushion

1шт.

1

8086911

Bracket

1шт.

3

19M7881

Screw

M8 X 20

2шт.

4

12M7056

Lock Washer

8 mm

2шт.

5

12M7036

Lock Plate

2шт.

7

19M8425

Cap Screw

M6 X 16 (SUB FOR J090616)

4шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.
