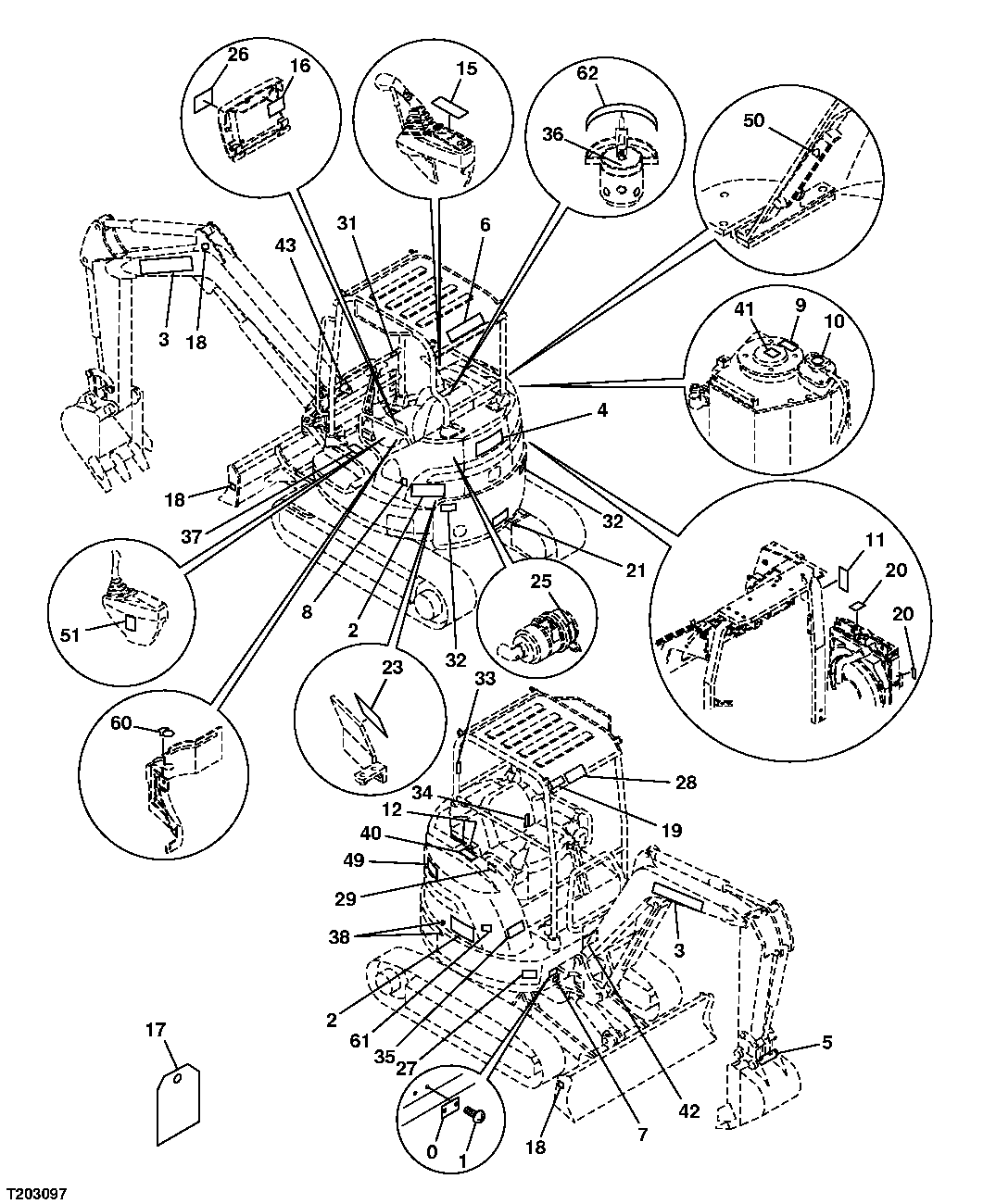

Запчасти John Deere 5C ZTS 57 - Labels and Decals (Canopy) 1322 DECALS & TRADEMARKS

0

Serial Number Plate

1шт.

1

M492964

Cap Screw

2шт.

2

2049912

Label

(SUB FOR T191137)(RH) (MODEL)

1шт.

2049913

Label

(SUB FOR T191136)(LH) (MODEL)

1шт.

3

T183799

Label

DEERE

2шт.

4

T187389

Label

DEERE

1шт.

5

T208596

Safety Sign

WARNING (QUICK ATTACH) (SUB FOR T185672)

1шт.

6

2049193

Label

PERIODIC MAINTENANCE

1шт.

7

4439185

Label

LUBRICATION

1шт.

8

4431898

Label

DIESEL FUEL

1шт.

9

T101942

Label

HYDRAULIC OIL ONLY

1шт.

10

4431916

Label

HYDRAULIC RESERVOIR OIL CAP

1шт.

11

3088018

Label

COOLING SYSTEM

1шт.

12

4334011

Label

THROTTLE

1шт.

15

4486758

Label

KEY SWITCH

1шт.

16

4486759

Label

FUSE LOCATION DIAGRAM

1шт.

17

3059274

Label

INSPECTION

1шт.

18

4357593

Label

LIFT HOOK LOCATIONS

3шт.

19

T146667

Safety Sign

DANGER (ELECTROCUTION)

1шт.

20

4604980

Label

CAUTION (PRESSURIZED)

2шт.

21

2044813

Label

STAY OUT

1шт.

23

4433590

Label

CAUTION OF BURN - MUFFLER

1шт.

25

4450833

Label

AIR CLEANER

1шт.

26

T159887

Safety Sign

CAUTION (READ OPERATOR'S MANUAL)

1шт.

27

4422323

Label

ATTACHMENT RETURN FLOW SELECTOR

1шт.

28

3090053

Label

LIFT CAPACITY

1шт.

29

4439188

Label

BLADE OPERATION

1шт.

31

4369061

Label

WARNING (BOOM SWING)

1шт.

32

JD5909

Reflector

(RED) (SUB FOR 4386712)

2шт.

33

3097857

Label

TOPS CERTIFICATION

1шт.

34

T146097

Label

WARNING (SEAT BELT) (SUB FOR 3088058)

1шт.

35

JD5770

Label

(LEAPING DEER)

1шт.

36

4605065

Label

ENGINE STOP - PATTERN C HANGE (SUB FOR 4450821)

1шт.

37

H21259

Mat

ANTI-SKID

6шт.

38

4478619

Label

ARROW - ALIGNMENT

2шт.

40

T201519

Label

OPERATOR PATTERN (SUB FOR 4459646)

1шт.

41

4430516

Label

HYDRAULIC RESERVOIR OIL CAP

1шт.

42

3090482

Label

WARNING (BOOM SWING)

1шт.

43

4604993

Label

ATTACHMENT PEDAL

1шт.

49

4487454

Label

HOOD OPEN - INSTRUCTIONS

1шт.

50

4487456

Label

ARROW - DISENGAGE

1шт.

51

4295807

Label

UNEXPECTED START

1шт.

60

4425953

Label

HEATER FAN SPEED

1шт.

61

4487488

Label

CONTROL LEVER PATTERN

1шт.

62

4482701

Label

PATTERN INDICATOR

1шт.
