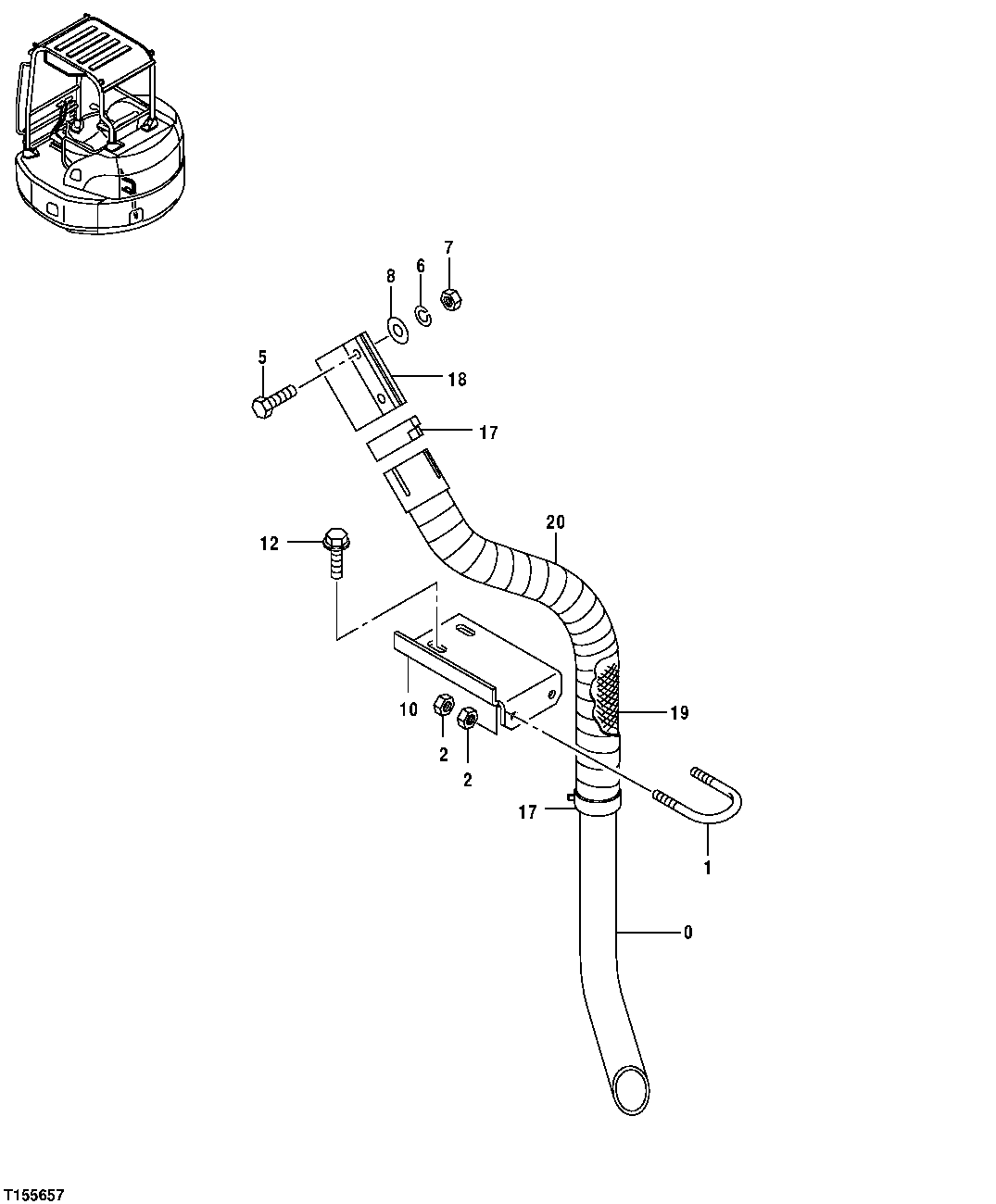

Запчасти John Deere 554 51 - Exhaust Pipe 0530 EXTERNAL EXHAUST SYSTEM

0

3094313

Line

1шт.

1

4279326

U-Bolt

1шт.

2

14M7273

Nut

M8 (SUB FOR J231108)

4шт.

5

19M7550

Cap Screw

M10 X 35 (SUB FOR J971035)

2шт.

6

12M7066

Lock Washer

10 mm (SUB FOR J252210)

2шт.

7

14M7274

Nut

M10 (SUB FOR J231210)

2шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR J253110 OR A590110)

2шт.

10

8088280

Bracket

1шт.

12

19M7402

Cap Screw

M10 X 25 (SUB FOR J051025)

2шт.

24M7346

Washer

11 X 20 X 2 mm (SUB FOR 24M7096)

2шт.

12M7066

Lock Washer

10 mm

2шт.

17

4399511

Clamp

2шт.

18

4278931

Clamp

1шт.

19

4399512

Hose Guard

1шт.

20

4414610

Tape

(SUB FOR 4399513)

1шт.
