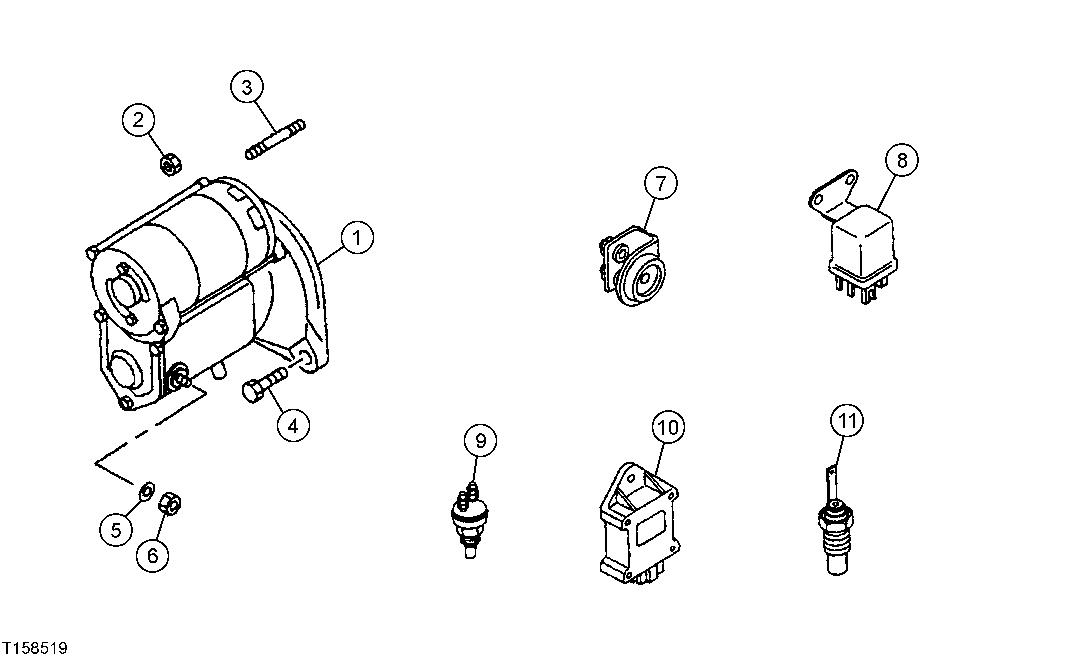

Запчасти John Deere 554 41 - Starter Motor And Electrical Control Parts 0422 Starting Motor And Fastenings

1

8971128652

Starter Motor

12 v 2.0 kW, Additional Comp onents Listed On Another Page

1шт.

2

0911801120

Nut

M12 FLANGE SUB FOR AT259943 OR 0911501120

1шт.

3

0440112350

Stud

SUB FOR AT260115 OR 9944112350

1шт.

4

0281812300

Bolt

SUB FOR AT259937, M12 X 30 FLANGE

1шт.

5

1099851770

Washer

SUB FOR 9091505080 OR AT255018, ID=8 MM

1шт.

6

14M7151

Nut

M8 SUB FOR AT191643, 90 91115080 OR AT260108, M8

1шт.

7

8941739480

Resistor

1шт.

8

8944001061

Relay

SUB FOR AT261424 OR AT254854

1шт.

9

8941323310

Switch

SUB FOR AT254846

1шт.

10

8970405021

Timer

SUB FOR 8970405020

1шт.

11

8970633010

Coolant Temperature Sensor

Glow Plug SUB FOR AT254910

1шт.
