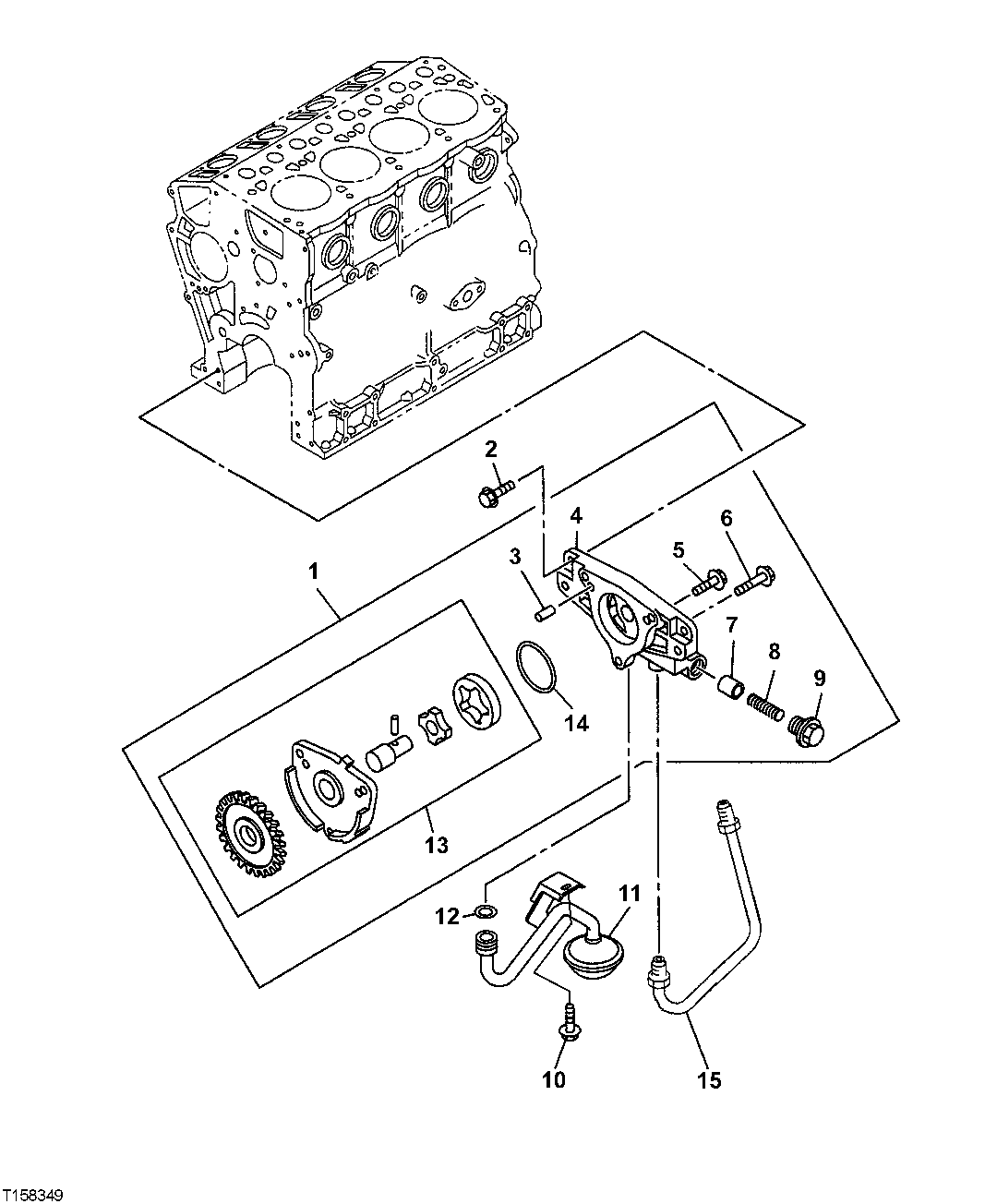

Запчасти John Deere 554 31 - Engine Oil Pump And Oil Pump Intake 0407 Engine Oiling System

1

8970488098

Oil Pump

SUB FOR 8970488095 OR 8970488097

1шт.

2

0280808300

Bolt

SUB FOR AT259926, M8 X 30 FLANGE

4шт.

3

9098780940

Dowel Pin

SUB FOR AT255013

2шт.

4

Housing

1шт.

5

0282806300

Bolt

SUB FOR AT191642 OR AT 259921, M6 X 30 FLANGE

2шт.

6

0280506500

Bolt

SUB FOR 0280806500 OR A T259923, M6 X 50 FLANGE

1шт.

7

8942355671

Pressure Relief Valve

SUB FOR AT254852

1шт.

8

8971133320

Spring

SUB FOR AT254930

1шт.

9

8941046150

Fitting Plug

SUB FOR AT254839

1шт.

10

0280508160

Bolt

SUB FOR AT259924 OR 028 0808160, M8 X 16 FLANGE

1шт.

11

8971172990

Oil Pump Intake

SUB FOR AT254935

1шт.

12

AT254815

O-Ring

Also Included In Engine Gasket Set

1шт.

13

8970448133

Oil Pump

SUB FOR AT254895, T=15 Rotor

1шт.

14

8971096790

O-Ring

SUB FOR AT254929 Also Inc luded In Engine Gasket Set

1шт.

15

8970454000

Oil Line

SUB FOR AT254897

1шт.
