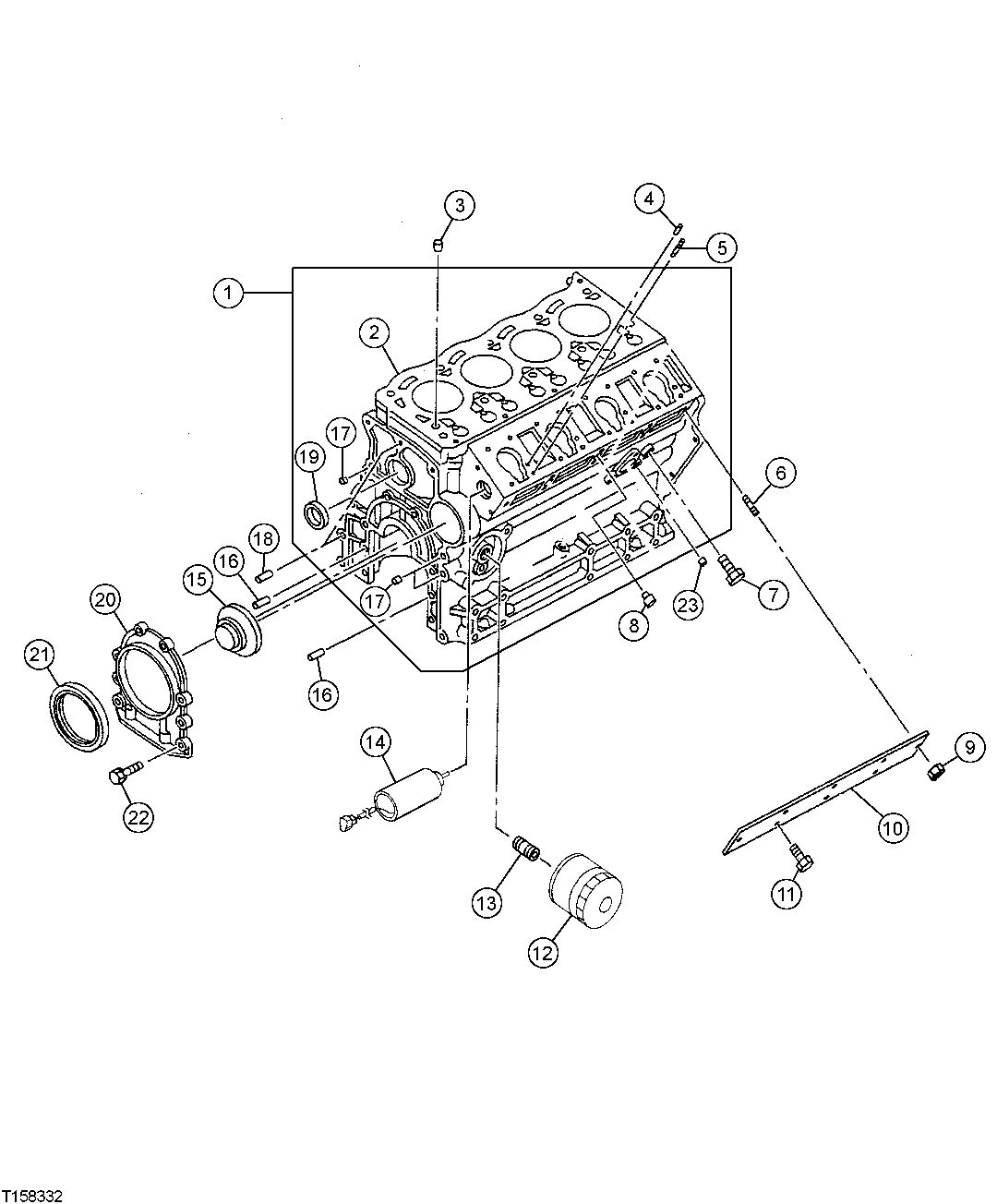

Запчасти John Deere 554 28 - CYLINDER BLOCK AND OIL FILTER 0404 Cylinder Block

1

8972178031

Manifold

1шт.

2

Cylinder Block

1шт.

3

8942170020

Dowel Pin

(SUB FOR AT254849, 894 2008190 OR 8972310071)

2шт.

4

9098785320

Dowel Pin

(SUB FOR AT255029)OD=6 MM, L=24 MM

4шт.

5

AT254807

Stud

M8 X 36

8шт.

6

0410106160

Stud

(SUB FOR 8972621471)M6 X 16, L=25 MM

1шт.

8972621481

Stud

M6 X 19, L=27MM

1шт.

7

AT254824

Fitting Plug

1шт.

8

8970394953

Pin

(SUB FOR AT254887)

2шт.

9

8971378360

Nut

(SUB FOR AT260063)

2шт.

10

8971189892

Cover

1шт.

11

0280806140

Bolt

(SUB FOR AT259917)M6 X 14 FLANGE

4шт.

0280806200

Cap Screw

(SUB FOR AT259919)M6 X 20 FLANGE

2шт.

12

4454526

Filter Element

(SUB FOR AT192163)(SUB FOR AT256024)

1шт.

13

8943255950

Threaded Nipple

(SUB FOR AT254860)

1шт.

14

8973295680

Solenoid

(SUB FOR AT254979)

1шт.

15

8970471421

Plug

(SUB FOR AT254903)

1шт.

16

9098780940

Dowel Pin

(SUB FOR AT255013)OD=6 MM, L=16 MM

6шт.

17

5096000130

Seal

0D=12.3 MM, (SUB FOR AT254823)

3шт.

18

9081508160

Pin Fastener

(SUB FOR AT255014)

2шт.

19

8942298530

Plug

(SUB FOR AT254851)D=35 MM, H=10 MM

1шт.

20

8972310302

Retainer

1шт.

21

AT254827

Seal

ALSO INCLUDED IN ENGINE GASKET SET

1шт.

22

0280806200

Cap Screw

(SUB FOR AT259919)M6 X 20 FLANGE

8шт.

23

5096050192

Pipe Plug

(PT 1/8)

2шт.
