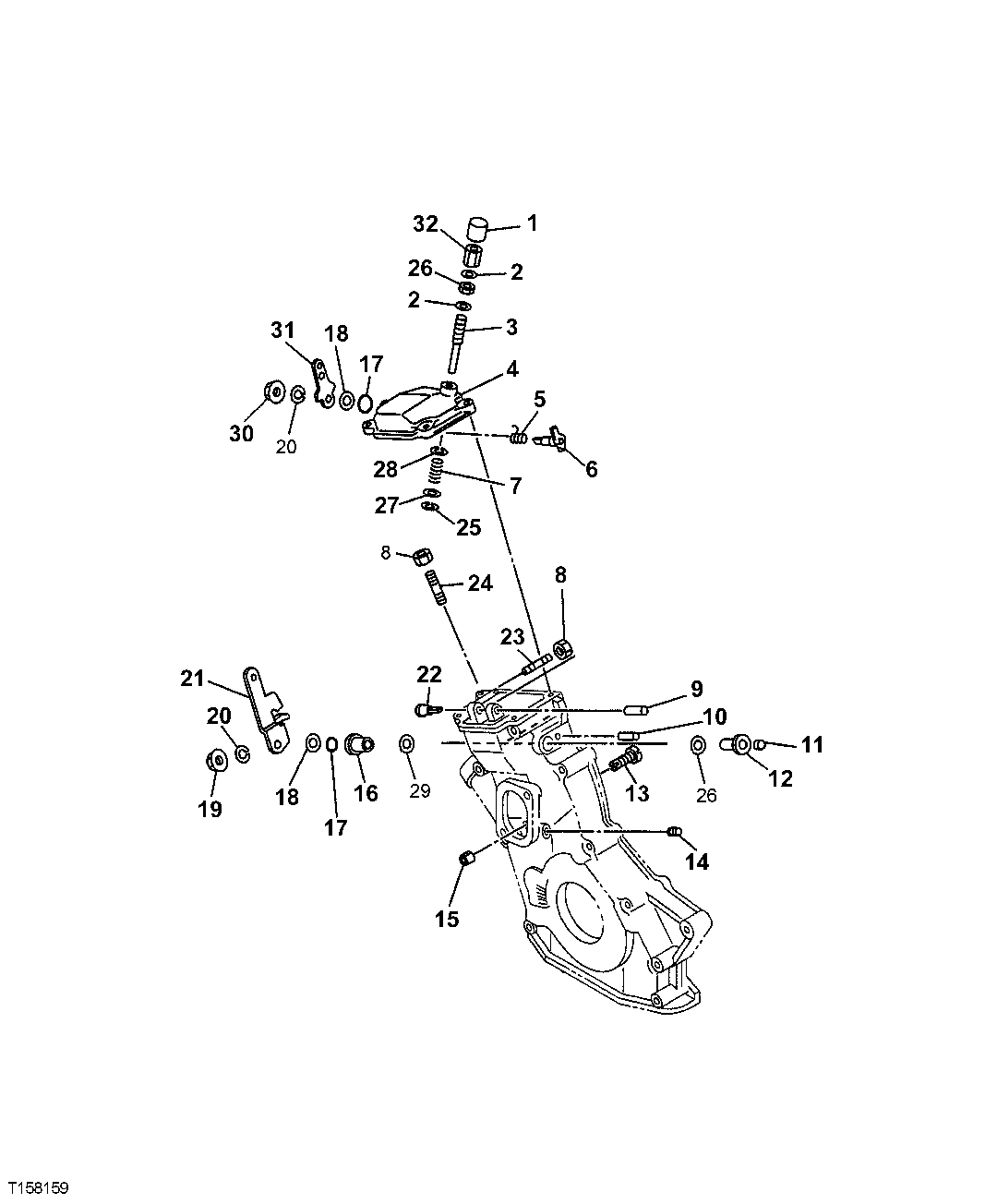

Запчасти John Deere 554 24 - Timing Chain Linkage 0402 Camshaft And Valve Actuating Means

1

5156690021

Cap

SUB FOR AT254836

1шт.

2

5095031321

Packing

SUB FOR AT254821, ALSO INC LUDED IN ENGINE GASKET SET

2шт.

3

8970164410

Set Screw

SUB FOR AT254873

1шт.

4

8971617641

Cover

SUB FOR AT254968 OR 8971617640

1шт.

5

8970395461

Spring

SUB FOR AT254889

1шт.

6

8970164460

Shaft

SUB FOR AT254874

1шт.

7

8972447701

Spring

SUB FOR 8972447700

1шт.

8

14M7194

Nut

M6 SUB FOR AT255017 AND 9091114060, M6

3шт.

9

9081608500

Dowel Pin

SUB FOR AT255015

1шт.

10

9081604360

Dowel Pin

SUB FOR AT255010

1шт.

11

8944546150

Plug

SUB FOR AT254870

1шт.

12

8972628170

Bushing

1шт.

13

8970395842

Set Screw

SUB FOR AT254890 OR 8970395841

1шт.

14

5096050192

Pipe Plug

PT 1/8

1шт.

15

9091105060

Nut

SUB FOR AT191640, M6, SUB FOR AT260106

1шт.

16

8972628830

Bushing

1шт.

17

9099206360

Gasket

NLA ID=9.8 MM, ALSO INCLUDED IN E NGINE GASKET SET, SUB FOR AT254813

2шт.

18

AT254822

Thrust Washer

2шт.

19

14M7273

Nut

M8 SUB FOR AT260107 OR 9091105080, M8

1шт.

20

1099851770

Washer

SUB FOR 9091505080, ID =8 MM, SUB FOR AT255018

2шт.

21

8970493281

Lever

SUB FOR AT254908

1шт.

22

5122110210

Package Of Parts

SUB FOR AT254837

1шт.

23

AT254818

Set Screw

L=28 MM

1шт.

24

8943176381

Set Screw

SUB FOR AT254859, L=38 MM

1шт.

25

0918055030

Snap Ring

SUB FOR 9091854030 OR AT255022

1шт.

26

9095651160

Gasket

1шт.

27

0916105040

Washer

SUB FOR AT255019 OR 9091605040, ID=4 MM

1шт.

28

9091607040

Washer

SUB FOR AT255020, ID=4 MM

1шт.

29

9095651140

Gasket

1шт.

30

14M7273

Nut

M8 SUB FOR AT260107 OR 9091105080, M8

1шт.

31

8973034540

Lever

1шт.

32

AT254820

Nut

1шт.
