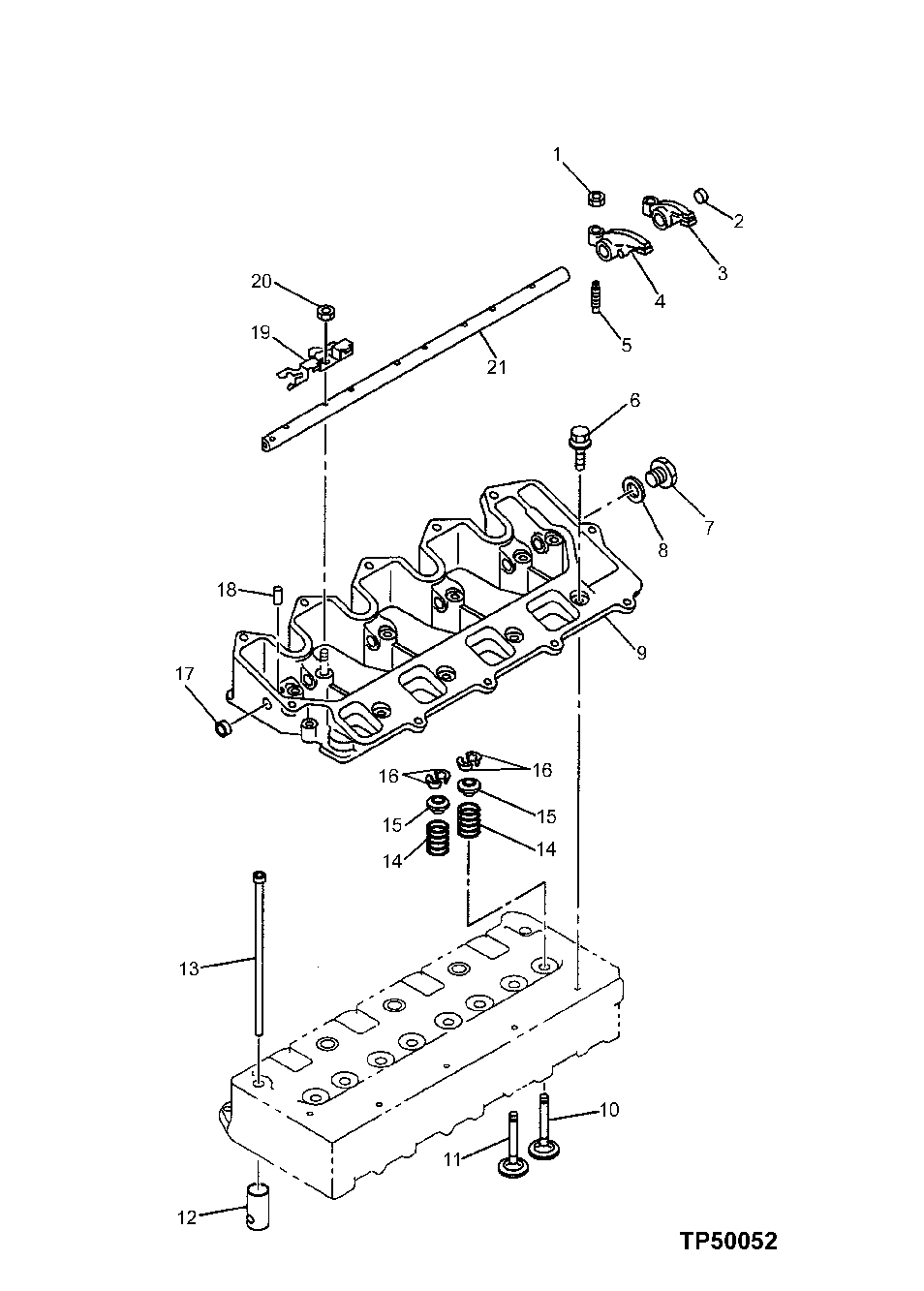

Запчасти John Deere 554 20 - Rocker Arm Shaft, Push Rods, Rocker Arms And Valves 0402 Camshaft And Valve Actuating Means

1

14M7194

Nut

M6 SUB FOR AT255017, 9091114060 OR AT260109

8шт.

2

8972334290

Plug

1шт.

3

8972125200

Rocker Arm

SUB FOR AT254993 Exhaust

4шт.

4

8972125180

Rocker Arm

SUB FOR AT254992 Inlet

4шт.

5

8970104850

Set Screw

SUB FOR AT254872

8шт.

6

0280806250

Bolt

SUB FOR AT259920, M6 X 25 FLANGE

5шт.

0280506500

Bolt

SUB FOR 0280806500 OR A T259923, M6 X 50 FLANGE

5шт.

7

9992023140

Pipe Plug

SUB FOR AT255036, M14 X 9

1шт.

8

8941583280

Gasket

SUB FOR AT261422, ID=14.2 mm, OD=20.0 mm Also Included In Gasket Set (Engine)

1шт.

9

8980488890

Bracket

SUB FOR 8971952674 OR 8971952673

1шт.

10

8970454103

Exhaust Valve

Exhaust

4шт.

11

8971021231

Intake Valve

Inlet

4шт.

12

8970346300

Tappet

SUB FOR 8971243690 AND AT254940

8шт.

13

8982730840

Rod

SUB FOR 8970695753

8шт.

14

8970346291

Compression Spring

SUB FOR AT254880

8шт.

15

8942510311

Rotator

SUB FOR AT254855

8шт.

16

8942395010

Retainer

SUB FOR AT254853

16шт.

17

5096000130

Seal

SUB FOR AT254823, OD=1 2 MM, SUB FOR AT255032

1шт.

18

9096785100

Dowel Pin

SUB FOR AT255011

1шт.

19

8970706982

Partition

SUB FOR AT254915

4шт.

20

8971378360

Nut

SUB FOR AT260063, M6 FLANGE

6шт.

21

8971186561

Rocker Arm Shaft

SUB FOR AT254938

1шт.
