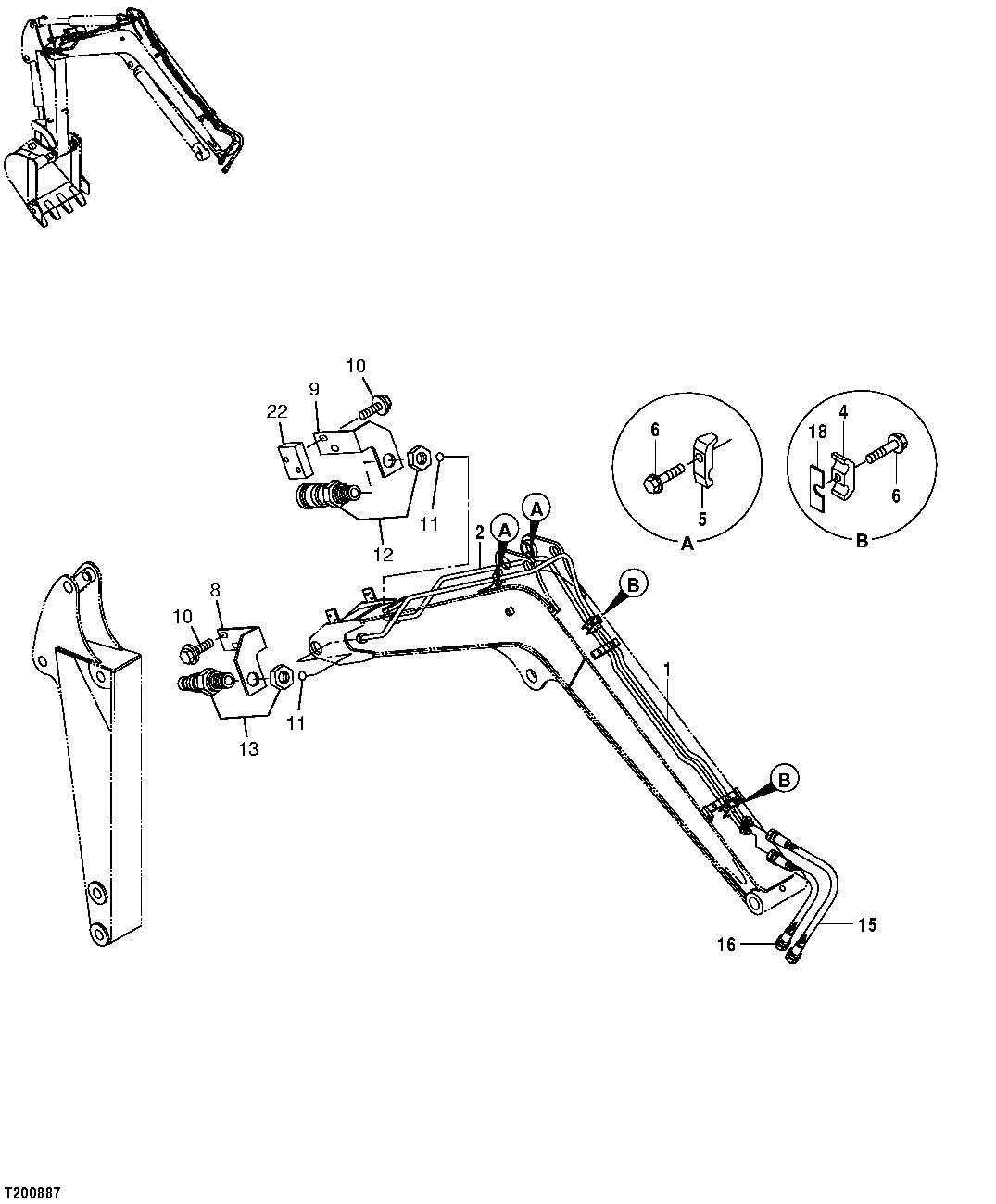

Запчасти John Deere 554 192 - Auxiliary Hydraulic Lines (Boom) 3360 HYDRAULIC SYSTEM

1

8090575

Line

1шт.

2

8090576

Line

1шт.

4

4189858

Clamp

SUB FOR 4354753

2шт.

5

4354754

Block Clamp

2шт.

6

19M7572

Cap Screw

M10 X 45 SUB FOR J051045

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

8

3097087

Bracket

1шт.

9

3097100

Bracket

1шт.

10

19M7402

Cap Screw

M10 X 25 SUB FOR J051025

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

11

T77858

O-Ring

SUB FOR 4187308

2шт.

12

FYD00007700

Hydr. Quick Coupler Socket

SUB FOR 4486229 Hydraul ic Quick Connect Female

1шт.

T78701

Strap

1шт.

13

KV13885

Hyd. Quick-Connect Coupler

NLA, ORDER AT312877, SUB FOR 4486230 Male

1шт.

AT312877

Hyd. Quick-Connect Coupler

Male Connect Under Pressure

1шт.

T78707

Nut

1шт.

15

4426459

Hydraulic Hose

1шт.

16

4426461

Hydraulic Hose

1шт.

18

4405907

Shim

2шт.
