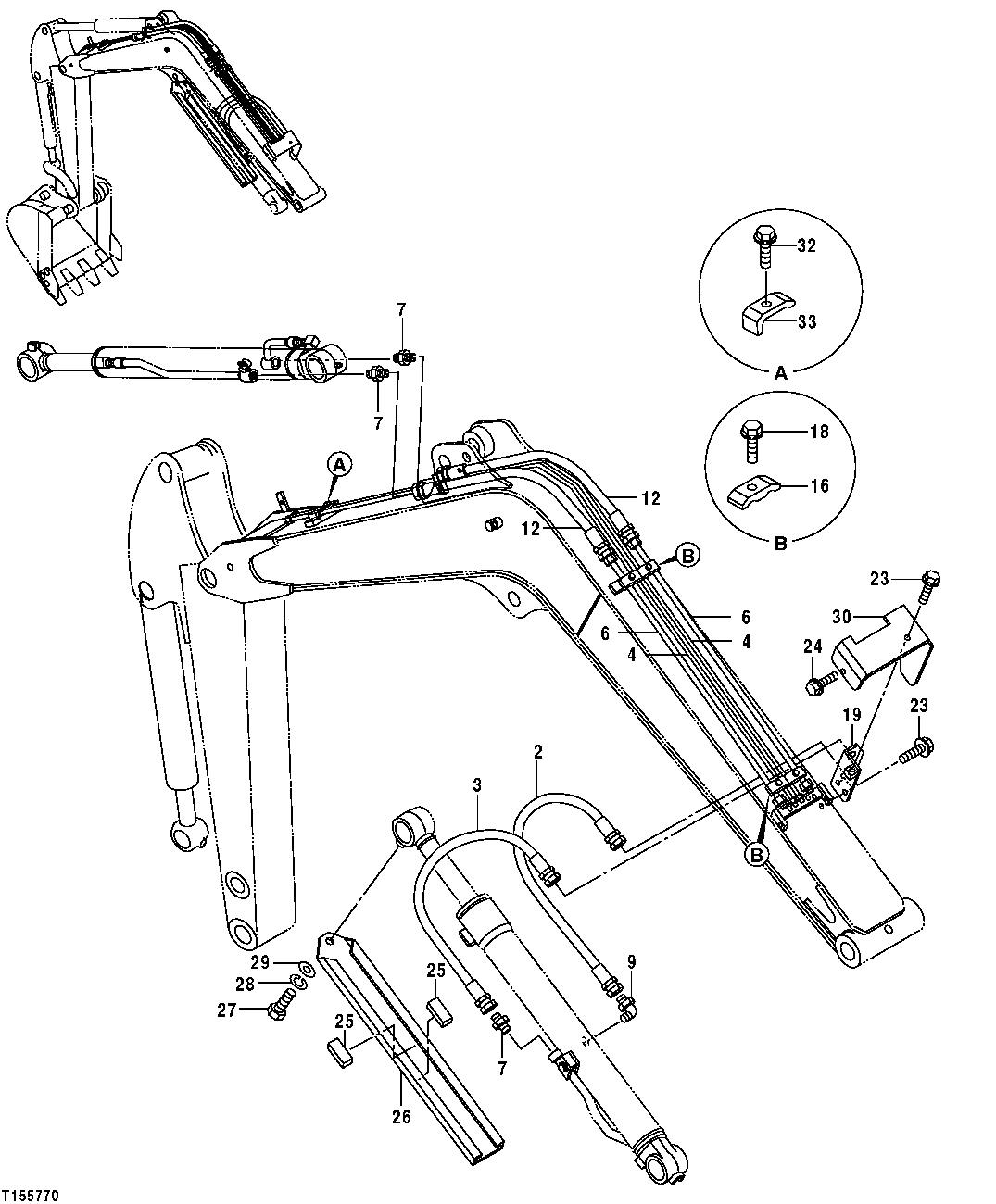

Запчасти John Deere 554 190 - Front Hydraulic Lines (Boom and Arm) 3360 HYDRAULIC SYSTEM

2

4426422

Hydraulic Hose

1шт.

3

4479832

Hydraulic Hose

1шт.

4

8077348

Oil Line

2шт.

6

9756429

Line

2шт.

7

4042032

Adapter Fitting

3шт.

4506418

O-Ring

3шт.

9

4037760

Elbow Fitting

1шт.

4506418

O-Ring

1шт.

12

4456401

Hose

2шт.

16

4202559

Clamp

SUB FOR 4355009

4шт.

18

19M7572

Cap Screw

M10 X 45 SUB FOR J051045

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

19

9751363

Bracket

1шт.

23

19M7866

Screw

M8 X 20 SUB FOR J050820, AL ONG WITH 24M7036 AND 12M7065

3шт.

24M7036

Washer

9 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

24

19M7932

Cap Screw

M8 X 16 SUB FOR AT255979

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

25

4352044

Isolator

2шт.

26

3080415

Guard

1шт.

27

19M7872

Cap Screw

M12 X 25 SUB FOR J971225

1шт.

28

12M7058

Lock Washer

12 mm SUB FOR 12M7067, SUB FOR J252212

1шт.

29

24M7047

Washer

13 X 24 X 2.500 mm SUB FOR J254012

1шт.

30

4452599

Cover

1шт.

32

19M7358

Cap Screw

M10 X 40 SUB FOR THJ051040

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

33

4138227

Clamp

SUB FOR 4331315

2шт.
