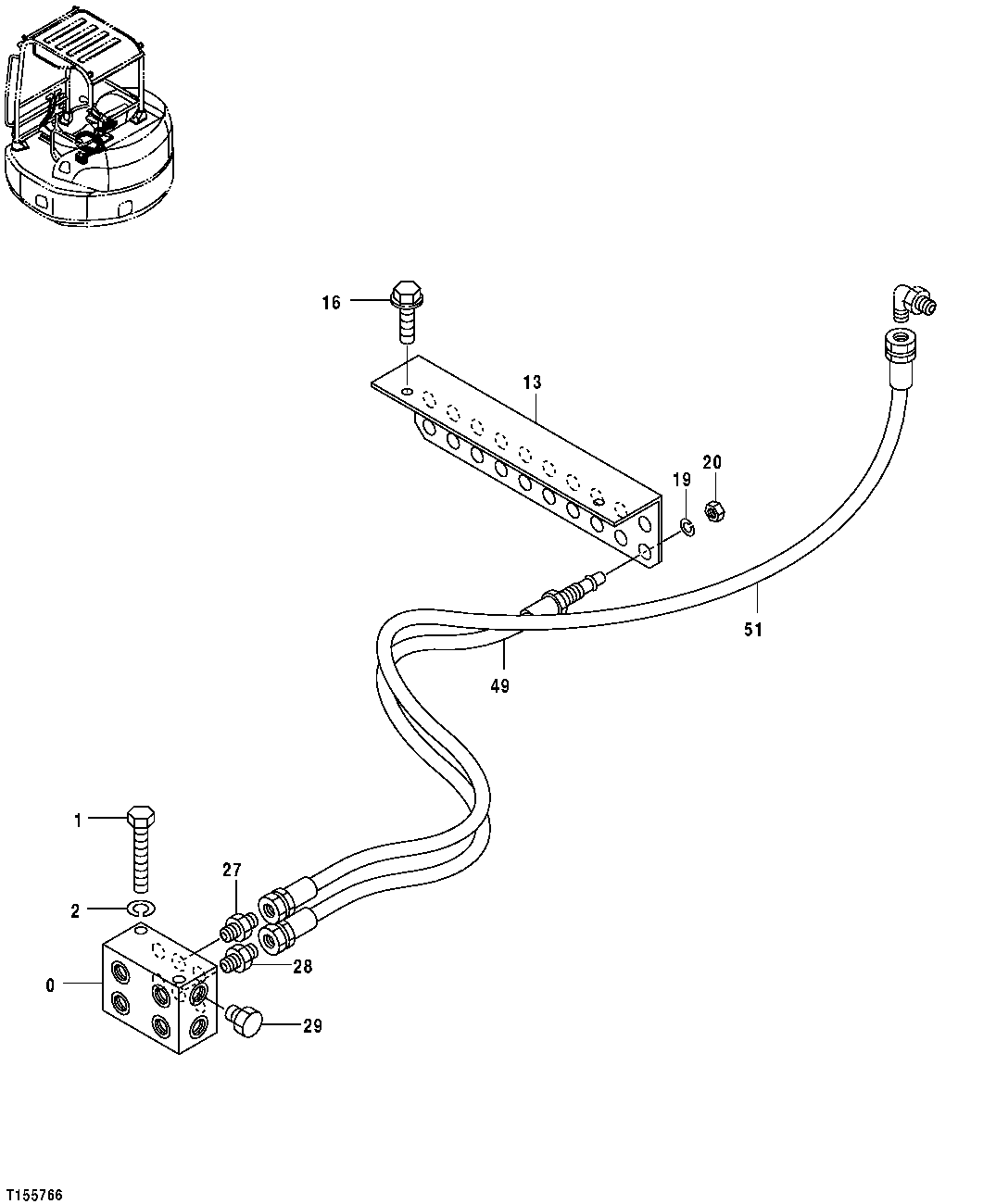

Запчасти John Deere 554 186 - PILOT LINES (MANIFOLD) 3360 HYDRAULIC SYSTEM

0

3094178

Manifold

1шт.

1

19M8539

Cap Screw

M8 X 90 SUB FOR J960890 OR 19M7691

2шт.

2

Washer

12M7065 NLA

2шт.

13

9758878

Bracket

1шт.

16

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

19

12M7058

Lock Washer

12 mm SUB FOR 12M7067; SUB FOR J252212

1шт.

20

14M7275

Nut

M12

1шт.

27

4368206

Fitting

1шт.

4297380

O-Ring

SUB FOR 4674883, 4509180 OR 4622346

1шт.

28

4042031

Adapter Fitting

1шт.

4297380

O-Ring

SUB FOR 4674883; 4509180 OR 4622346

1шт.

29

A885002

Plug

2шт.

M800650

Packing

SUB FOR 957366

2шт.

49

4474940

Hydraulic Hose

1шт.

51

4481668

Hydraulic Hose

1шт.
